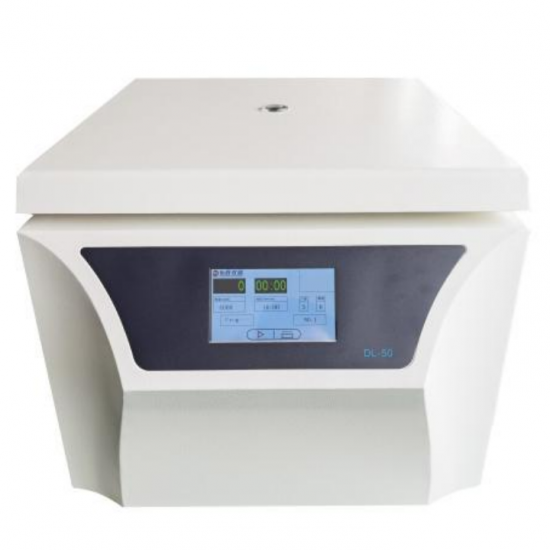

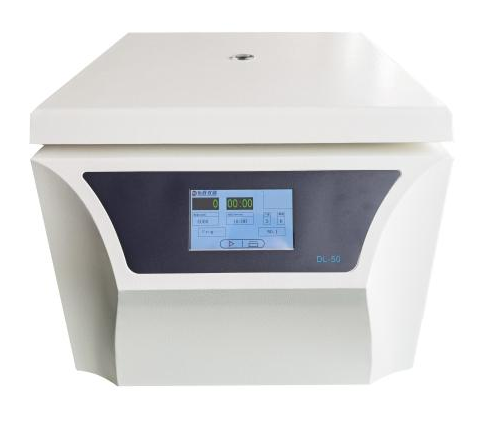

Multi-segment Programmable Table Type Low Speed Centrifuge Machine Suitable for The Separation of Biological And Chemical

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-TDD5K
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Multi-segment Programmable Table Type Low Speed Centrifuge Machine Suitable for The Separation of Biological And Chemical

Suitable for the separation of biological, chemical, pharmaceutical, biological products and other different liquids.

Instrument characteristics

1.5-inch HD touch screen, easy to operate, intuitive display

2. Automatically identify 4 different rotors to eliminate security risks caused by user misoperation

3. 9 speed up, 10 speed down, effectively prevent secondary suspension, good centrifugal effect

4. 20 groups of programs can be stored and called by the standby user

5. Special air duct, 26-28℃ room temperature continuous operating temperature rise is less than 10℃

6. Ac variable frequency motor, high speed control accuracy

7. Unique two-level shock absorption, large capacity rotor running vibration is small, stable operation to increase the service life of the instrument

8. Equipped with overspeed, door protection, unbalanced protection and other protection to ensure human and machine safety

Techenical parameter

Model	TDD5K
Max speed	5500rmp/m
Max RCF	4390×g
Max capacity	4×500mL
Motor	Ac frequency conversion motor
Speed accuracy	±30r/min
Time range	Time of centrifuge：1min～99 min59sec Continuous centrifuge : Hold
Power supply	AC220±22V 50/60Hz 10A
Noise	≤60dB(A)
Dimension (L×D×H)	458mm×620mm×380mm
Weight	55kg

Rotor

No.	Rotor type	Capacity	Max speed	Max RCF	Test tube size(mm)
No.1	Angle rotor	12x10/15ml	5500rmp/m	4390×g	Φ16×83/Φ17×118
No.2	Horizontal rotor	4x2x100ml	4000rmp/m	2810×g	Φ37.5×123
		4x100ml	4000rmp/m	2810×g	Φ37.5×123
		4x2x50ml	4000rmp/m	2810×g	Φ29×107
		4x50ml	4000rmp/m	2810×g	Φ29×107
		4x8x15ml	4000rmp/m	2810×g	Φ17×118
		4x6x15ml			Φ17×118
		4x4x15ml			Φ17×118
No.3	Horizontal rotor	4x250ml	4200r/min	3500xg	Φ62×110
No.4	Horizontal rotor	4×500ml	4000r/min	3040×g	Φ80×137
No.5	Horizontal rotor	4×750ml	4000r/min	3180×g	Φ99×130
No.6	Horizontal rotor	4200r/min	3500×g	4×12×7/5ml	Φ13×110
No.7	Horizontal rotor	4200r/min	3500×g	4×18×7/5ml	Φ13×110
No.8	Horizontal rotor	4000r/min	3040×g	4×24×7/5ml	Φ13×110
No.9	Elisa plate	2×2×48 hole	4000r/m in	2000×g	Elisa plate
No.10	Elisa plate	2×2×96 hole	4200r/m in	2360×g	Elisa plate
No.11	Horizontal rotor	4x37x5ml	4000rmp /m	3200×g	Bleeder tube
No.12	Horizontal rotor	4x30x7ml	4000rmp /m	3200×g	Bleeder tube
