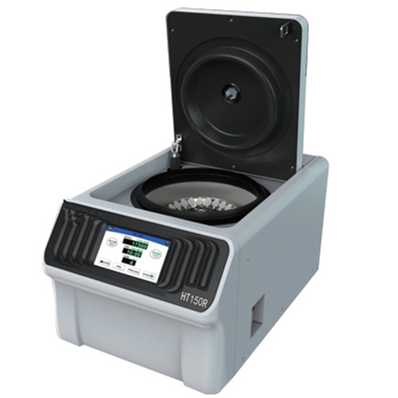

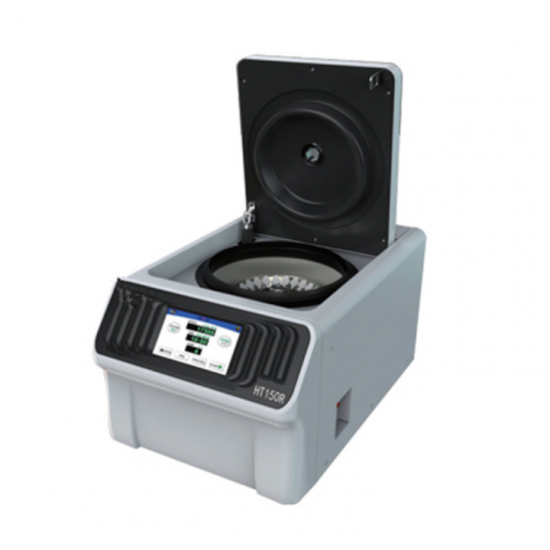

Desktop Lab Compact High Speed Refrigerated Centrifuge with Max Speed 15000rpm
Features:
1. The volume is only 300x460x260mm, which pushes the size of the high-speed desktop refrigerated centrifuge to a new height and greatly saves the experimental space;
2. 5-inch high sensitivity (can be directly operated by drum gloves), high-definition touch screen control, convenient operation tube and intuitive display;
3. The setting parameters and operating parameters are displayed on the same screen, which is intuitive and easy to understand;
4. Directly input the value of the setting parameter, which can quickly set the parameter, which is fast and convenient;
5. Centrifugal force and rotational speed can be switched automatically through the button, and the rotational speed or centrifugal force can be quickly set.
6. There are three modes of timing mode: start timing, tachometer or continuous timing.
7. Up to five sets of programs can be selected to realize stepped centrifugation, so that the experiment can be diversified and executed in multiple steps at one time;
8. 100 groups of programs can be set, and each group of programs can be easily named, which is more convenient to call and distinguish different experiments when using, and it is convenient to realize the repeatability of experiments;
9, 11 gears for acceleration, 12 gears for government speed; the 10th gear can be used to define the acceleration and deceleration time;
10. The sleep time of the instrument can be set according to the time interval of the experiment (the default value is 15 minutes); the cooling effect during the experiment is guaranteed, and the instrument enters the eye rest after the experiment, which is green and energy-saving, and increases the service life of the instrument;
11. Start the pre-cooling program with one key, and the pre-cooling parameters can be customized according to different rotors; and pre-cooling can be realized by appointment. Pre-cooling in advance, you can conduct experiments immediately after entering the laboratory, saving time;
12. The operation records and fault records are automatically saved, which can effectively check the operation of the instrument and the separation of each batch of samples;
13. AC variable frequency motor, no toner pollution, maintenance-free, long service life, accurate speed control (less than 10r/min).
Technical Parameters
Model |
TMAX-HT150R |
Control accuracy |
±1℃ |
Type | Tabletop |
Compressor set |
environment-friendly refrigerant(R404a) |
Max.speed |
15000rpm |
Noise |
≤65dB(A) |
Max.RCF |
21532xg |
Power supply |
AC220V +/-22V,50Hz 10A |
Max.capacity |
12x5ml |
Power consumption |
700W |
Speed accuracy |
±10rpm |
Dimensions (WxDxH) |
320x370x235mm |
Time range |
1min to 99min59s |
Package size (WxDxH) |
320x460x260mm |
Temp. Range |
-20℃~40℃ |
Net weight |
38kg |
HT150R ROTOR
NO. |
ITEM |
MAX.RPM (r/min) |
MAX.RCF (xg) |
CAPACITY |
No.1 |
Angle Rotor |
15000 |
21532 |
24×1.5/2.2ml |
No.2 |
Angle Rotor |
15000 |
15846 |
12×5ml |
No.3 |
Angle Rotor |
15000 |
15846 |
6×8×0.2mlPCR |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
