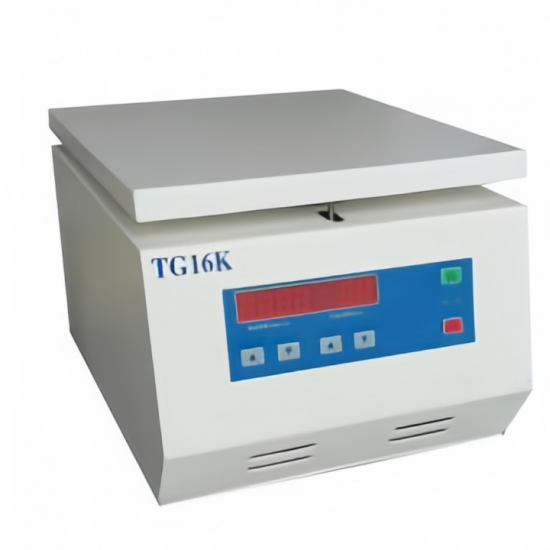

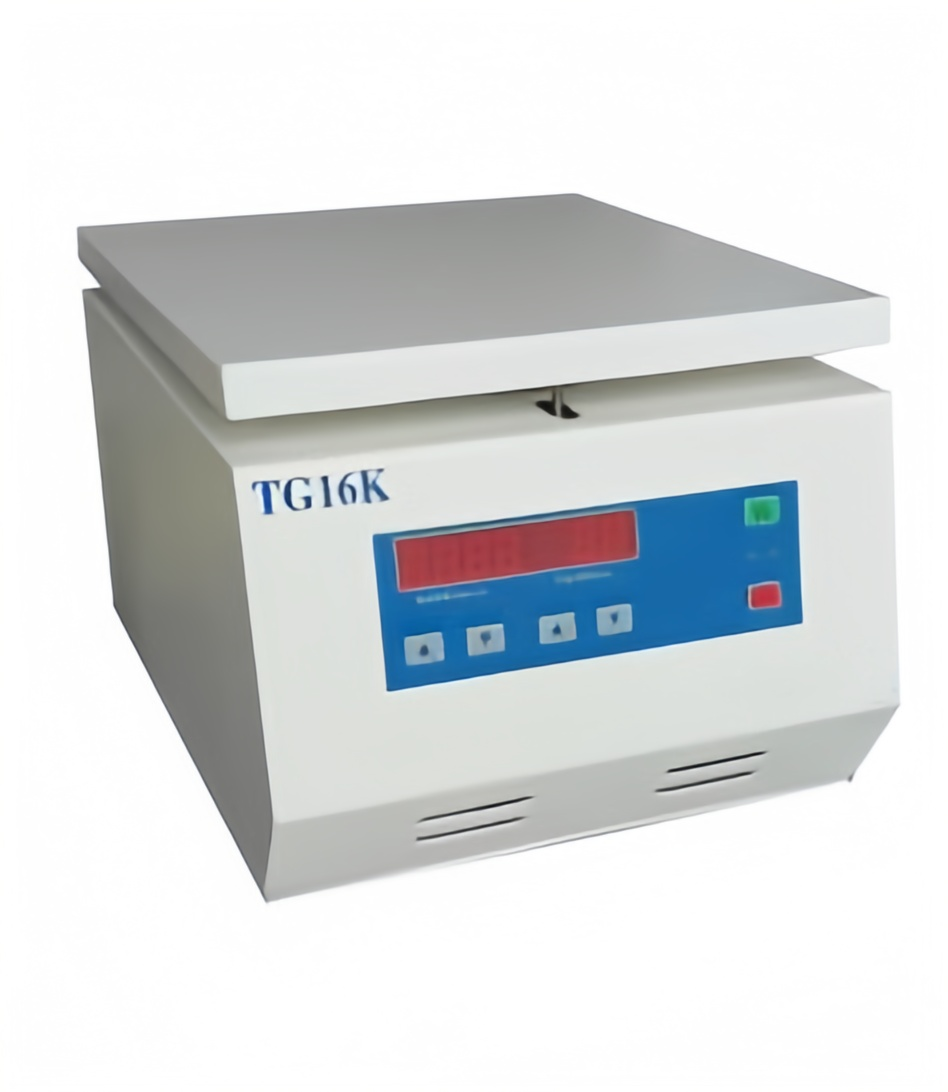

16000RPM Table Top High Speed Conventional Experimental Centrifuge with Rotor Number Identification Function
This series of centrifuges is a conventional experimental centrifuge, which is suitable for experiments with few samples, many steps, large centrifugal force and low temperature requirements. Widely used in biochemistry, genetic engineering, agricultural forestry science, food hygiene, hospital medicine and other scientific research education and production departments.Table top high speed centrifuge, suitable for rapid separation and synthesis of trace samples.
Product characteristics
1) Drive: Brushless DC motor drive, maintenance-free, large torque, fast lifting speed, special combination shock absorber to make the motor run smoothly.
2) Display: Intelligent control, touch panel, intuitive digital display, operating parameters can be automatically memorized, RCF can be set directly.
3) Fuselage: The fuselage adopts high-quality steel structure, stainless steel centrifugal chamber, durable, easy to clean.
4) Safety protection: Rotor number identification function, 10 speed up and down optional, with door cover self-locking, overspeed, imbalance and other multiple protection functions, equipped with electronic door lock to ensure safe and reliable operation process.
Performance parameter
Model number |
TG16K |
Maximum speed |
16000r/min |
Maximum relative centrifugal force |
17800×g |
Maximum capacity |
10×5ml |
No.1 angle rotor |
18×0.5ml(16000r/min)RFC:17800×g |
No.2 angle rotor |
12×1.5/2.0ml(16000r/min)RFC:17800×g |
No.3 angle rotor |
8×5ml(13000r/min)RFC:10000×g |
No.4 angle rotor |
10×5ml(13000r/min)RFC:10000×g |
Speed accuracy |
±30r/min |
Timing range |
0~99min |
Machine noise |
≤58dB |
Electric machine |
Brushless DC motor, microcomputer control |
Power source |
AC 220V 50Hz 8A |
Overall dimension |
330×280×215mm |
Weight |
15kg |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
