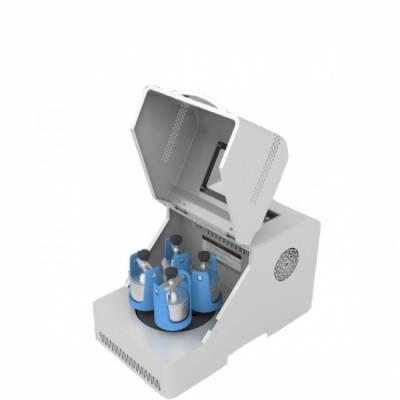

Planetary Ball Mill Machine for Powder Milling

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-DS
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
20 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Planetary Ball Mill Machine for Powder Milling

1. Frequency conversion control

Ideal speed can be set according to the experimental requirements, high speed accuracy, frequency converter with undervoltage, over current, overload protection, optional intelligent panel, easy operation.

2. Planetary gear

Integral casting molding main plate, with manual anti-loose staring device (optional self-locking type), delicate and beautiful; Stable speed, high efficiency and good safety.

3. Cooling fan hole

The equipment runs at high speed, and the temperature inside the wall of the ball mill is effectively controlled by designing the reasonable layout of fan holes, so as to protect the normal ball grinding of materials and ensure the stability of the equipment.

4. Pneumatic brace

Constant support force, moderate resistance, easy to operate, safe.

B. The characteristics

Equipment through professional appearance modelling design, the shell is made of high precision mold stamping forming, generous and delicate, high-end sedate, planetary disc is made of casting forming, numerical control processing technology on structure component processing, transmission gear combination of high-temperature resistant non-metal and metal precision gear, metal heat treatment process of nitriding, can ensure abrasion resistance to prevent the broken shaft axis of rotation, to ensure that the equipment run time at a high speed It is stable and quiet, the grinding tank can be fixed at the same time, the operation is convenient, safe and reliable, the shell can match the color of the product, give the product new vitality, activate the new life of the product, in line with the international and domestic aesthetic needs, in line with ergonomics.

1. Fashion design

The equipment shell uses square design elements, high precision mold stamping forming, especially delicate.

2. Exquisite workmanship

Adopt numerical control processing technology, planetary disc integral casting molding, transmission gear selection of special material precision gear.

3. Grinding tank locking device

The crossbeam and nut of the locking device are all cast, easy to operate, safe and reliable. (Optional automatic locking device)

C. Parameter

Mode of transmission	Gear transmission
Mode of working	Two and four ball grinding jars work simultaneously
Mode of transmission	Two thirds of the volume of the ball mill jar
Ball mill tank volume	0.05-3L per jar, total volume 0.2-12L
Feed granularity	Soil material≤10mm, and other materials≤3mm
Granularity of discharge	Up to 1 micron
Mode of speed regulation	Infinitely adjustable-speed

Model	Volume	Configurable ball mill specifications	Qty	Configurable vacuum ball mill volume	Locking device (optional automatic)
PBM-LS-1	1	50-250ml	4	50-100ml	manual
PBM-LS-2	2	50-500ml	4	50-250ml	manual
PBM-LS-4	4	250-1000ml	4	50-500ml	manual
PBM-LS-6	6	1-1.5L	4	50-1000ml	manual
PBM-LS-8	8	1-2L	4	50-1500ml	manual
PBM-LS-10	10	1-2.5L	4	50-2000ml	manual
PBM-LS-12	12	1-3L	4	1L-2L	manual

Model	Power supply (single-phase)	Power(kw)	Total time to run the set(min)	Alternating positive and negative running time(min)	Adjustable speed Revolution(rpm) Rotation(rpm)
PBM-LS-1	220V-50HZ	0.75	1-9999	1-9999	35-370	70-740
PBM-LS-2	220V-50HZ	0.75	1-9999	1-9999	35-370	70-740
PBM-LS-4	220V-50HZ	0.75	1-9999	1-9999	35-370	70-740
PBM-LS-6	220V-50HZ	0.75	1-9999	1-9999	35-370	70-740
PBM-LS-8	220V-50HZ	1.5	1-9999	1-9999	35-320	70-640
PBM-LS-10	220V-50HZ	1.5	1-9999	1-9999	35-320	70-640
PBM-LS-12	220V-50HZ	1.5	1-9999	1-9999	35-320	70-640

Model	Standard panel (optional intelligent, touch screen)	Lubrication way	Mode of speed regulation	Weight(kg)	*Size(Length width * height)**	Noise≤db
PBM-LS-1	ordinary	grease	Frequency control	90	*780470570*	60±5
PBM-LS-2	ordinary	grease	Frequency control	93	*780470570*	60±5
PBM-LS-4	ordinary	grease	Frequency control	93	*780470570*	60±5
PBM-LS-6	ordinary	grease	Frequency control	95	*780470570*	60±5
PBM-LS-8	ordinary	grease	Frequency control	148	*920600640*	63±5
PBM-LS-10	ordinary	grease	Frequency control	150	*920600640*	63±5
PBM-LS-12	ordinary	grease	Frequency control	152	*920600640*	63±5
