High-quality Table Type Low Speed Centrifuge Equipment Optional LED And LCD Display

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-TD5K
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

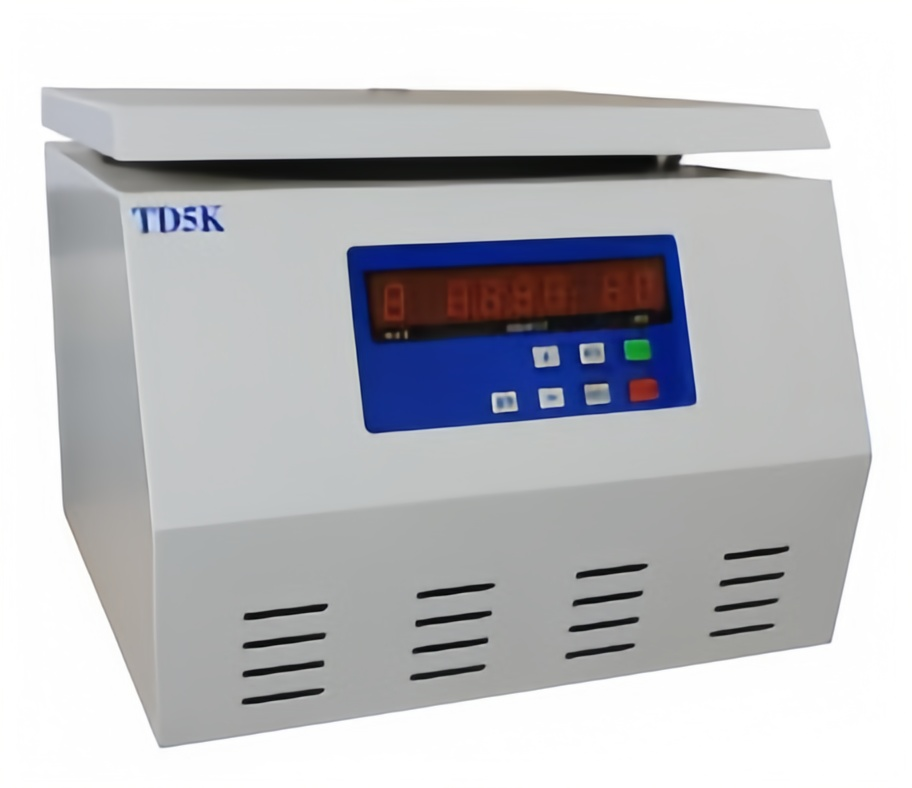

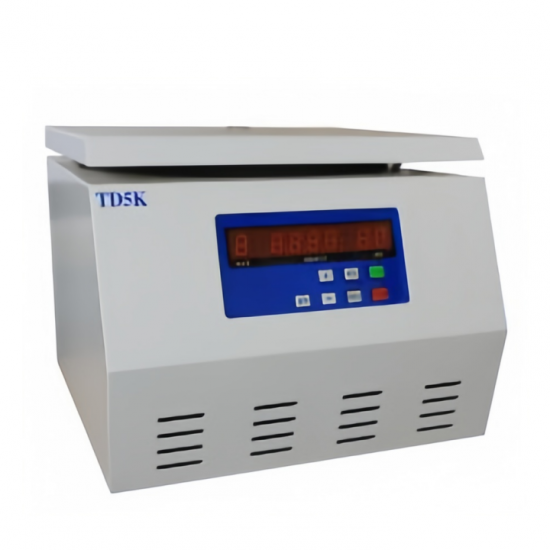

High-quality Table Type Low Speed Centrifuge Equipment Optional LED And LCD Display

The separation technology of this series of centrifuges is a new technology developed according to the state of the particles in a practical centrifugal occasion, which is suitable for the experimental and scientific research work in biochemistry, hospital clinical examination and other fields.

Product characteristics

1) Drive: Brushless DC motor drive, maintenance-free, large torque, fast lifting speed, special combination shock absorber to make the motor run smoothly.

2) Display: intelligent control, touch panel, LED/LCD optional, operating parameters can be automatically memorized, RCF can be set directly.

3) Fuselage: The fuselage adopts high-quality steel structure, stainless steel centrifugal chamber, durable, easy to clean.

4) Safety protection: It has multiple protection functions such as door cover, overspeed and imbalance, and is equipped with electronic door lock to ensure safe and reliable operation process.

5) Control: Speed, time and other parameters can be directly set, easy to use.

Performance parameter

Model number	TD5K
Maximum speed	5500r/min
Maximum relative centrifugal force	5310×g
Maximum capacity	4×500ml
Speed accuracy	±30r/min
Timing range	0～99min
Machine noise	≤58dB
Electric machine	Brushless DC motor, microcomputer control
Power source	AC 220V 50Hz 15A
Overall dimension	550×455×370mm
Weight	50kg

Adaptive rotor and centrifuge tube

Rotor type	Max capacity	Max speed	Max RCF	Centrifugal tube size
No.52 horizontal rotor	2×2×96 hole	4000r/min	2300×g	Enzyme label board
No.56 horizontal rotor	4×50/100ml	5500r/min	5310×g	Φ38×124
No.57 horizontal rotor	32×10/15/5ml	4000r/min	2810×g	Φ16×85-118
No.61 horizontal rotor	4×250/8×50/36×10ml	4000r/min	3500×g	Φ64×113
No.62 horizontal rotor	4×500/16×50/8×100ml	4000r/min	3580×g	Φ80×140
No.69 horizontal rotor	48/40×7/5ml	4000r/min	2800×g	Φ 14×54
No.76 horizontal rotor	72×7/5ml	4000r/min	2830×g	Φ 14×54
No.77 horizontal rotor	8×50/100ml	4000r/min	2810×g	Φ25×105-115
No.79 horizontal rotor	96×7/5ml	4000r/min	3580×g	Bleeder tube
