Home Planetary Centrifugal Mixer Centrifuge Machine

Tabletop Centrifuge Machine

Desktop High-speed Refrigerated Centrifuge with Max.RFC up to 27800xg for Molecular Biology and Molecular Chemistry Research

Desktop High-speed Refrigerated Centrifuge with Max.RFC up to 27800xg for Molecular Biology and Molecular Chemistry Research

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-TGL-20M
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

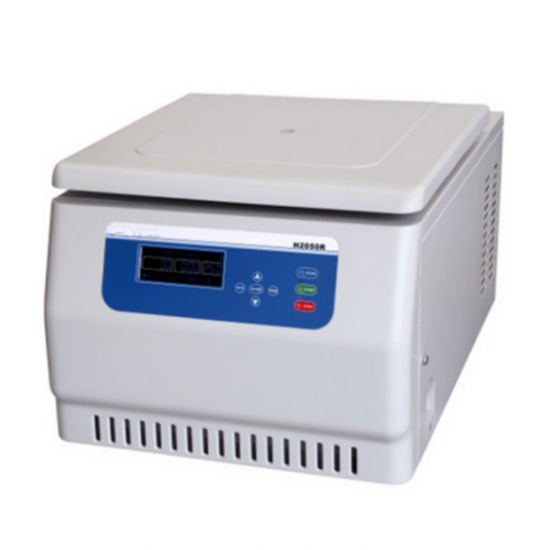

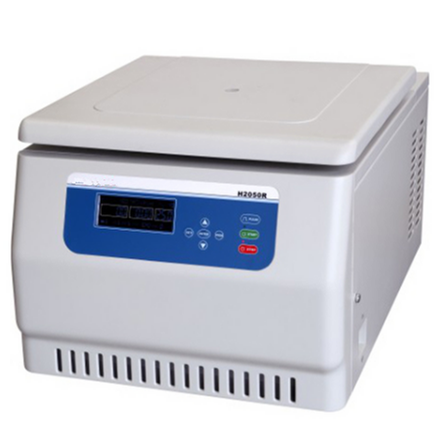

Desktop High-speed Refrigerated Centrifuge with Max.RFC up to 27800xg for Molecular Biology and Molecular Chemistry Research


TMAX-TGL-20M has 10 types of rotors, and the maximum centrifugal force is up to 27800xg. The desktop high-speed refrigerated centrifuge TGL-20M is an ideal experimental instrument for molecular biology, molecular chemistry, etc.



1. The maximum relative centrifugal force is up to 27800xg, and the maximum speed is up to 20000rpm.

2. Microcomputer control, high torque DC brushless variable frequency motor direct drive, low noise.

3. Equipped with 10 rotors for users to choose, large-screen LCD display, imported high-performance environmental protection refrigeration system.

4. Touch panel, programmable operation, the user can arbitrarily set the centrifugation speed and centrifugation time.

5. 9 kinds of speed up and down gears, 10 kinds of deceleration gears, three-stage damping and shock absorption, prevent the sample from re-suspending, and have a good centrifugal effect.

6. There are various protections such as overspeed, overtemperature, door cover self-locking, stainless steel inner sleeve, and three-level protective cover to ensure personal and machine safety.

7. Programmable operation, store multiple routine programs.

8. Highly suitable and comfortable to operate.



Technical Parameters

Model

TMAX-TGL-20M

Order No

0202145000

Max.Speed

20000rpm

Max.RCF

27800xg

Max.capacity

4x100ml

Speed accuracy

±30rpm

Time rang

1min to 99min89sec or continuous running

Temp range

-20℃~40℃

Temp control accuracy

±1℃

Compressor set

Environment-friendly with

(R404a)refrigerant

Noise

<65dB(A)

Power supply

AC220V±22V  50/60Hz 10A

Power consumption

1200W

Dimensions (WxDxH)

410x700x370mm

Packing size (WxDxH)

550x1032x530mm

Net weight

85kg



TGL-20M ROTOR

NO.

ITEM

MAX.RPM

r/min

MAX. RCF

(×g)

CAPACITY

No.1

Angle Rotor

20000

27800

12×1.5/2.2ml

No.2

Angle Rotor

16000

18090

12×5ml

No.3

Angle Rotor

15000

23120

12×10ml

Angle Rotor

8×15mlsharp bottomed

No.4

Angle Rotor

13000

17940

6×50ml

Angle Rotor

13000

17940

6×50ml(sharp bottomed)

No.5

Horizontal transposon

6000

3200

4×10ml

Horizontal pylon

6000

3200

4×10ml

No.6

Enzyme plate transposon

3000

1400

2×2×48 hole

Horizontal plate hanger

3000

1400

2×2×48 hole

No.7

Angle Rotor

16000

24498

24×1.5/2.2ml

No.8

Angle Rotor

14000

19030

4×50ml

No.9

Angle Rotor

10000

9690

4×100ml



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
