Item No.:
TMAX-DH-16Payment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
5 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:
Two years limited warranty with lifetime technical support

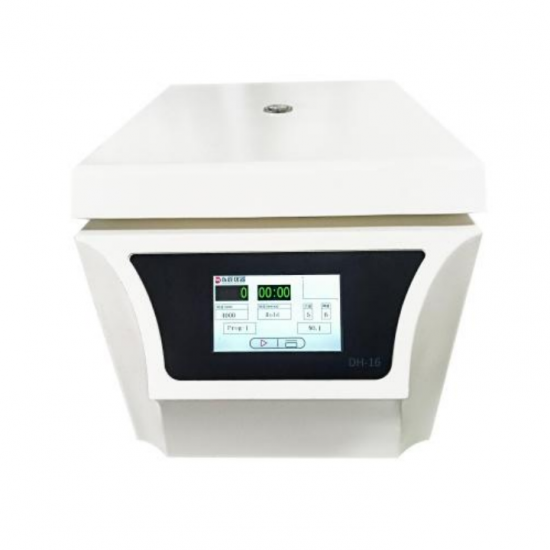

Lab Table Top High Speed Refrigerated Centrifuge with 16500rmp Max Speed
It is suitable for biology, agriculture and other fields, and is the first choice for genetic gene and protein nucleic acid PCR experiments
Features of the instrument
1. 5 inch HD touch screen, simple operation, intuitive display
2. Automatically identify 7 different rotors to eliminate the safety risks caused by user misoperation
3. 9 speed up, 10 speed down, effectively prevent secondary overhang, good centrifugal effect
4. It can store 15 groups of programs for users to call
5. Ac frequency conversion motor, high speed control precision
6. Air-tight rotor, effectively prevent aerosol
7. Free switching between speed and centrifugal force
8. Special air duct to ensure that the rotor works at normal temperature
9. It is equipped with overspeed, door protection, unbalanced protection and other protection to ensure the safety of people and machines
Techenical parameter
|
Model |
DH-16 |
|
Max Speed |
16500r/min |
|
Max RCF |
21380×g |
|
Max Capacity |
4×100mL |
|
Motor |
Ac frequency conversion motor |
|
Speed Accurance |
±30r/min |
|
Time Range |
Timed centrifugation: 1min ~ 99 min59sec Continuous centrifuge: Hold |
|
Power supply |
AC220±22V 50/60Hz 16A |
|
Noise |
< 60dB(A) |
|
Dimension (L×D×H) |
350×495×350(mm) |
|
Net weight |
30kg |
Rotor
|
Serial number |
Type of rotor |
Capacity |
Max Speed rmp/m |
Max RCF(xg) |
Tube size (mm) |
|
NO.1 |
Angle rotor rotor |
12×1.5/2ml |
16500rmp/m |
18400×g |
Φ10x42 |
|
NO.2 |
Angle rotor rotor |
24×1.5/2ml |
15000rmp/m |
21380×g |
Φ10x42 |
|
NO.3 |
Angle rotor rotor |
48×0.5ml |
13000r/min |
19080×g |
Φ8x32 |
|
NO.4 |
Angle rotor rotor |
32x1.5/2ml |
13000r/min |
19270×g |
Φ10x42 |
|
NO.5 |
Angle rotor rotor |
12×5ml |
12000r/min |
10100×g |
Φ13x53 |
|
NO.6 |
Angle rotor rotor |
12×10ml |
12500r/min |
16060×g |
Φ16x83 |
|
NO.7 |
Angle rotor rotor |
6x50ml |
12000r/min |
15130×g |
Φ29x120 |
|
NO.8 |
Angle rotor rotor |
4x100ml |
10000r/min |
10620×g |
Φ28x119 |
|
NO.9 |
Angle rotor rotor |
8×15ml |
12000r/min |
15370×g |
Φ17x121 |
|
NO.10 |
Enzyme labeled rotor |
2×2×48 hole |
4000r/min |
2000×g |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
