Tabletop High Speed Refrigerated Centrifuge Install and Remove Without Tool

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-H2050R
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

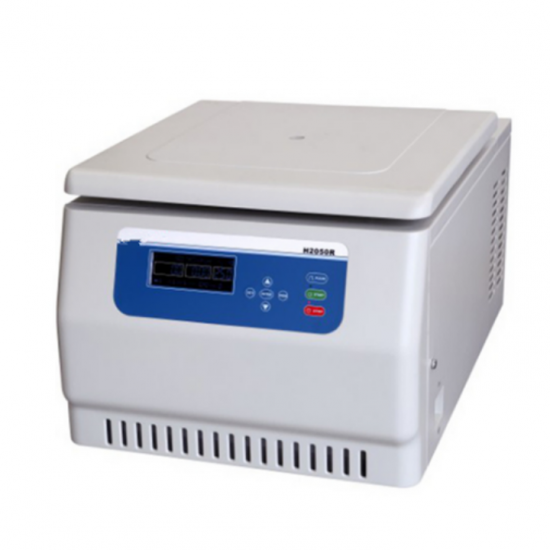

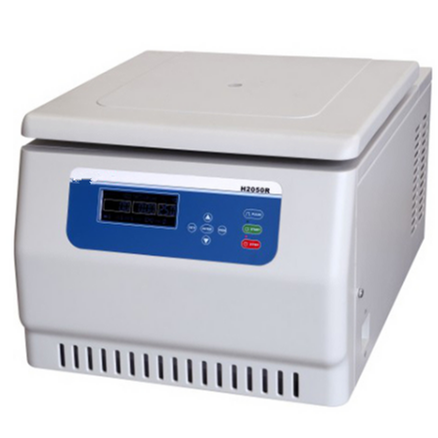

Tabletop High Speed Refrigerated Centrifuge Install and Remove Without Tool

The TMAX-H2050R desktop high-speed large-capacity refrigerated centrifuge has 11 different rotors. Not only has 4 × 750ml large-capacity rotors, but also has a centrifugal rotor with a maximum speed of 20500RPM, and its centrifugal function is not inferior to other large multi-function centrifuges.

1. 11 different rotors are available, which can be used for both large-capacity centrifugation and high-speed centrifugation.

2. Microcomputer control, direct drive by high torque AC variable frequency brushless motor, no toner pollution, prolong service life.

3. Touch panel, large LCD display, programmable operation.

4. 9 kinds of acceleration curves, 10 kinds of deceleration curves (No. O is free parking), three-stage damping and shock absorption, and the centrifugal effect is excellent.

5. It is equipped with various protections such as overspeed, overtemperature, door cover self-locking, stainless steel inner sleeve, and three-level protective cover to ensure personal and machine safety.

6. The rotor is automatically identified, and the speed limit is controlled, making the centrifugation safer.

7. Imported high-efficiency environmental protection refrigeration system, the maximum speed can be kept below -4℃.

Technical specification

Model	TMAX-H2050R
Max RPM	20500r/min
· MAX. RCF	29200xg
Max capacity	4×750ml（horizontal rotor）
Speed Accuracy	±10r/min
Temperature setting range	-20℃～+40℃
Temp Accuracy	±1℃
Compressor Unit	Environmental protection refrigerant (R134A)
Timer Range	1min~99min59sec Or continuous operation
Noice	<65dB(A)
Power supply	AC220V±22V 50Hz 16A
Power	1500W
Overall dimensions（L×W×H）	560×800×440(mm)
Package size（L×W×H）	680×1080×580（mm）
Weight	95kg

H2050R ROTOR

NO.	ITEM	MAX.RPM （r/min）	MAX. RCF (×g)	CAPACITY
No.1	Angle Rotor	20500	29200	12×1.5/2.2ml
No.2	Angle Rotor	16500	19175	12×5ml
No.3	Angle Rotor	15000	23120	12×10ml
No.3	Angle Rotor	15000	23120	6×30ml
No.4	Angle Rotor	13000	17940	6×50ml
No.4	Angle Rotor	13000	17940	6×50ml (sharp-bottomed)
No.5	Horizontal transposon	4000	3500	4×750ml
No.5	Horizontal Round Cup	4000	3500	4×750ml
No.6	Horizontal transposon	4000	3040	4×500ml
	Enzyme plate hanger rotor	4000	3040	4×2×96 hole
	Hang cup horizontal rotor	4000	3040	4×37×7ml（放免管）
	Hang cup horizontal rotor	4000	3040	4×24×5ml（blood collection tube）
	Square hanging basket rotor	4000	3040	Four hanging basket
No.6	Horizontal Round Cup Rotor	4000	3040	4×500ml
No.7	Angle Rotor	16500	26050	24×1.5/2.2ml
No.8	Angle Rotor	12000	15805	6×85ml
No.9	Angle Rotor	10000	11960	6×100ml
No.10	Angle Rotor	15000	20625	8×15ml（sharp bottomed）
