Desktop 25000rpm Refrigerated Centrifuge Machine for Cell Separation

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-H2500R
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

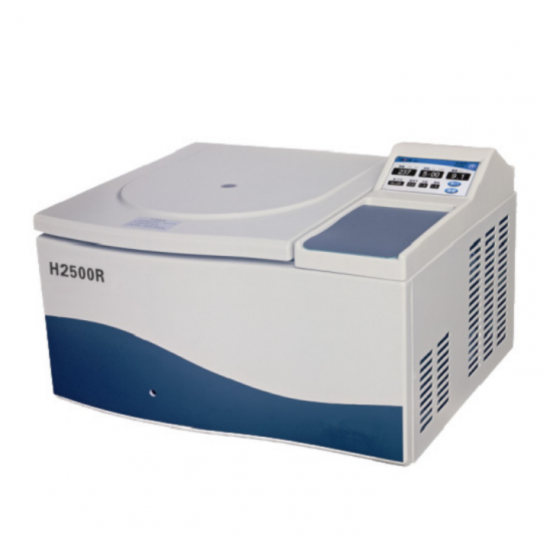

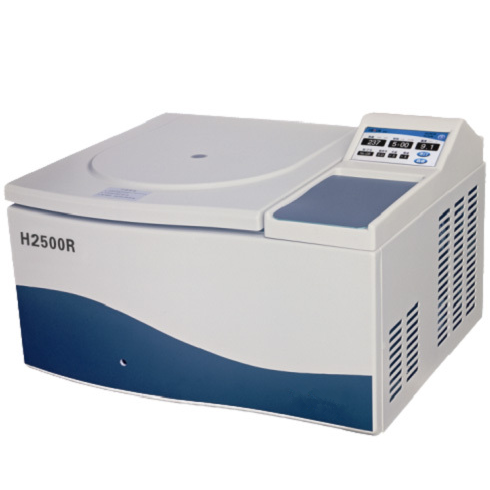

Desktop 25000rpm Refrigerated Centrifuge Machine for Cell Separation

TMAX-H2500R desktop high-speed large-capacity refrigerated centrifuge is an intelligent centrifuge developed by Xiangyi for many years. It has a fast rotor installation method, and can be disassembled without any tools. , DNA, RNA, cell isolation products.

1. Simple rotor installation and positioning, just place the rotor on the drive shaft to complete the installation and positioning, without tedious screw fixing or button operation.

2. 7-inch large-size high-definition touch screen control, easy to operate, intuitive display, setting parameters, real-time operating parameters displayed on the same screen.

3. Large-capacity data storage, which can store operating data, fault records, etc. for several months, which is convenient for tracking operating information. Users can customize and edit hundreds of operating programs and describe each customized program in detail.

4. The control system can realize functions such as step centrifugation, scheduled start, sample ID, curve mode, program mode, and multi-language selection.

5. Excellent security performance, you can choose user management, prevent accidental situations, etc. which lead to the program being tampered with or deleted.

6. Safe and stable centrifugal performance, the maximum speed is 25000r/min, and a variety of rotors are optional, which can easily help you to achieve rapid sample separation.

7. Rotor automatic identification, with unbalance, overspeed, overtemperature, door lock and other protection functions.

8. Equipped with a variety of rotors, with high speed and large capacity, it is an ideal product to replace the floor-standing high-speed centrifuge.

Specification:

Model Name	TMAX-H2500R
Order No.	170000
Max. Speed	25000r/min
Max. RCF	50560*g
Max. Capacity	6*100ml
Speed Accuracy	±10rpm
Time Setting Range	1min to 99min59s
Temp Setting Range	−20℃ to 40℃
Temp Accuracy	±1℃
Compressor	Non-CFC unit(R404a)
Noise	<62dB(A)
Power Supply	AC220V±22V50Hz18A
Dimension (WxDx H)	710x560x450mm
Dimension (WxDx H)	710x560x450mm
Package Dim(WxDxH)	1022x712x630mm
Net Weight	95Kg
Wattage	1500W

H2500R ROTOR

NO.	ITEM	MAX.RPM （r/min）	MAX. RCF (×g)	CAPACITY
No.1	Angle Rotor	25000	44720	12×1.5ml
No.2	Angle Rotor	14000	21912	12×15ml（sharp bottomed）
No.3	Angle Rotor	19000	36715	12×10ml
No.4	Angle Rotor	16500	28854	6×50ml
No.4	Angle Rotor	16500	28854	6×50ml
No.5	Angle Rotor	15000	24150	6×50ml（sharp bottomed）
No.6	Angle Rotor	16000	27762	8×50ml
No.7	Angle Rotor	23000	50560	24×1.5ml
No.8	Angle Rotor	19000	38987	48×1.5ml
No.9	Angle Rotor	13500	21800	6×100ml
No.10	Angle Rotor	20000	35328	6×30ml
