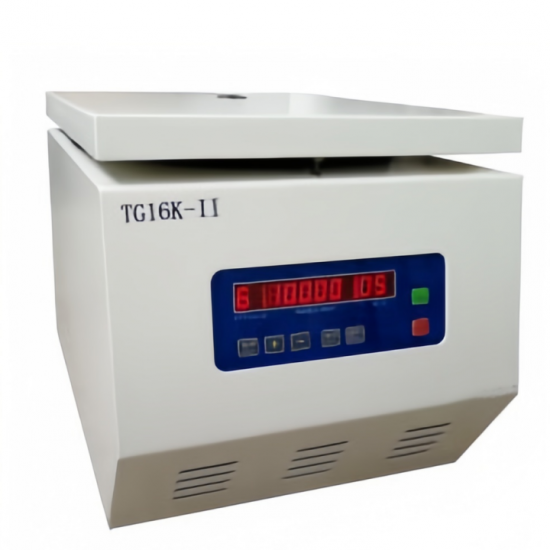

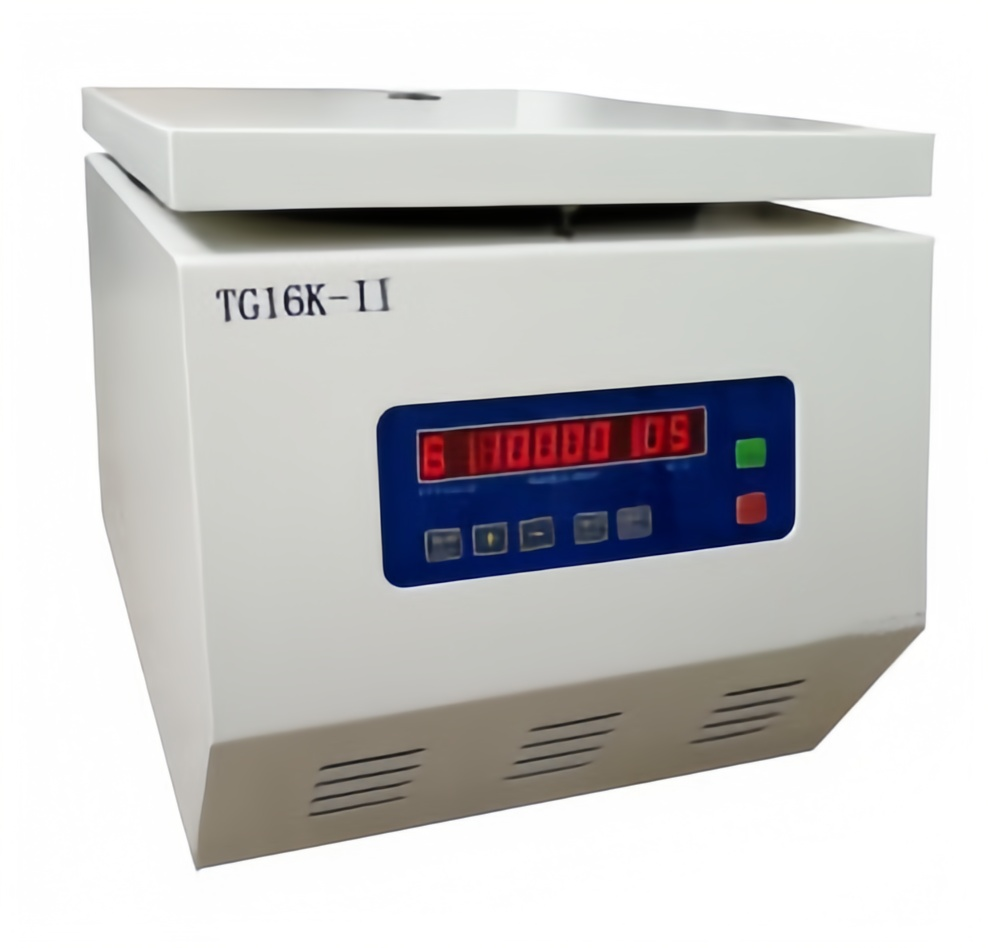

Maximum Speed 16600RPM Desktop High Speed Centrifuge Machine Suitable for Experiments of Large Centrifugal Force And Low Temperature Requirements

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-TG16K-Ⅱ
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Maximum Speed 16600RPM Desktop High Speed Centrifuge Machine Suitable for Experiments of Large Centrifugal Force And Low Temperature Requirements

This series of centrifuges is a conventional experimental centrifuge, which is suitable for experiments with few samples, many steps, large centrifugal force and low temperature requirements. Widely used in biochemistry, genetic engineering, agricultural forestry science, food hygiene, hospital medicine and other scientific research education and production departments.

Product characteristics

1) Drive: Brushless DC motor drive, maintenance-free, large torque, fast lifting speed, special combination shock absorber to make the motor run smoothly.

2) Display: Intelligent control, touch panel, intuitive digital display, operating parameters can be automatically memorized, RCF can be set directly.

3) Fuselage: The fuselage adopts high-quality steel structure, stainless steel centrifugal chamber, durable, easy to clean.

4) Safety protection: Rotor number identification function, 10 speed up and down optional, with door cover self-locking, overspeed, imbalance and other multiple protection functions, equipped with electronic door lock to ensure safe and reliable operation process.

Performance parameter

Model number	TG16K-Ⅱ
Maximum speed	16600r/min
Maximum relative centrifugal force	19200×g
Maximum capacity	4×100ml
No.6 angle rotor	12×1.5/2.0ml(16600r/min)RFC:19200×g
No.10 angle rotor	18×0.5ml(16600r/min)RFC:19200×g
No.13 angle rotor	24×1.5/2.0ml(13000r/min)RFC:16060×g
No.14 angle rotor	10×5ml(13000r/min)RFC:11500×g
No.15 angle rotor	12×10ml(12000r/min)RFC:14800×g
No.22 angle rotor	6×50ml(12000r/min)RFC:14800×g
No.23 angle rotor	4×100ml(10000r/min)RFC:11200×g
Adapter	6×30ml(12000r/min)RFC:14800×g
No.25 angle rotor	36×0.5ml(13000r/min)RFC:14740×g
No.29 angle rotor	12×15ml(10000r/min)RFC:10290×g
Enzyme-labeled rotor	2×48 hole(4000r/min)RFC:2300×g
Speed accuracy	±30r/min
Timing range	0～99min
Machine noise	≤58dB
Electric machine	Brushless DC motor, microcomputer control
Power source	AC 220V 50Hz 15A
Overall dimension	450×350×330mm
Weight	30kg

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
