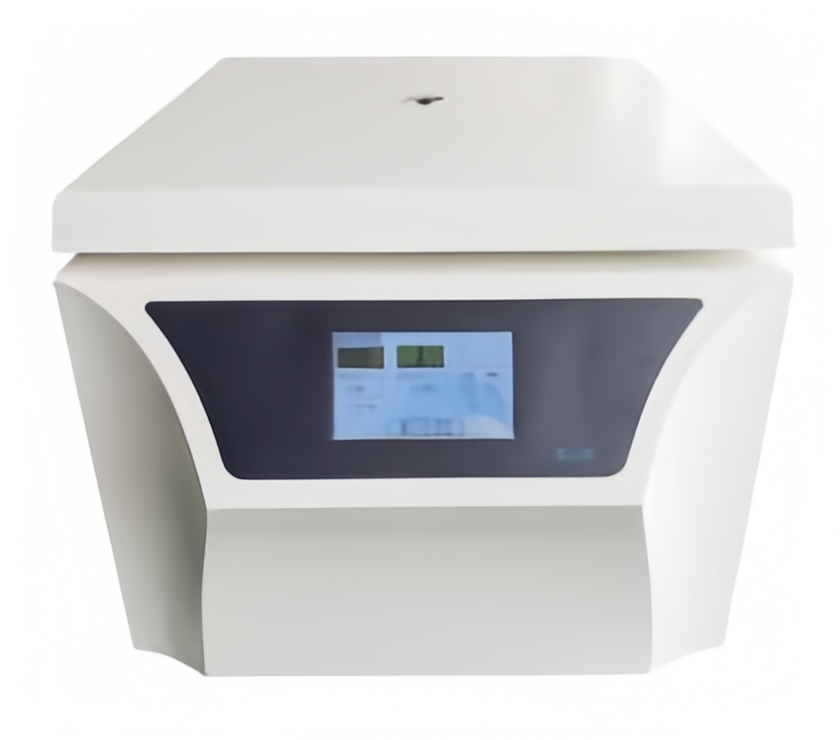

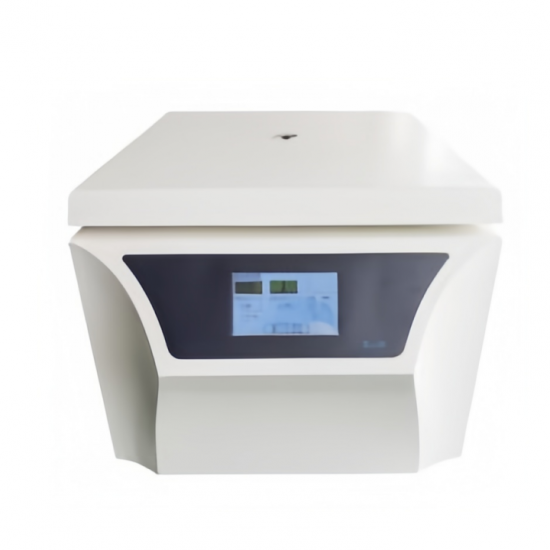

Lab Table Type Low Speed Centrifuge Optional Different Rotor

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-DL50
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Lab Table Type Low Speed Centrifuge Optional Different Rotor

Suitable for the separation of biological, chemical, pharmaceutical, biological products and other different liquids.

Instrument characteristics

1.5-inch HD touch screen, easy to operate, intuitive display

2. Automatically identify 4 different rotors to eliminate security risks caused by user misoperation

3.9 speed up, 10 speed down, effectively prevent secondary suspension, good centrifugal effect

4. 20 groups of programs can be stored and called by the standby user

5. Special air duct, the continuous working temperature rise is less than 10℃ at room temperature of 26-28℃

6. Ac variable frequency motor, high speed control accuracy

7. Unique two-level shock absorption, large capacity rotor running vibration is small, stable operation to increase the service life of the instrument

8. Equipped with overspeed, door protection, unbalanced protection and other protection to ensure human and machine safety

Technical parameter

Model number	DL50
Maximum speed	6000rpm
Maximum relative centrifugal force	4390×g
Maximum capacity	4×500mL
Electric machine	Ac variable frequency motor
Speed accuracy	±30r/min
Timing range	Timing centrifugation :1min ~ 99min59sec Continuous centrifugation :Hold
Power source	AC220±22V50/60Hz 10A
Machine noise	≤60dB(A)
Overall dimensions (L×D×H)	458mm×620mm×380mm
Net weight	55kg

Adaptive rotor

No.	Max speed	Max RCF	Rotor type	Capacity	Test tube size(mm)
NO.1	4000rmp/m	2810×g	Horizontal rotor	4x2x100ml (adapter available)	Φ37.5×123
	4000rmp/m	2810×g		4x100ml (adaptor available)	Φ37.5×123
	4000rmp/m	2810×g		4x2x50ml	Φ29×107
	4000rmp/m	2810×g		4x50ml	Φ29×107
	4000rmp/m	2810×g		4x8x15ml	Φ17×118
				4x6x15ml	Φ17×118
				4x4x15ml	Φ17×118
NO.2	4200r/min	3500xg		4x250ml	Φ62×110
NO.3	4000r/min	3040×g		4×500ml	Φ80×137
NO.4	4000r/min	2800×g	Horizontal rotor	4×12×7/5ml	Φ13×110
NO.5	4000r/min	2800×g	Horizontal rotor	4×18×7/5ml	Φ13×110
NO.6	4000r/min	2800×g	Horizontal rotor	4×24×7/5ml	Φ13×110
NO.7	Elisa plate	2×2×48 hole	4000r/min	2000×g	Elisa plate
NO.8	4000r/min	2000×g	Elisa plate	2×2×96 hole	Elisa plate
NO.9	6000r/min	3800×g	Angle rotor	6×50ml	Φ29×105
NO.10	5500r/min	4390×g	Angle rotor	12×10ml	Φ16×83
