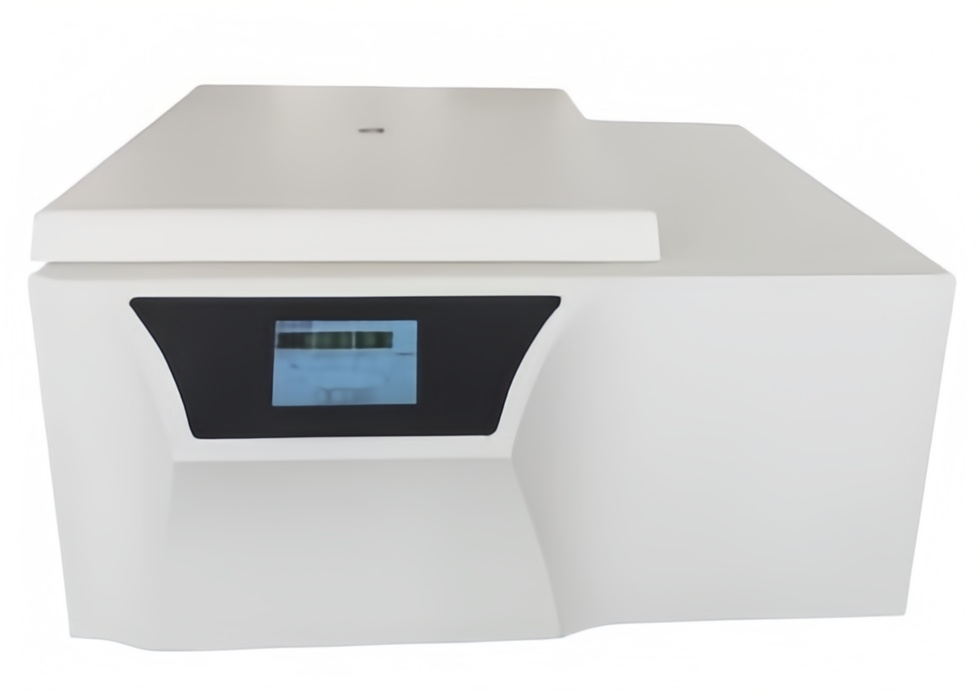

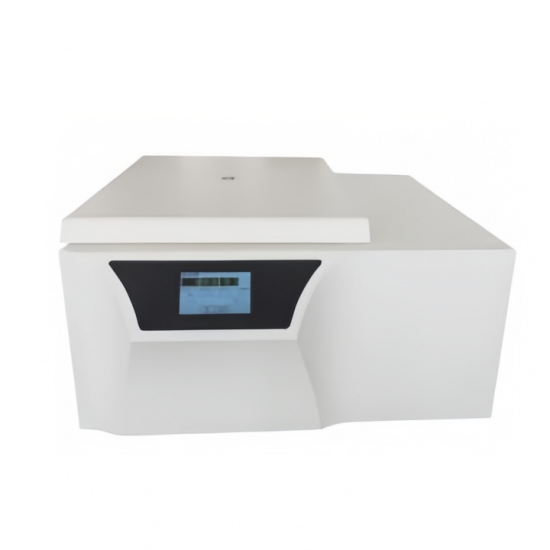

Lab Programmable Table Top High Speed Refrigerated Centrifuge Machine with 3L Max Capacity

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-DH-21R
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Lab Programmable Table Top High Speed Refrigerated Centrifuge Machine with 3L Max Capacity

Widely used in agriculture, medicine, food hygiene, biopharmaceutical, biological engineering, cell biology and biochemistry and other fields, suitable for the isolation and purification of microbial bodies, cell proteins, molds and immunity

Instrument characteristics

1.5-inch HD touch screen, easy to operate, intuitive display

2. Automatically identify 9 different rotors to eliminate security risks caused by user misoperation

3.9 speed up, 10 speed down, effectively prevent secondary suspension, good centrifugal effect

4. Can store 15 groups of programs, standby user calls

5. Ac variable frequency motor, high speed control precision, environmental protection compressor imported from Europe

6. Equipped with overspeed, door protection, unbalanced protection and other protection to ensure human and machine safety

7. Free switching of speed and centrifugal force

8. Angle rotor air-tight rotor, effectively prevent aerosols

Performance parameter

Model number	DH-21R
Maximum speed	21000r/min
Maximum relative centrifugal force	30640×g
Maximum capacity	4×750mL
Electric machine	Ac variable frequency motor
Speed accuracy	±30r/min
Timing range	Timing centrifugation：1min～99min59sec Continuous centrifugation:Hold
Temperature setting range	-20℃~+40℃
Temperature control precision	±1.0℃
Power source	AC220±22V 50/60Hz 16A
Machine noise	≤60dB(A)
Overall dimensions (L×D×H)	720×743×410(mm)
Net weight	110kg

Adaptive rotor

No.	Capacity	Max speed	Max RCF	Test tube size(mm)
NO.1	Angle rotor 18×0.5ml	21000rmp/m	26750×g	Φ8×32
NO.2	Angle rotor 12×1.5/2ml	21000rmp/m	30640×g	Φ10x42
NO.3	Angle rotor 24×1.5/2ml	16500rmp/m	24890×g	Φ10x42
NO.4	Angle rotor 32×1.5/2ml	15000rmp/m	25650×g	Φ10x42
NO.5	Angle rotor 48×1.5/2ml	15000rmp/m	24270×g	Φ10x42
NO.6	Angle rotor 12×5ml	16500r/min	19170×g	Φ13x53
NO.7	Angle rotor 12×10ml	15000r/min	23120×g	Φ16x83
NO.8	Angle rotor 8×15ml	15000r/min	23640×g	Φ17x121
NO.9	Angle rotor 12×15ml	14000r/min	22022×g	Φ17x121
NO.10	Angle rotor 6×50ml	15000r/min	23640×g	Φ29x120
NO.11	Angle rotor 8×50ml	12000r/min	15610×g	Φ29x120
NO.12	Angle rotor 4×100ml	13000r/min	18138×g	Φ37.9x119
NO.13	Angle rotor 6×100ml	10000r/min	11808×g	Φ37.9x119
NO.14	Horizontal rotor 4×250ml	4200r/min	3500×g	Φ29x120
NO.15	Horizontal rotor 4×500ml	4000r/min	3040×g	Φ80x137
NO.16	Horizontal rotor 4×24×7/5ml	4000r/min	3040×g	Φ13×110
NO.17	Horizontal rotor 4x6/8x15ml	4000r/min	2810×g	Φ17x121
NO.18	Horizontal rotor 4x6/8x10ml	4000r/min	2810×g	Φ17x115
NO.19	Horizontal rotor 4x50ml	4000r/min	2810×g	Φ29×125
NO.20	Horizontal rotor 4×100ml	4000r/min	2810×g	Φ37.9x119
NO.21	Horizontal rotor 4×750ml	4000r/min	3180×g	Φ99x137
NO.22	Elisa plate 2x2x96 hole	4000r/min	2300×g	Enzyme labeling
