Home Planetary Centrifugal Mixer Centrifuge Machine

Tabletop Centrifuge Machine

Lab Small Stainless Steel Desktop Blood Bank Centrifuge

Lab Small Stainless Steel Desktop Blood Bank Centrifuge

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-TD4K-X
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

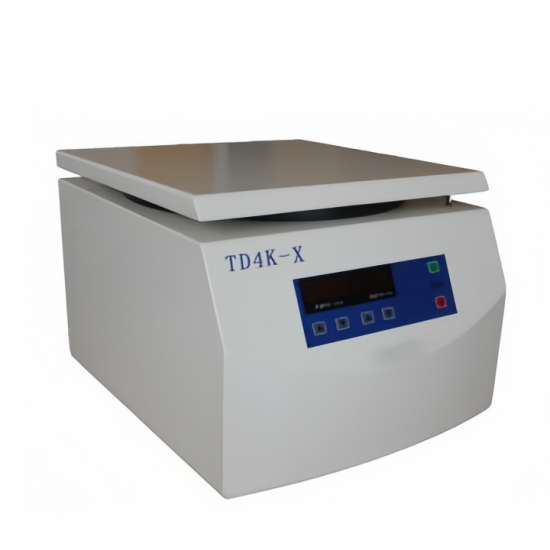

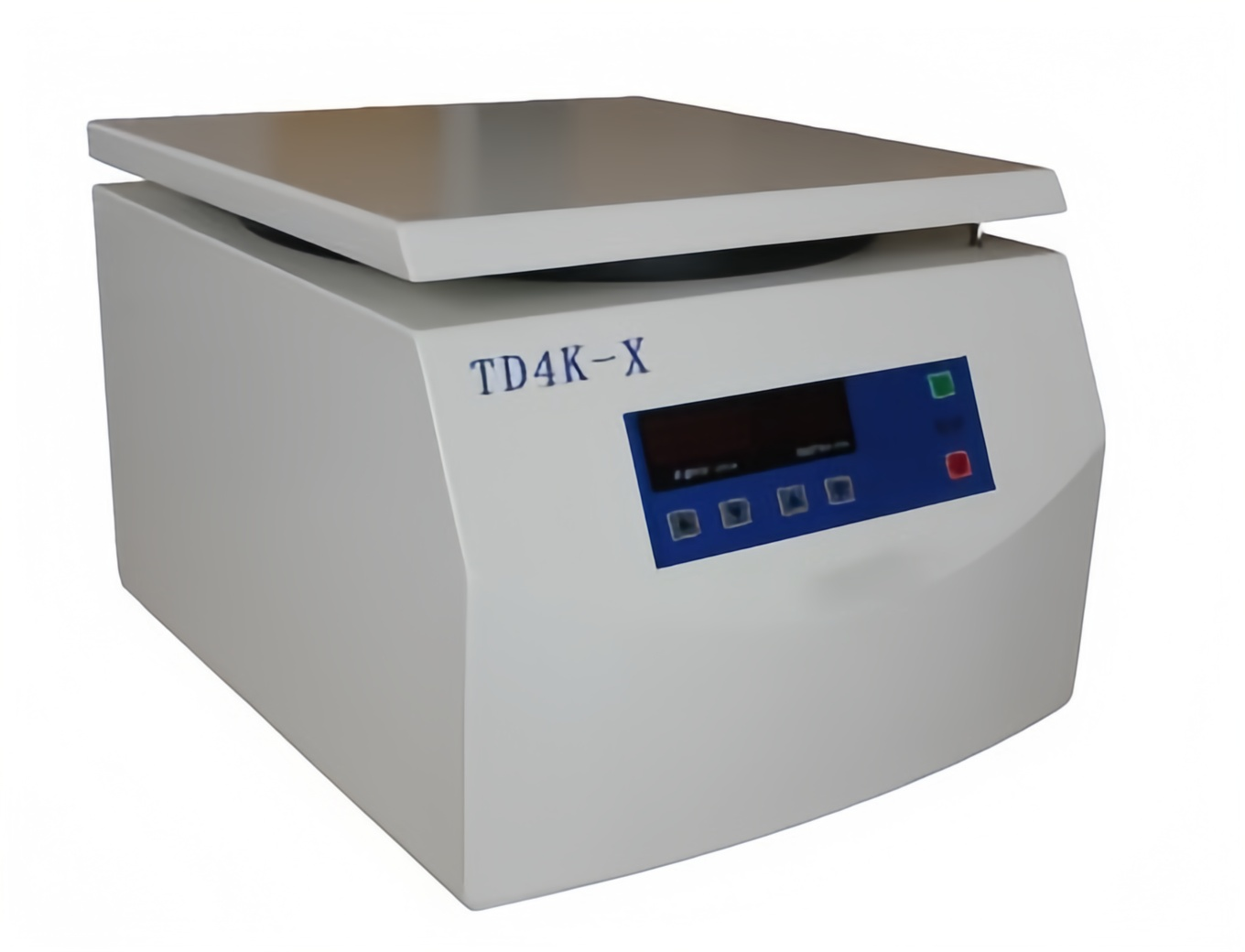

Lab Small Stainless Steel Desktop Blood Bank Centrifuge





Blood bank centrifuge, can store 10 kinds of custom working mode, one of which is set blood bank coagulated amine test special; It is mainly used with the coagulant medium reagent, and can be used for cross-matching blood test, blood type identification and irregular antibody screening.



Product characteristics

1) Drive: Brushless DC motor drive, maintenance-free, large torque, fast lifting speed, special combination shock absorber to make the motor run smoothly.

2) Display: Microcomputer processor control, touch panel, LED real-time display of all operating parameters, fully meet the needs of blood bank test.

3) Fuselage: The fuselage adopts high-quality steel structure, stainless steel centrifugal chamber, durable, easy to clean.

4) Special ventilation and cooling design, to avoid excessive temperature in the centrifugal room, resulting in blood quality change, the rotational speed is less than 4000r/min for a long time centrifuge, the sample temperature only increased by 5℃.

5) Safety protection: It has multiple protection functions such as door cover, overspeed and imbalance, and is equipped with electronic door lock to ensure safe and reliable operation process.

6) Control: The centrifuge adopts PWM pulse width system for fast point braking and matches the two-stage shock absorption system to effectively ensure fast shutdown and no reverberation.



Performance parameter

Model number

TD4K-X

Maximum speed

4000r/min

Maximum relative centrifugal force

2200×g

Maximum capacity

12×10/15ml

Rotor

Angle rotor 12×10ml(4000r/min)RFC:1770g

Rotor

Angle rotor 12×15ml(4000r/min)RFC:1770g

Speed accuracy

±30r/min

Timing range

0-99min

Machine noise

≤58dB

Electric machine

Brushless DC motor, microcomputer control

Power source

AC 220V 50Hz 8A

Overall dimension

430×340×250mm

Weight

20kg

 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
