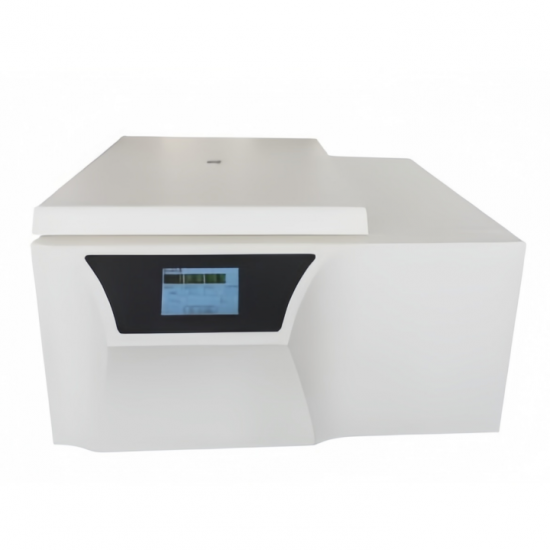

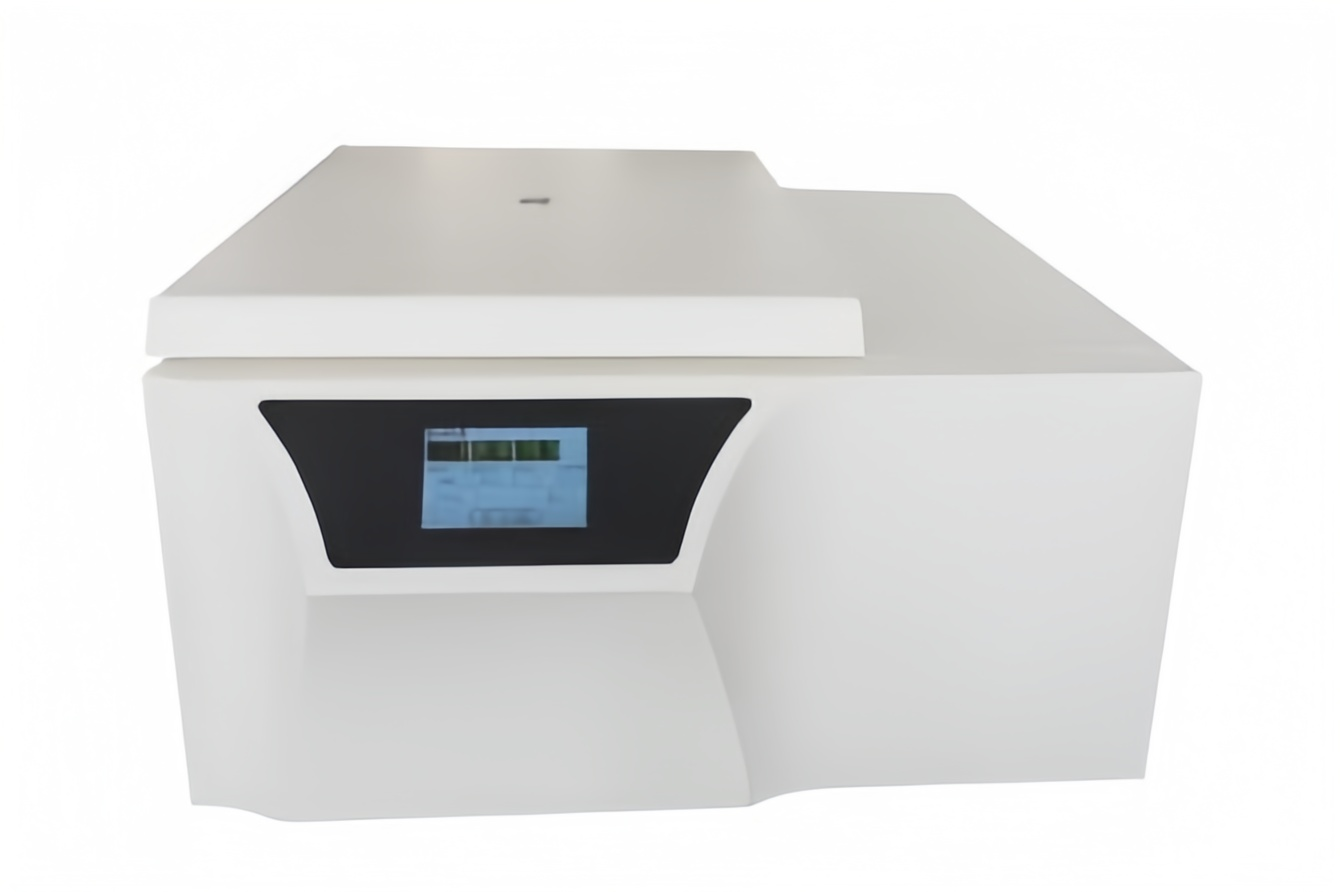

Lab 5-inch HD Touch Screen Table Type Low Speed Refrigerated Centrifuge with Good Centrifugal Effect

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-TDD5KR
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Lab 5-inch HD Touch Screen Table Type Low Speed Refrigerated Centrifuge with Good Centrifugal Effect

Widely used in clinical science, biology, genetic engineering, immunology and other fields, suitable for radioimmunity, water treatment, biology, chemistry, blood products and other solution separation

Instrument characteristics

1.5-inch HD touch screen, easy to operate, intuitive display

2. Automatically identify 4 different rotors to eliminate security risks caused by user misoperation

3. 9 speed up, 10 speed down, effectively prevent secondary suspension, good centrifugal effect

4. Can store 15 groups of programs, standby user calls

5. Ac variable frequency motor, high speed control precision, refrigeration system using imported environmental protection compressor unit

6. Equipped with overspeed, door protection, unbalanced protection and other protection to ensure human and machine safety

7. Free switching of speed and centrifugal force

Techenical parameter

Max speed	6000rmp/m
Max RCF	4390×g
Max capacity	4×750mL
Motor	Ac frequency conversion motor
Speed accuracy	±30r/min
Time range	Timing centrifugation:1min～99 min59sec Continuous centrifugation: Hold
Temperature range	-20℃～+40℃
Temperature accuracy	±1.0℃
Power supply	AC220±22V 50/60Hz 16A
Noise	< 60dB(A)
Dimension (L×D×H)	720×743×410(mm)
Net weight	110kg

Adaptive rotor

No.	Max Speed	Max RCF	Rotor type	Capacity	Dimension of Tube (mm)
No.1	4000rmp/m	2810×g	Horizontal rotor	4x2x100ml(Adaptor available)	Φ37.5×123
	4000rmp/m	2810×g		4x100ml(Adaptor available)	Φ37.5×123
	4000rmp/m	2810×g		4x2x50ml	Φ29×107
	4000rmp/m	2810×g		4x50ml	Φ29×107
	4000rmp/m	2810×g		4x8x15ml	Φ17×118
				4x6x15ml	Φ17×118
				4x4x15ml	Φ17×118
No.2	4200r/min	3500xg		4x250ml	Φ62×110
No.3	4000r/min	3040×g		4×500ml	Φ80×137
No.4	4000r/min	3180×g		4×750ml	Φ99×130
No.5	4000r/min	2670×g	Elisa plate	2×2×96 hole	Elisa plate
No.6	4000r/min	2000×g	Elisa plate	4×2×96 hole	Elisa plate
No.7	4200r/min	3500×g	Horizontal rotor	4×12×7/5ml	Φ13×110
No.8	4200r/min	3500×g	Horizontal rotor	4×18×7/5ml	Φ13×110
No.9	4000r/min	3040×g	Horizontal rotor	4×24×7/5ml	Φ13×110
No.10	5500	3170	Angle rotor	6×50ml	Φ29×120
No.11	6000	4390	Angle rotor	12×10ml	Φ16×83
