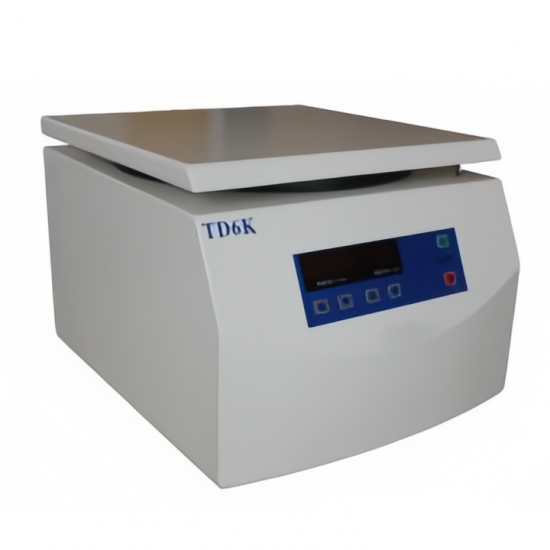

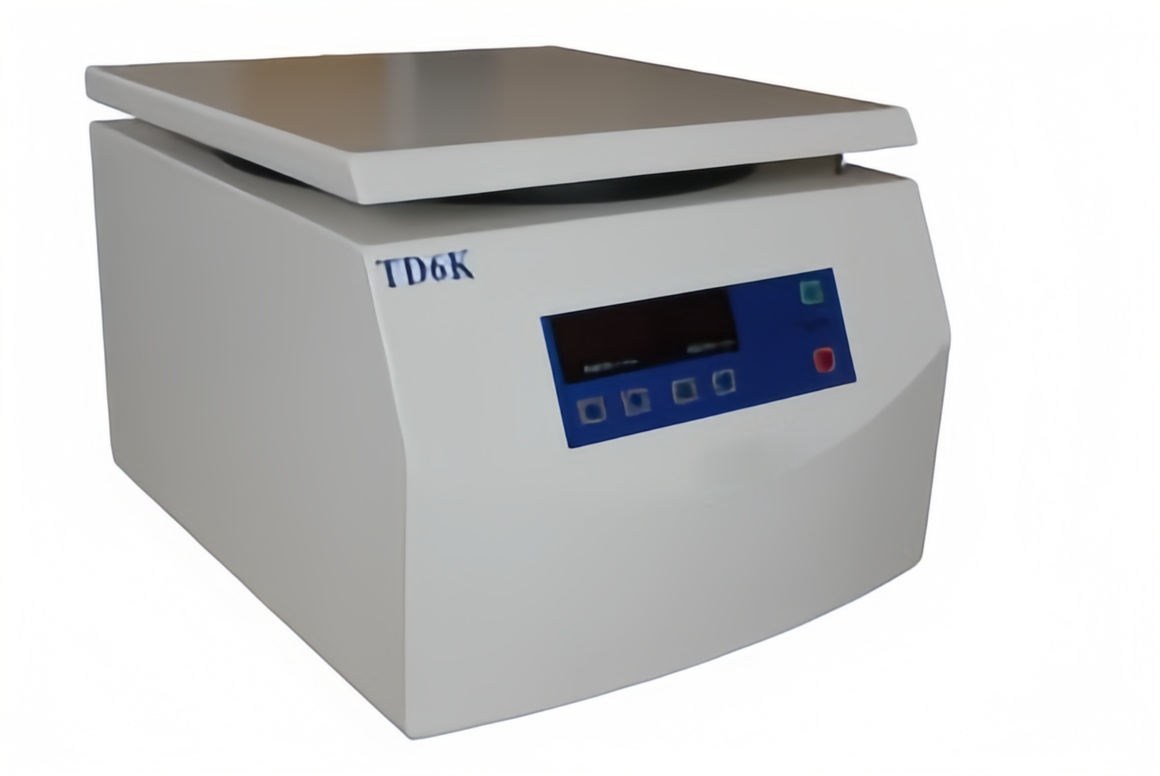

Energy Saving Brushless DC Motor Drive Desktop Low Speed Centrifuge Device

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-TD6K
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Energy Saving Brushless DC Motor Drive Desktop Low Speed Centrifuge Device

Product characteristics

1) Drive: Brushless DC motor drive, maintenance-free, large torque, fast lifting speed, special combination shock absorber to make the motor run smoothly, low vibration, low noise, meet the requirements of environmental protection.

2) Display: Intelligent control, touch panel, intuitive digital display.

3) Fuselage: The fuselage adopts high-quality steel structure, stainless steel centrifugal chamber, durable, easy to clean.

4) Safety protection: Mute motor, integrated electronic lock.

5) Control: Speed, time and other parameters can be directly set, easy to use, suitable for biochemistry laboratory, hospital clinical testing.

Performance parameter

Model number	TD6K
Maximum speed	6000r/min
Maximum relative centrifugal force	5120×g
Maximum capacity	6×50ml
Angle rotor	24×10/6×50ml(6000r/min)RFC:5120×g
Angle rotor	12×10/15ml(6000r/min)RFC:5120×g
Timing range	0～99min
Electric machine	Brushless DC motor, microcomputer control
Power source	AC 220V 50Hz 8A
Overall dimension	430×340×250mm
Weight	20kg
