Maximum Capacity 400ML Advanced Intelligent Benchtop Refrigerated Centrifuge with Rotor Standby Cooling Function

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-TG26KR
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

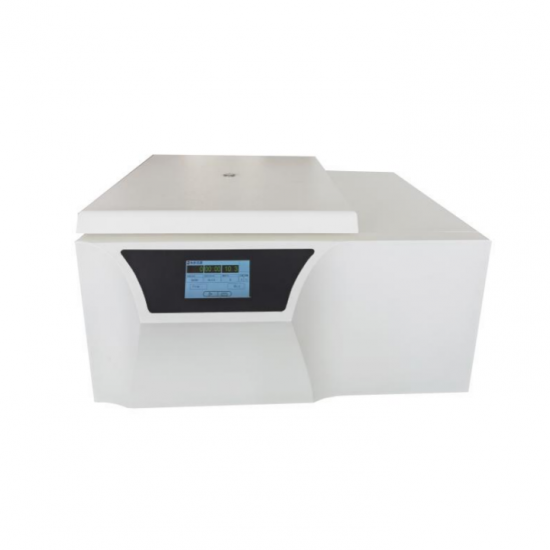

Maximum Capacity 400ML Advanced Intelligent Benchtop Refrigerated Centrifuge with Rotor Standby Cooling Function

This series of centrifuges is an advanced intelligent instrument, which is mostly used for collecting microorganisms, cell fragments, cells, large organelles, sulfuric acid precipitates and immune precipitates.

Drive: AC variable frequency motor drive. with soft brake function to prevent sample resuspension.

Display: Intelligent control, 7-inch HD touch screen, operating parameters can be automatically memorized, RCF can be set directly.

Refrigeration: Using imported fluorine-free compressor units and control valves, small vibration, fast refrigeration, low noise, to meet the requirements of environmental protection.

Rotor: Rotor standby cooling function. Autoclave rotor (121℃·20 min)

Fuselage: Fuselage adopts high quality steel structure; Stainless steel centrifugal chamber, durable.

Security: rotor number identification function, with door cover, overspeed, imbalance and other multiple protection functions, equipped with electronic security door lock to ensure safe operation.

Control: 10 kinds of lifting rate, can store 15 groups of programs, point function, short centrifugation, easy to diversify centrifugation.

Technical parameter

Model number	TG26KR
Maximum speed	26500r/min
Maximum relative centrifugal force	50000×g
Maximum capacity	4×100mL
Motor	Ac variable frequency motor
Speed accuracy	±30r/min
Timing Range	Timing centrifuge:1min～99 min59sec Continuous centrifuge:Hold
Temperature setting range	-20℃～+40℃
Temperature control precision	±1.0℃
Power source	AC220±22V 50/60Hz 16A
Machine noise	≤60dB(A)
Overall dimensions (L×D×H)	720×743×410(mm)
Net weight	110kg

Rotor parameter

No.	Max speed	Max RCF	Rotor name	Capacity
NO.1	26500rmp/m	50000×g	Angle rotor	12×1.5/2.2ml
NO.2	26500r/min	50000×g	Angle rotor	18×0.5ml
NO.3	16000rmp/m	24890×g	Angle rotor	24×1.5/2ml
NO.4	16500r/min	19170×g	Angle rotor	12×5ml
NO.5	15000r/min	23120×g	Angle rotor	12×10ml
NO.6	15000r/min	23640×g	Angle rotor	6×50ml
NO.7	13000r/min	18138×g	Angle rotor	4×100ml
NO.8	13000r/min	14740×g	Angle rotor	48×0.5ml
NO.9	4000r/min	2810×g	Horizontal rotor	4x8x15ml/4×100ml
NO.10	14000r/min	220220×g	Angle rotor	12×15ml
NO.11	4000r/min	2300×g	Elisa plate	2x2x96 hole
