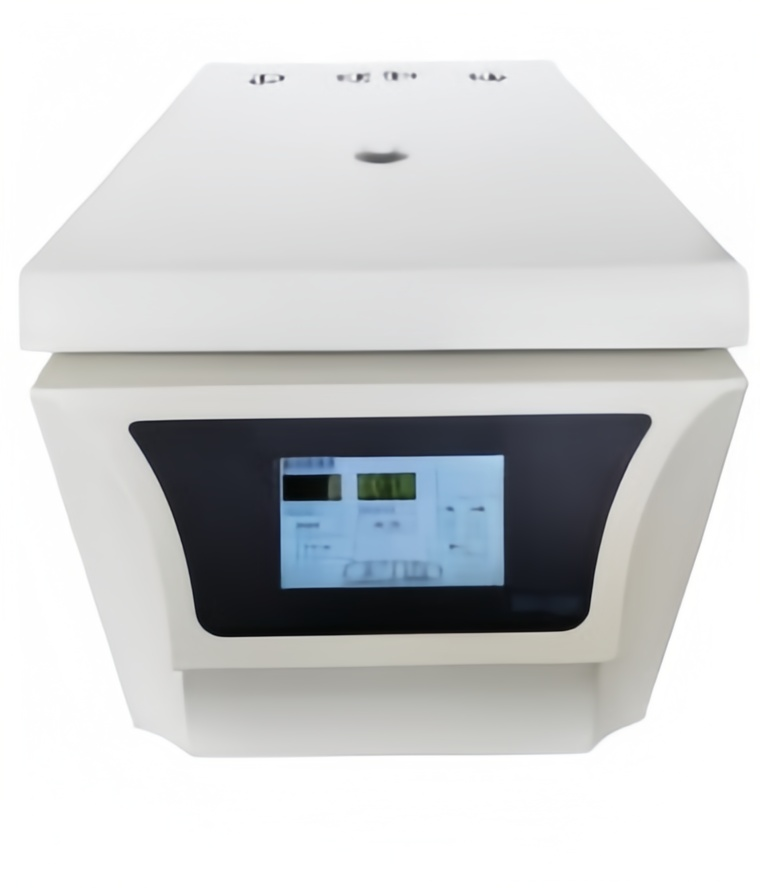

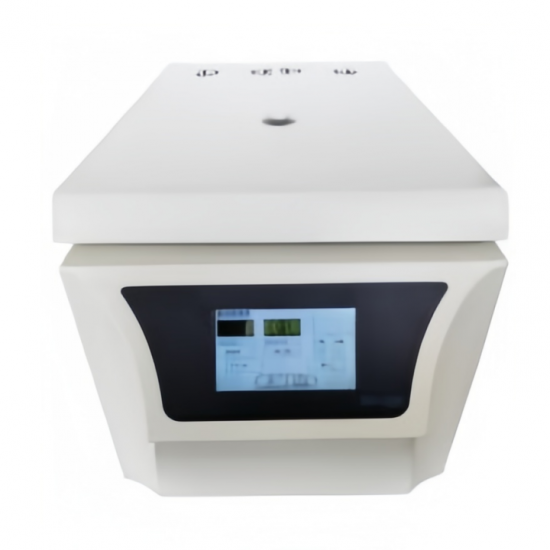

Automatic Benchtop High Speed Refrigerated Centrifuge with Air-tight Rotor

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-DH-R
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Automatic Benchtop High Speed Refrigerated Centrifuge with Air-tight Rotor

Widely used in agriculture, medicine, food hygiene, biopharmaceutical, biological engineering, cell biology and biochemistry and other fields, suitable for the isolation and purification of microbial bodies, cell proteins, molds and immunity.

Instrument characteristics

1.5-inch HD touch screen, easy to operate, intuitive display

2. Automatically identify 9 different rotors to eliminate security risks caused by user misoperation

3.9 speed up, 10 speed down, effectively prevent secondary suspension, good centrifugal effect

4. Can store 15 groups of programs, standby user calls

5. Ac variable frequency motor, high speed control precision imported environmental protection compressor unit

6. Equipped with overspeed, door protection, unbalanced protection and other protection to ensure man-machine safety

7. Free switching of speed and centrifugal force

8. The machine noise is small, the noise is close to silent at the highest speed

9. Air-tight rotor, effectively prevent aerosols

Technical parameter

Model number	DH-16R	DH-18R	DH-20R
Maximum speed	16500r/min	18500r/min	20000r/min
Maximum relative centrifugal force	21380×g	23800×g	27000×g
Maximum capacity	4×100mL	4×100mL	4×100mL
Electric machine	Ac variable frequency motor
Speed accuracy	±30r/min	±30r/min	±30r/min
Timing range	Timing centrifugation :1min ~ 99min59sec Continuous centrifugation :Hold
Temperature setting range	-20℃~+40℃	-20℃~+40℃	-20℃~+40℃
Temperature control precision	± 1.0℃	± 1.0℃	± 1.0℃
Power source	AC220±22V 50/60Hz	AC220±22V 50/60Hz	AC220±22V 50/60Hz
Machine noise	< 55dB(A)	< 55dB(A)	< 55dB(A)
Overall dimensions (L×D×H)	350×662×367(mm)	350×662×352(mm)	350×662×352(mm)
Net weight	50kg	50kg	50kg

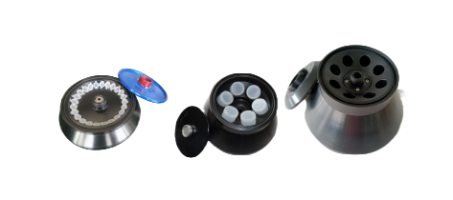

Adaptive rotor

Model number	DH-16R		DH-18R		DH-20R
Capacity	Max speed rmp/m	Max RCF(xg)	Max speed rmp/m	Max RCF(xg)	High speed rmp/m	Max RCF(xg)
Angle rotor 12×1.5/2ml	16500rmp/m	18400×g	18500rmp/m	23800×g	20000rmp/m	27000×g
Angle rotor 24×1.5/2ml	15000rmp/m	21380×g	15000rmp/m	21380×g	16000rmp/m	24327×g
Angle rotor 32×1.5ml	13000rmp/m	19270×g	14000rmp/m	22350×g	15000rmp/m	25658×g
Angle rotor 8×15ml	12000rmp/m	15370×g	13000rmp/m	18040×g	13000rmp/m	18040×g
Angle rotor 12×5ml	12000rmp/m	10100×g	13500rmp/m	12830×g	14500rmp/m	14926×g
Angle rotor 12x10ml	12500rmp/m	16060×g	12500rmp/m	16060×g	14000rmp/m	20160×g
Angle rotor 6x50ml	12000rmp/m	15130×g	13000rmp/m	17760×g	13000rmp/m	18327×g
Angle rotor 4x100ml	10000rmp/m	10620×g	11000rmp/m	12850×g	11000rmp/m	12850×g
Enzyme -labeled rotor 2x2x48 hole	4000rmp/m	2000×g	4000rmp/m	2000×g	4000rmp/m	2000×g
