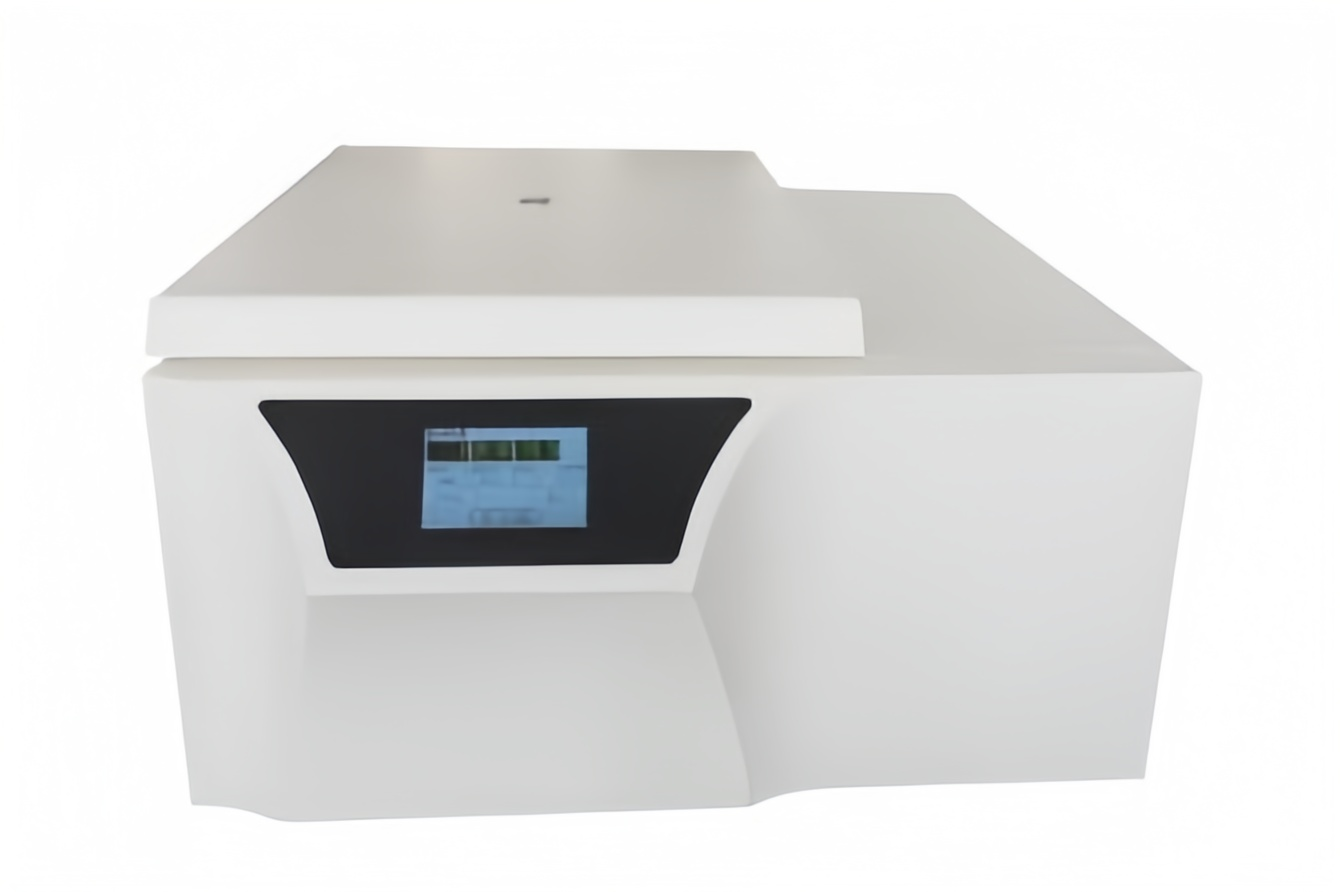

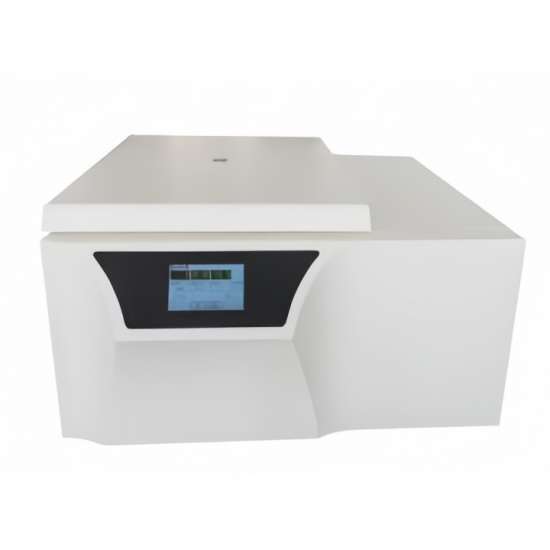

Lab Table Type Low Speed Refrigerated Centrifuge Equipment Widely Used in Clinical Science And Biology

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-DL-50R
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Lab Table Type Low Speed Refrigerated Centrifuge Equipment Widely Used in Clinical Science And Biology

Widely used in clinical science, biology, genetic engineering, immunology and other fields, suitable for radioimmunity, water treatment, biological, chemical, biopharmaceutical, blood products and other solution separation

Instrument characteristics

1.5-inch HD touch screen, easy to operate, intuitive display

2. Automatically identify 4 different rotors to eliminate security risks caused by user misoperation

3.9 speed up, 10 speed down, effectively prevent secondary suspension, good centrifugal effect

4. Can store 15 groups of programs, standby user calls

5. Ac variable frequency motor, high speed control precision, refrigeration system using imported environmental protection compressor unit

6. Equipped with overspeed, door protection, unbalanced protection and other protection to ensure human and machine safety

7. Free switching of speed and centrifugal force

Technical parameter

Model number	DL-50R
Maximum speed	6000rmp/m
Maximum relative centrifugal force	4390×g
Maximum capacity	4×500mL
Electric machine	Ac variable frequency motor
Speed accuracy	±30r/min
Timing range	Timing centrifugation: 1min ~ 99 min59sec Continuous centrifugation: Hold
Temperature setting range	-20℃~+40℃
Temperature control accuracy	±1.0℃
Power source	AC220±22V 50/60Hz 16A
Machine noise	< 60dB(A)
Overall dimensions (L×D×H)	720×743×410(mm)
Net weight	110kg

Adaptive rotor

No.	Rotor type	Max speed	Max RCF	Capacity	Test tube size(mm)
NO.1	Horizontal rotor	4000rmp/m	2810×g	4x2x100ml	Φ37.5×123
	Horizontal rotor	4000rmp/m	2810×g	4x100ml	Φ37.5×123
	Horizontal rotor	4000rmp/m	2810×g	4x2x50ml	Φ29×107
	Horizontal rotor	4000rmp/m	2810×g	4x50ml	Φ29×107
	Horizontal rotor	4000rmp/m	2810×g	4x8x15ml	Φ17×118
	Horizontal rotor			4x6x15ml	Φ17×118
	Horizontal rotor			4x4x15ml	Φ17×118
NO.2	Horizontal rotor	4200r/min	3500xg	4x250ml	Φ62×110
NO.3	Horizontal rotor	4000r/min	3040xg	4x500ml	Φ80×137
NO.4	Elisa plate	4200r/min	2360×g	2×2×96 hole	Elisa plate
NO.5	Horizontal rotor	4200	3500	4×12×7/5ml	Φ13×110
NO.6	Horizontal rotor	4000	3500	4×18×7/5ml	Φ13×110
NO.7	Horizontal rotor	4000	3040	4×24×7/5ml	Φ13×110
NO.8	Angle rotor	5500	3170	6×50ml	Φ29×120
NO.9	Angle rotor	6000	4390	12×10ml	Φ16×83
