Item No.:
TMAX-TD5K-ⅢPayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
5 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:
Two years limited warranty with lifetime technical support

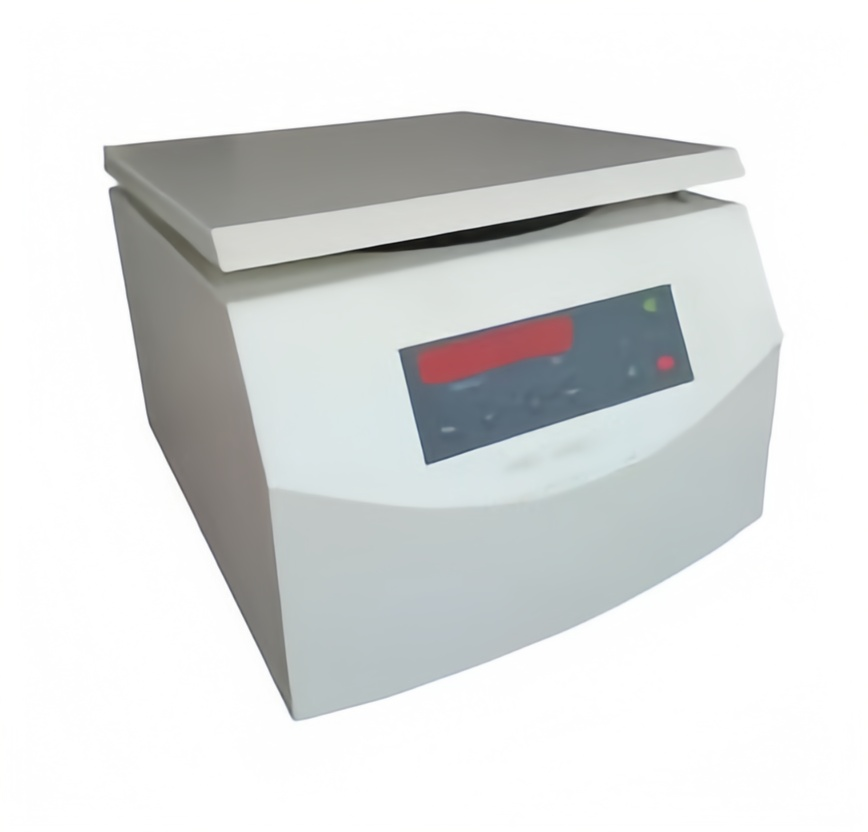

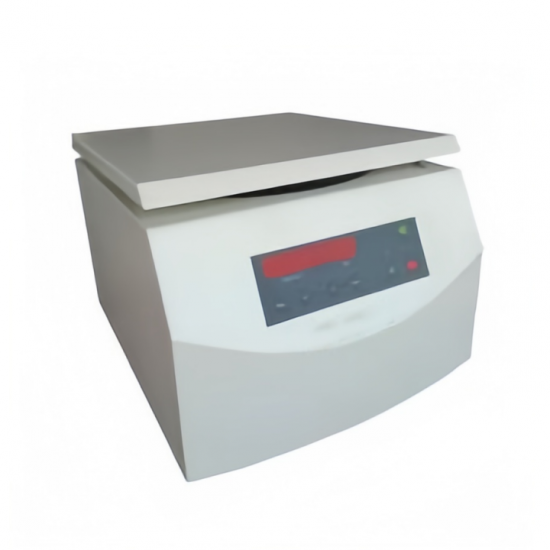

5000RPM Benchtop Small Capacity Low Speed Centrifuge with Microcomputer Control
The separation technology of this series of centrifuges is a new technology developed according to the state of the particles in a practical centrifugal occasion, which is suitable for the experimental and scientific research work in biochemistry, hospital clinical examination and other fields.
Product characteristics
1) Drive: Brushless DC motor drive, maintenance-free, large torque, fast lifting speed, special combination shock absorber to make the motor run smoothly.
2) Display: Intelligent control, touch panel, intuitive digital display, operating parameters can be automatically memorized, RCF can be set directly.
3) Fuselage: The fuselage adopts high-quality steel structure, stainless steel centrifugal chamber, durable, easy to clean.
4) Safety protection: It has multiple protection functions such as door cover, overspeed and imbalance to ensure safe and reliable operation.
5) Control: Speed, time and other parameters can be directly set, easy to use.
Performance parameter
Model number |
TD5K-Ⅲ |
Maximum speed |
5000r/min |
Maximum relative centrifugal force |
4020×g |
Maximum capacity |
6×50ml |
Speed accuracy |
±30r/min |
Timing range |
0~99min |
Machine noise |
≤58dB |
Electric machine |
Brushless DC motor, microcomputer control |
Power source |
AC 220V 50Hz 8A |
Overall dimension |
430×340×250mm |
Weight |
20kg |
Adaptive rotor and centrifuge tube
Rotor type |
Max capacity |
Max speed |
Max RCF |
Centrifugal tube size |
Angle rotor |
12×20ml |
5000r/min |
4020×g |
|
Angle rotor |
6×50ml |
5000r/min |
4020×g |
|
Angle rotor |
24×10ml |
5000r/min |
4020×g |
|
Angle rotor |
12×15ml |
5000r/min |
4020×g |
Φ28×105-115 |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
