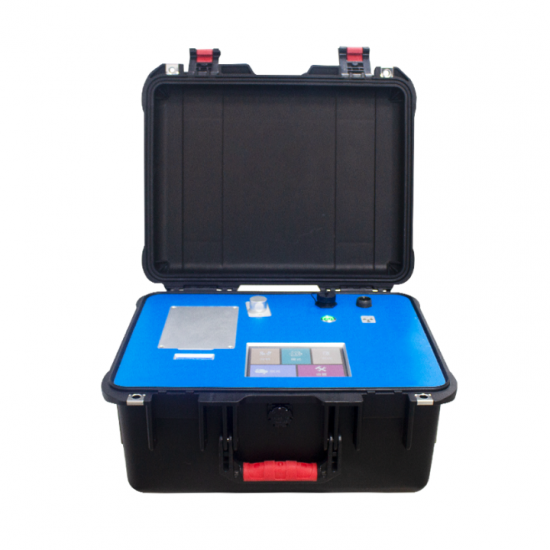

Ultra Low Sulfur Portable Industrial Oil Analyzer

Ultra-low sulfur OIL analyzer is an XRF analysis instrument specially designed for OIL detection by LITH. It integrates wave acoustic multi-year XRF research and development technology, crystal grating spectroscopic technology and highly intelligent XRF analysis software. It has the advantages of small, portable, simple operation, fast and accurate. It can quickly detect the sulfur content in gasoline, diesel, distillate, jet fuel, ethanol gasoline, residual oil, lubricating oil, crude oil and other oil products. It is an ideal tool for law enforcement and detection of ecological environment departments and transportation departments.



Advantage

Portable

Waterproof and dustproof box (IP67 waterproof and dustproof grade) all-in-one machine design, portable test platform, so that the field detection and laboratory analysis in one, one-button test, simple operation, automatic detection, no correction, free laboratory/field scientific research.



Strong adaptability

Specially developed for quick on-site analysis, the instrument can be fog-proof, dust-proof, shock-proof, can adapt to the harsh environment.



Heat dissipation

The instrument is equipped with a special two-way ventilation heat dissipation device to improve the heat dissipation performance of the instrument.



Safety

It has professional multiple protective radiation treatment (sample chamber radiation shielding measures, safety linkage lock device), no radiation leakage in all directions of the instrument during measurement.



Data printing

It is equipped with a portable Bluetooth printer, while the data can be EXCEL, PDF format output, users can create custom reports.



Application scenario



Oil analysis

It is mainly used to analyze the sulfur content of automobile gasoline, diesel oil, distillate, jet fuel, kerosene, biodiesel, biodiesel blending fuel, ethanol gasoline, naphtha, residual oil, lubricating oil, crude oil and other liquid oil products



Chemical testing

suitable for petrochemical enterprises raw material screening, finished products, quality control and other links



Law enforcement detection

suitable for environmental protection supervision departments, quality supervision departments to screen the quality of oil, including but not limited to heavy road cargo transport vehicles, non-road mobile machinery, gas stations, petrochemical enterprises, ship fuel and other law enforcement testing



Product parameter

Weight	8.9KG
Size	400*340*195mm（L×W×H）
Excitation source	Air cooled X-ray tube
X-ray tube target	Cu target or Co, Cr, Fe, Ni, Mo, Ag, W target (optional according to test sample)
X-ray tube voltage	Maximum 50kV, 0-50kV adjustable
X ray tube power	Maximum 50W, 0-50W adjustable
Crystal	Hyperboloid curved crystal
The detector	level 2 Pelter refrigeration CCD
Display	5.7 inch
Detection range	Mg—U
The battery	Equipped with intelligent lithium battery, a single battery can work for 4 hours, the laboratory environment can also be powered by adapter.
Working temperature	-20℃~50℃
Working humidity	20%~90%RH
Data output	USB, GPS，4Gcommunication
Measuring time	30~600s
Detection limit	optimal125eV
Repetitive	≤5%
System processor	Based on the I. MX 6 Quad quad-core Cortex-A9 processor Dedicated analysis-level operating system 80MHz ADC digital pulse processor 4096 MCA channel, 32 GB memory

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
