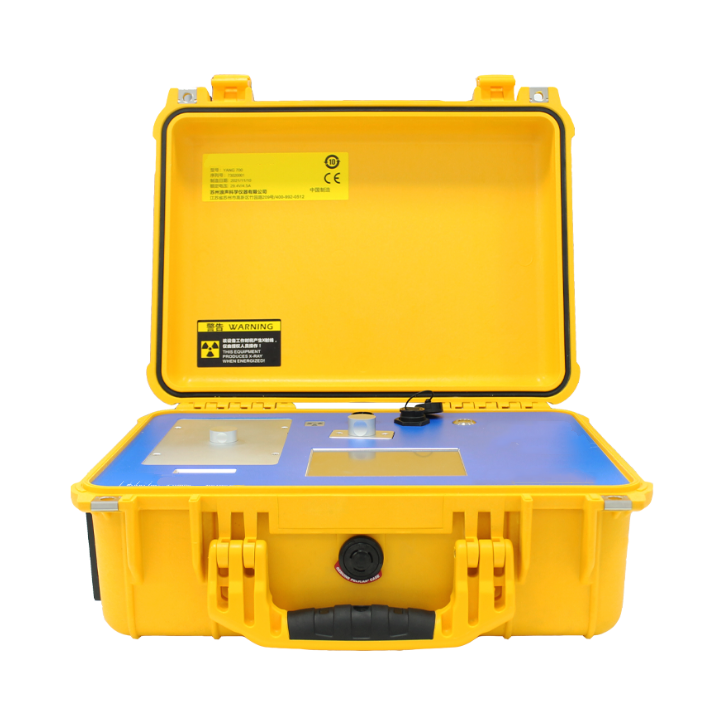

Industrial Portable Food Grain Heavy Metal Analyzer with Hyperboloid Curved Crystal

Food heavy metal rapid analyzer is an XRF analytical instrument specially launched in the field of food security, used for rapid detection of cadmium, lead, mercury and other heavy metal elements in food. Its integration of TMAX years of XRF research and development technology, crystal grating spectroscopic technology and basic parameter method and a number of high-end technologies, with small and portable, simple operation, fast and accurate advantages, can quickly improve the efficiency of on-site detection, escort for food security.



Advantage

Portable

Waterproof and dustproof box (IP 67 waterproof and dustproof grade) all-in-one machine design, portable test platform, so that the field detection and laboratory analysis in one, one-button test, simple operation, automatic detection, no correction, free laboratory/field scientific research.



Applicability

Specially developed for quick on-site analysis, the instrument can be fog-proof, dust-proof, shock-proof, can adapt to the harsh environment.



Heat dissipation

The instrument is equipped with a special two-way ventilation heat dissipation device to improve the heat dissipation performance of the instrument.



Safety

With professional multiple protective radiation treatment (sample chamber radiation shielding measures, safety linkage lock device), no radiation leakage in all directions of the instrument during measurement.



Cloud service

The device is equipped with a mobile application service that can be controlled synchronously. The mobile application service can operate data, labels and other information. Transmission and management, easily realize system data docking and sharing.



Data printing

Equipped with portable Bluetooth printer, the data can be output in Excel and PDF format, and users can create customized reports.



Sampling system

The equipment adopts the sample side injection detection method (the plane of detector beryllium window is perpendicular to gravity direction) to reduce the risk of detector beryllium window being damaged by grain, small particles and detector surface contamination.



Application scenario



Food reserves and circulation



Grain production link



Government Agency Regulation



Food safety certification



Product parameter

Weight	12KG
Size	418 × 330 × 173mm（L×W×H）
Excitation source	Air cooled X-ray tube
X-ray tube target	Cu, Co, Cr, Fe, Ni, Mo, Ag, W target (optional)
X-ray tube voltage	The maximum is 50kV, and the equivalent rate of X-ray radiation measurement is less than 0.2μSv/h
X ray tube power	Maximum 50W, adjustable 0-50W
Crystal	Hyperboloid curved crystal
The detector	Stage 2 Peltier refrigeration SDD detector
Display	5.7-inch, industrial grade color touch screen
Scope of element	Mg—U
The battery	Equipped with lithium battery, can continuously test the number of samples ≥50, the laboratory environment can also be used through the adapter power supply.
Working temperature	-20℃~50℃
Working humidity	20%~90%RH
Data output	USB, Bluetooth, GPS, 4G communication
Measuring time	80-300S
Resolution	The optimal 125 ev
Analytical Systems Language	Chinese, English and other languages
Analysis system language	Dedicated Analytics level Android embedded operating system Based on the I. MX 6 Quad quad-core Cortex-A9 processor 80MHz ADC digital pulse processor 4096 MCA channel, 32 GB memory

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
