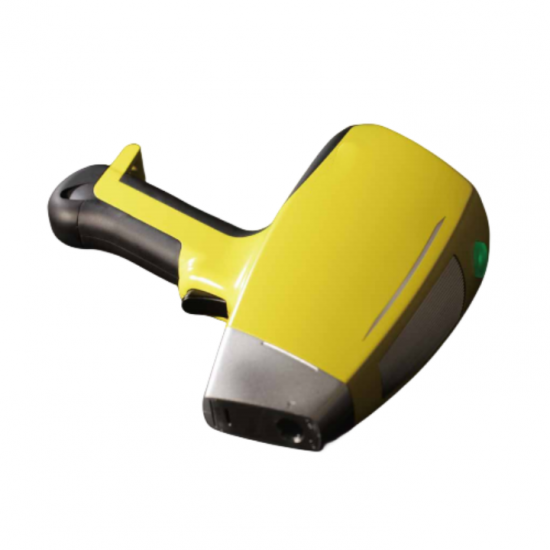

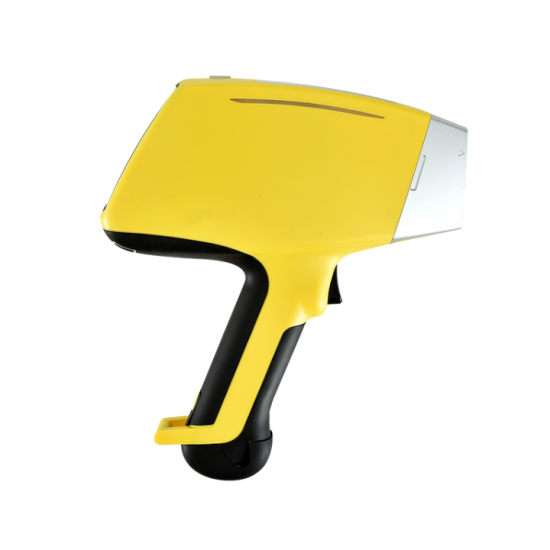

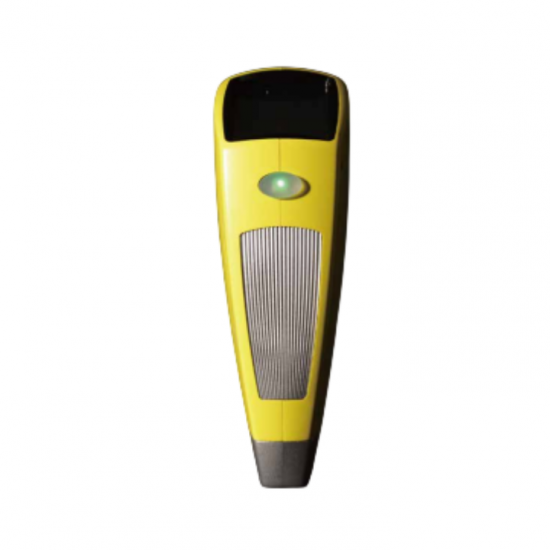

GOLD Handheld Portable Precious Metals Analyzer

Product introduction

Precious Metals analyzer can nondestructively analyze element content in gold, silver and platinum group metals, as well as non-precious alloy metals and gold-plated samples. GOLD Precious Metals Analyzer is more efficient and portable than traditional tin assay, nickel matte assay, etc. It is widely used in jewelry manufacturing and recycling, industrial catalyst, electronic devices and other fields.



Advantage

Accurate and reliable qualitative and quantitative methods

It integrates Super FP algorithm of wave acoustic front, calibration curve method and other advanced algorithms, making the instrument not only faster measurement speed, higher measurement accuracy, stronger measurement consistency.



Easy customization

On the basis of testing, it provides a variety of custom Settings. You can change test conditions according to detection needs, or change thresholds according to screening needs, so as to realize personalized screening of different materials and elements.



Multiple forms of data output

Analytical data reports can be made in PDF format or Excel format. When exporting data in Excel format, you can also confirm and edit the data in detail in the table. Users can also create customized professional reports, including company logo, company address, test results, spectrogram and other sample information (such as product description, origin, batch number, etc.).



Facilitate the management

Through hierarchical permission management, operators can use different user names and passwords to log in to the system and bind test reports to testers. Various test report output formats (EXCEL, PDF, etc.), and test report content can be customized to meet different test data management needs.



One-button intelligent operation

The whole analysis process can be completed in just a few seconds. The operation is simple and even non-technical people can easily master it.



Application scenario



Finished color inspection of incoming materials, process abrasives, recycled materials and finished products of the jewelry factory



Detection of recycled components of precious metals/gold products of banks



Finished product inspection of the gold store and jewelry recycling component inspection



Assessment of pawn value of precious metals and jewelry in pawnshops



Laboratory and college teaching of gold, silver and precious metals testing institutions



Product parameter

Weight	1.6KG (with battery)
Size	254×79×280mm（L×W×H）
Excitation source	50kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional)
Detection range	Mg—U
Detector	Si-Pin detector/SDD detector
Display system	4.3 "industrial grade resistance touch screen Automatically adjust display brightness according to external environment brightness
Data processing	Built-in 32GB storage USB,  can connect the device to the Internet, remote setting and maintenance of the instrument
Heat dissipation	T-slot radiator
Security	Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection Waterproof, dustproof and shockproof carrying case LANScientific special safety rope
Power system	Intelligent battery with MSBUS, real-time monitoring battery, spare battery can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations A single battery can work for about 8 hours



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
