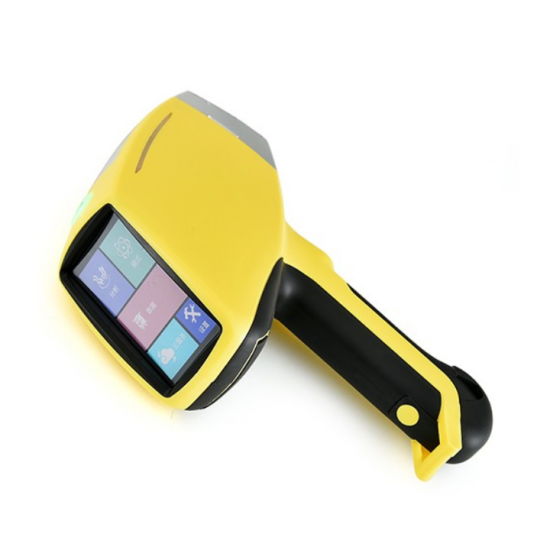

Portable Handheld Car Catalyst Analyzer

Product introduction

Most of catalyst for Pt and Pd, Rh, and other rare metals, different types of catalytic converter contains different levels and types of precious metals, due to which the value of precious metals, for it is very important for the quality detection and recovery appraisal, therefore the precious metal content of the ternary catalysts, test equipment is necessary.

TrueX handheld car catalyst analyzer can be used to accurately measure platinum, palladium, rhodium and other elements in terraditional catalytic converters, providing rapid material composition analysis information in the field, with high accuracy, speed, and nondestructive advantages.



Advantage

Fast and efficient

It can detect the element composition and content of sample in a few seconds.



Light and durable

The weight is only 1.6kg, specially designed for the site, easy to carry.



Easy to operate

Large and bright touch screen, user-friendly interface, simple operation, easy to use staff.



Transmission

Multiple methods for data transmission, support export report personalized Settings.



Application scenario



Catalytic products raw material testing



Ternary catalysis product identification



Quality control in catalytic product manufacturing



Recycling and evaluation of three-way catalytic converter



Product parameter

Weight	1.6KG (with Battery)
Size	254×79×280mm（L×W×H）
Excitation source	Up to 50kV/200μA, Voltage and current can be adjusted freely, W/Ag/Rh target (optional)
Detection Range	Pt, Pd, Rh and other elements
Detector	Si-pin/SDD
Display	4.3 inches industrial grade resistance touch screen Automatically adjust display brightness according to external environment
Data Processing	Built-in 32GB storage USB,  can connect the device to the Internet, remote setting and maintenance of the instrument
Lauguage	Chinese, English, etc.
Security	Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection Waterproof, dustproof and shockproof carrying case LANScientific special safety rope
Power Supply	Intelligent battery with MSBUS, can directly check the remaining capacity of the battery the battery complies with the air dangerous goods transport regulations A single battery can work for about 8 hours



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
