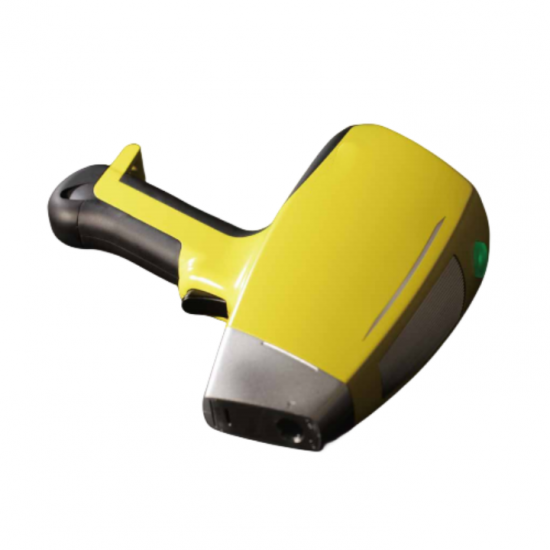

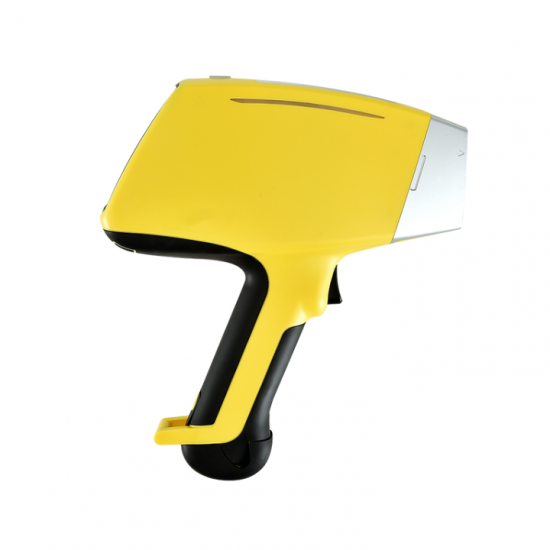

High Precision Mini Handheld Portable Mineral Analyzer with Industrial Resistance Touch Screen

Product introduction

The Mineral Analyzer provides rapid and accurate elemental analysis results with little or no sample preparation at all stages of a mining operation, from grassroots exploration and development, to ore grade control, and even environmental investigations. Sample density increases compared to traditional laboratory methods. Save time, worry and effort.



Advantage

Portable

The instrument is smaller in size and lighter in weight, so it is easy to carry.



Industrial resistance touch screen

4.3-inch industrial resistance touch screen, compared with capacitor screen, has better backlight performance, can still be clearly visible under strong light in the field, and avoid the risk of removing gloves in special outdoor environment.



User-defined

Users can create customized professional reports, including company logo, company address, test results, spectrograph and other sample information (such as product description, origin, batch number, etc.



High precision

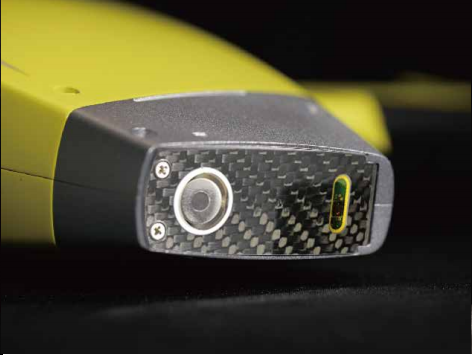

Imported high-performance X-ray tubes and high-resolution detectors, combined with digital multi-channel processing technology, make TrueX handheld ore analyzer with higher analysis accuracy.



GPS system

It can combine the built-in GPS latitude and longitude data and altitude data and import third-party GIS analysis software to build three-dimensional geographical distribution map of element content, so as to quickly assess mineral reserves or geological environmental disaster areas.



Application scenario



Analysis of mineral processing grade in geological prospecting



Mineral research



Tailings processing



Slag reuse



Product parameter

Weight	1.6KG (with battery)
Size	254 x 79 x 280 mm (L x W x H)
Excitation source	550kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional)
Detector	Si-Pin/SDD
Detection range	Mg—U
Display system	4.3 "industrial grade resistance touch screen Automatically adjust display brightness according to external environment brightness
Data processing	32GB storage USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Security	Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection Waterproof, dustproof and shockproof carrying case Safety rope
Power system	Intelligent battery with MSBUS, real-time monitoring battery, can directly check the remaining capacity of the battery, the battery complies with the air transport of dangerous goods regulations A single battery can work for about 8 hours
Language	Chinese, English, etc.



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
