Benchtop Industrial Fluorescence Copper Brass Bronze Alloy Analyzer

Benchtop Industrial Fluorescence Copper Brass Bronze Alloy Analyzer

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-CA
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

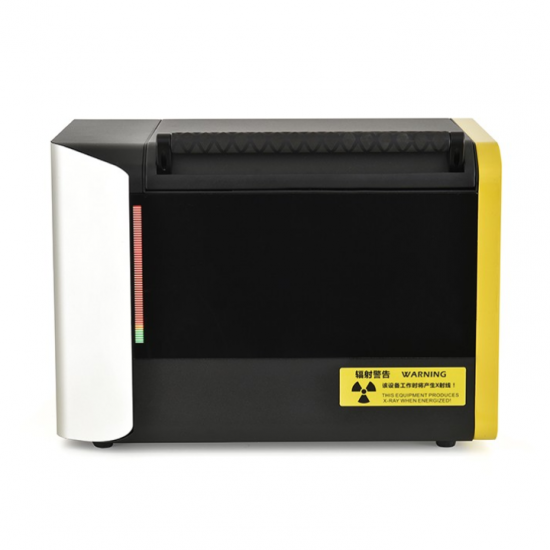

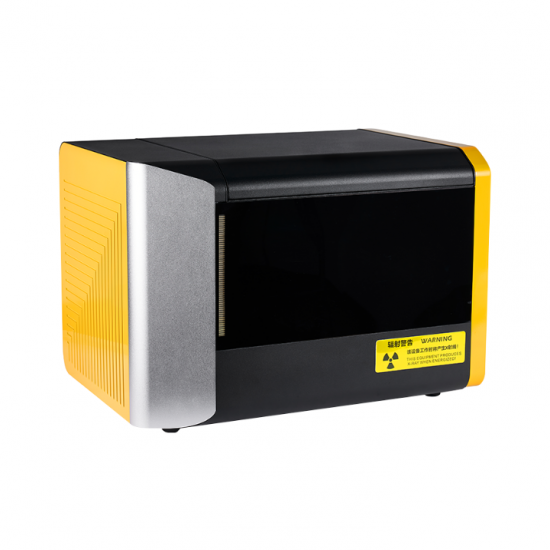

Benchtop Industrial Fluorescence Copper Brass Bronze Alloy Analyzer


Metal Analyzer




ScopeX Copper Alloy Analyzer is an X-ray fluorescence analyzer designed for rapid analysis and identification of copper alloys. It has the advantages of high accuracy, wide range of analyzable elements, simple and fast testing, and can be used for rapid analysis of anode copper, brass, bronze, gun copper and other copper alloys. It is widely used in iron and steel smelting, non-ferrous metals, aerospace, weapons manufacturing, submarines and other industries.



Advantage

Data transmission

USB, WIFI, wireless Bluetooth and other methods for data transmission.



A variety of collimator, filter automatic switch

5mm, 3mm, 1mm, 0.5mm four kinds of collimators, collimator and filter can be automatically switched by the software, save time and effort, through the appropriate collimator and filter or filter can improve the detection accuracy and sensitivity.



User-defined

The file can be in EXCEL, PDF and other formats. Users can customize the test report, including company logo, spectral spectrum and other sample information.



Safety

Fully enclosed metal chassis and leakage protection switch, more scientific design, hardware and software coordination, mechanical and electrical linkage, radiation safety in line with international standard.



Application scenario




Recovery and sorting of waste copper alloy





Quality control and assurance of copper alloy





Identification of copper alloy raw material/grades



Product parameter

Range of element

Na—U

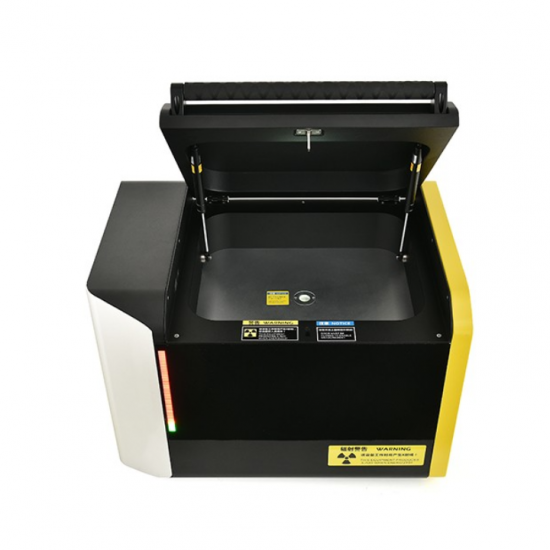

Sample room size

365×300×78mmL×W×H

Maximum sample weight

0-2.5KG

Cover open

Automatic

Mainframe size

570×400×400mm

Weight

47KG

X-ray tube

High power side window X-ray tube50W, pipe pressure pipe flow can be adjusted freely, W/Ag/Rh target (optional)

Voltage

Up to 50kV

Current

Maximum 1mA

Cooling method

Air cooling

Type

Si-pin/SDD(Optional)

Test environment

Air mode, Vacuum mode(optional), Helium mode (optional)

Sample Observation

5 megapixel HD industrial camera

CPU

 is I3-7100 with the same main frequency or above

RAM

DDR4 4 GB memory or above

ROM

1TB HDD or 256GB SSD or above

OS

Windows 10

Temperature conditions

10°C~35°C

Relative humidity

40%-70% No condensation

Power supply

220VAC

Rated power

100W








 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
