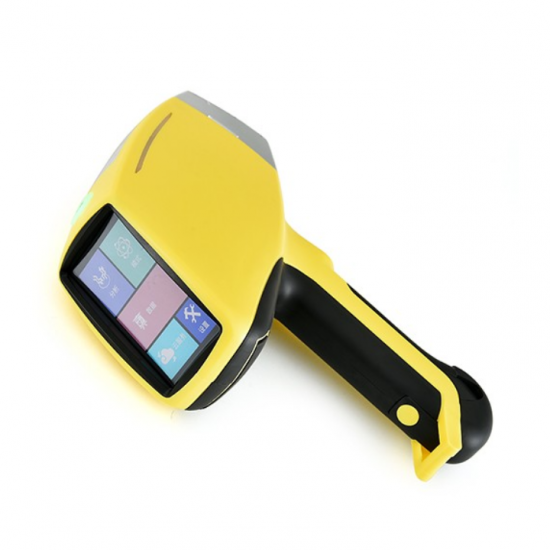

Handheld XRF Jewelry Environmental Assessment Analyzer

The handheld XRF analyzer is a powerful handheld XRF equipment launched by our company, featuring fast detection, ruggedness and small convenience. It can help users obtain laboratory - comparable results in the field environment. It is widely used in waste recycling, environmental assessment, RoHS compliance, consumer product safety, metal materials, metal jewelry and other fields.



Advantage

High performance configuration

Low-energy X-rays combined with an intelligent vacuum system can have a good excitation effect on light elements such as Si, P, S, Al, and Mg. XRF technology can be used to analyze key elements with high content such as Cr,Niand Mo.



High performance configuration

Low-energy X-rays combined with an intelligent vacuum system can have a good excitation effect on light elements such as Si, P, S, Al, and Mg. XRF technology can be used to analyze key elements with high content such as Cr,Niand Mo.



NDT

It does not damage or affect the performance of the tested object, does not damage the internal tissue of the tested object, and has no damage in the entire testing process.



Peltier refrigeration

The advanced Peltier electric refrigeration method does not require liquid nitrogen, which reduces the complexity of equipment use and saves manpower and equipment maintenance costs.



Data transmission

USB, WIFI, wireless Bluetooth and other methods for data transmission.



Custom

The files can be in EXCEL, PDF and other formats, and users can create custom test reports: including company logo, spectrum and other sample information.



Safety

Fully enclosed metal case and anti-leakage protection switch, more scientific in design, coordination of software and hardware, electromechanical linkage, radiation safety in line with the requirements of national standards GB18871-2002 and GBZ115-2002.



Application scenario



Metal materials

PMI, QA/QC, waste sorting, etc.



Environmental assessment

soil detection, solid waste detection



Consumable safety screening

RoHS compliance screening



Geology and chemistry

mineral exploration, ore detection



Precious metal detection

jewelry/precious metal identification, automobile catalyst detection





Product parameter

Weight	1.6KG (with battery)
Size	254×79×280mm（L×W×H）
Excitation source	Up to 50kV/200μA, Voltage and current can be adjusted freely, W/Ag/Rh target (optional)
Detection Range	Mg—U
Display System	4.3 inches industrial grade resistance touch screen Automatically adjust display brightness according to external environment
Data Processing	Built-in 32GB storage USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Heat dissipation	T-slot radiator
Security	Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection Waterproof, dustproof and shockproof carrying case LANScientific special safety rope
Power Supply System	Intelligent battery with MSBUS, can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations A single battery can work for about 8 hours

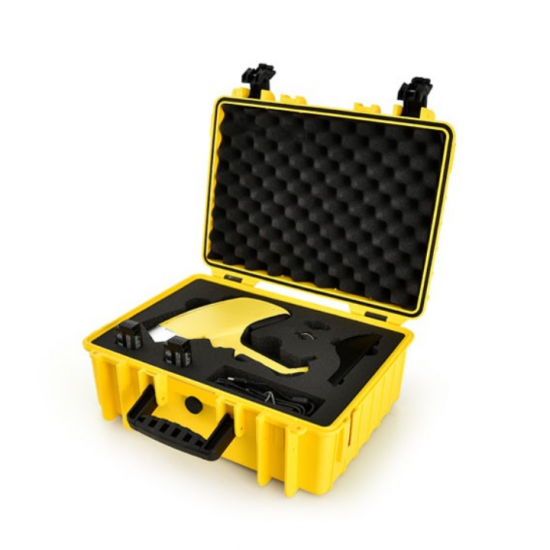

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
