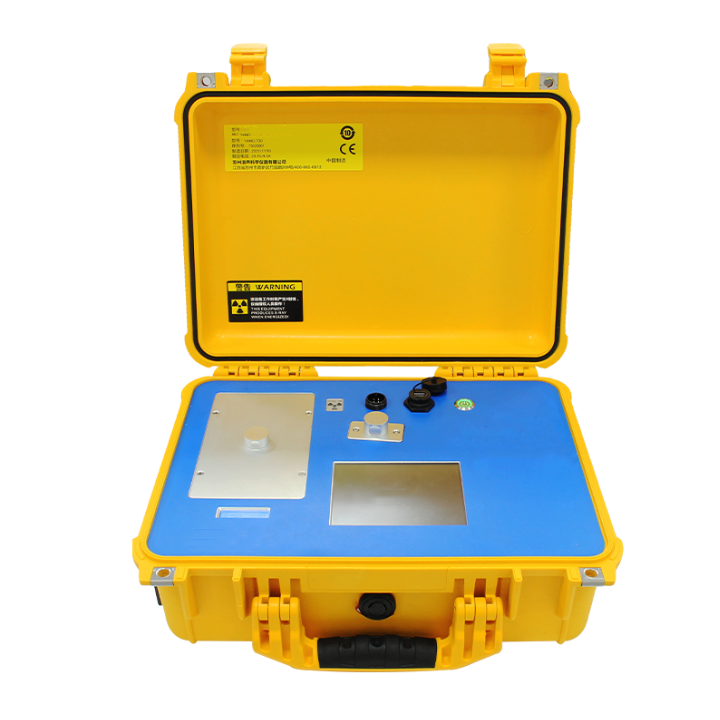

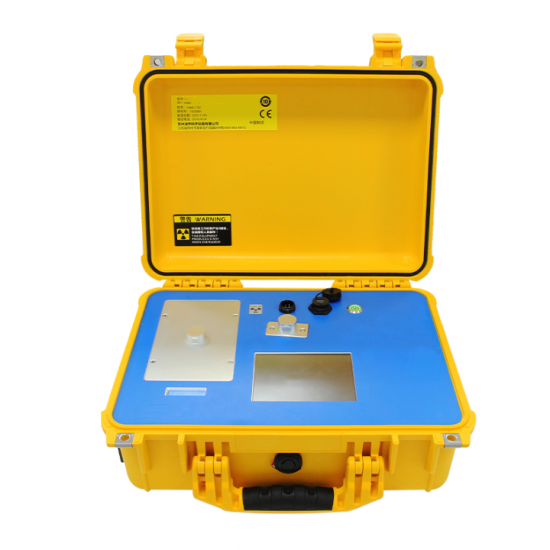

Soil Heavy Metal Industrial Portable Analyzer

XRF spectrometer is a new generation of XRF analytical instrument launched by TMAX. Its blend of many years of XRF experience, crystal grating spectrometer technology and high intelligent XRF analysis software. It is small, portable, simple operation, fast, accurate, safe and reliable. It is  ideal choice of soil heavy metal pollution monitoring, food safety.



Advantage



Portable

Waterproof and dustproof box (IP 67 waterproof and dustproof grade), portable test platform, so that the field detection and laboratory analysis in one, simple operation, automatic detection, no calibration, free laboratory/field scientific research.



Applicability

Specially developed for quick on-site analysis, the instrument has fog-proof, dust-proof, shock-proof,  can adapt to the harsh environment.



Safety

With professional multiple protective radiation treatment (sample chamber radiation shielding, safety linkage lock device), no radiation leakage in all directions of the instrument during measurement.



Data printing

Equipped with portable Bluetooth printer, the data can be output in Excel and PDF format, and users can create customized reports.



Simple sample preparation

Simple sample preparation, and do not need to go through complex pre-processing. The instrument uses an integrated sample cup and sample film, which do not need to be manually attached on site, so as to avoid error in the sample preparation process and prevent sample contamination.



Heat dissipation

The instrument is equipped with a special two-way ventilation heat dissipation device to improve the heat dissipation performance of the instrument.



Cloud service

The device is equipped with mobile applications that can be controlled synchronously. The mobile application services can operate, transmit and manage data, labels and other information, easily realizing system data docking and sharing.



Application scenario



It can analyze and detect heavy metal elements in water (such as industrial waste water, municipal waste water, etc.), including lead, arsenic, cadmium, zinc and dozens of elements



Soil, clods, wet sediments, silt and liquid materials can be measured for the 8 metals specified in the RCRA (less than 10PPM) and for the contaminated metals that need priority detection



It can be used in the determination of sudden environmental pollution accidents and regional pollution monitoring.



Product parameter

Weight	12KG
Size	418 × 330 × 173mm（L×W×H）
Excitation source	Air cooled X-ray tube
X-ray tube target	Cu target or Co, Cr, Fe, Ni, Mo, Ag, W target (optional according to test sample)
X-ray tube voltage	The maximum is 50kV, and the equivalent rate of X-ray radiation measurement is less than 0.2μSv/h
X ray tube power	Maximum 50W, adjustable 0-50W
Crystal	Hyperboloid curved crystal
The detector	Stage 2 Peltier refrigeration SDD detector
Display	5.7-inch, industrial grade color touch screen
Scope of element	Mg—U
The battery	Equipped with lithium battery, can continuously test the number of samples ≥50, the laboratory environment can also be used through the adapter power supply.
Working temperature	-20℃~50℃
Working humidity	20%~90%RH
Data output	USB, Bluetooth, GPS, 4G communication
Measuring time	30-1800 - s
Resolution	optimal125 ev
Analytical Systems Language	Chinese, English and other languages
Analysis system language	Dedicated Analytics level Android embedded operating system Based on the I. MX 6 Quad quad-core Cortex-A9 processor 80MHz ADC digital pulse processor 4096 MCA channel, 32 GB memory
