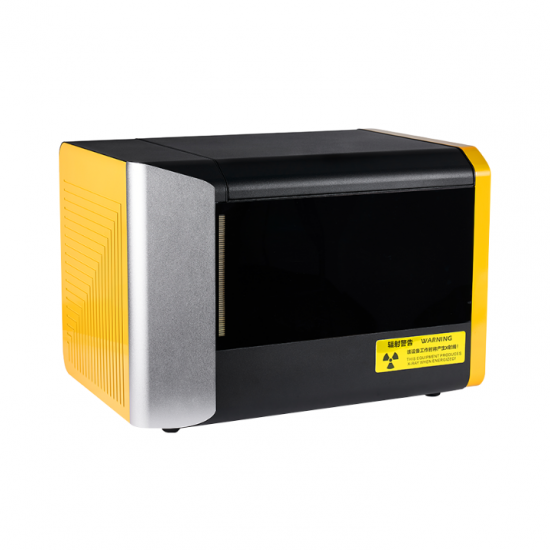

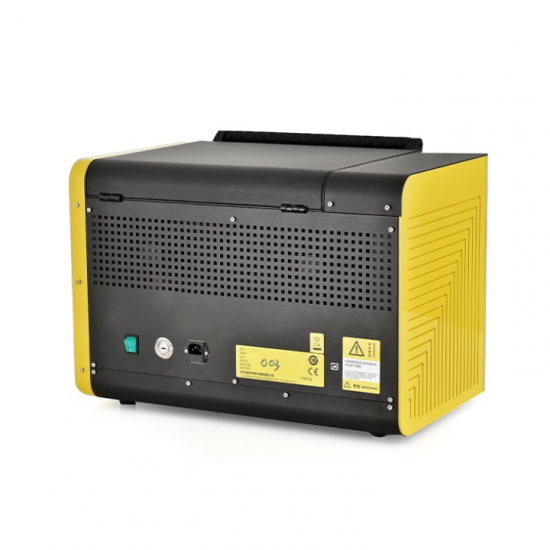

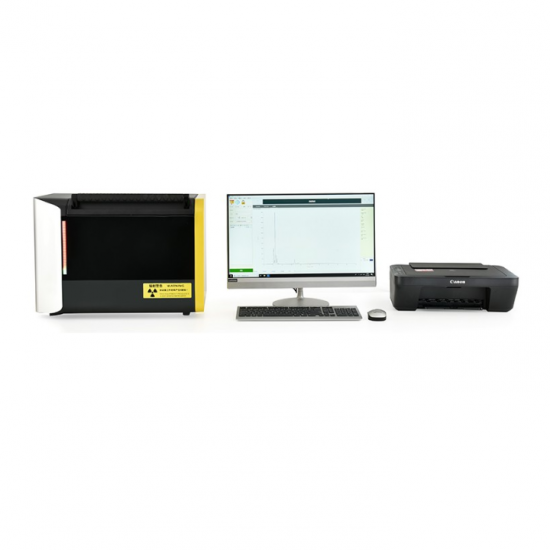

Coal ASH Metal Alloy Analyzer Industrial Benchtop

ScopeX ASH analyzer is designed for coal ash composition analysis in coking enterprises. Equipped with intelligent software and high-quality hardware, the ScopeX ASH ASH analyzer features wide linear range, fast analysis, high reproducibility and high accuracy. It is widely used in cement, iron and steel smelting, mineral development smelting, refractory materials, powder metallurgy, petroleum exploration, logging analysis, rare earth materials, environmental monitoring, non-ferrous metals, food, agriculture, scientific research institutes, universities, industrial and mining enterprises and other fields.



Advantage

High performance configuration

Low energy X-ray with intelligent vacuum system, Si, P, S, Al, Mg and other light elements have a good excitation effect, XRF technology can be used to analyze the high content of Cr, Ni, Mo and other key elements.



A variety of collimator, filter automatic switch

5mm, 3mm, 1mm, 0.5mm four kinds of collimator, collimator and filter can be automatically switched by the software, save time and effort, through the appropriate combination of collimator and filter can improve the detection accuracy and sensitivity.



Nondestructive testing

Without damaging or affecting the performance of the tested object, the whole test process without any damage.



Peltier refrigeration

Peltier electric refrigeration without liquid nitrogen. Reduce the complexity of the device, and save manpower and equipment maintenance costs.



Data transmission

USB, WIFI, wireless Bluetooth and other methods for data transmission.



Application scenario



Coal mining, coal washing, coal blending



Coking, coal gasification



Coal power, petrochemical industry

Ore exploration and development, rock, core, rare earth element analysis



Metal alloy analysis, iron and steel smelting



Cement, limestone



Product parameter

Test object	Coal ash, coking coal, raw coal, etc.
Range of element	Na—U
Sample room size	304×368×78mm（L×W×H）
Sample weight range	0-2.5KG
Cover open	Automatic
Mainframe size	570×400×400mm（L×W×H）
Mainframe weight	64KG
X-ray tube	High power side window X-ray tube
Voltage	Up to 50kV
Current	Maximum 1mA
Cooling Method	Air cooling
Detector	SDD
Test environment	Air mode、Helium mode、Vacuum mode
Sampling Method	Hand sampling、Autoinjection
Sample Observation	5 megapixel HD industrial camera
PC(CPU)	CPU is I3-7100 with the same main frequency or above
RAM	DDR4 4 GB memory or above
ROM	1TB HDD or 256GB SSD or above
OS	Windows 10
Temperature conditions	10°C~35°C
Relative humidity	40%-70% （No condensation）
Power supply	220VAC
Rated power	600W

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
