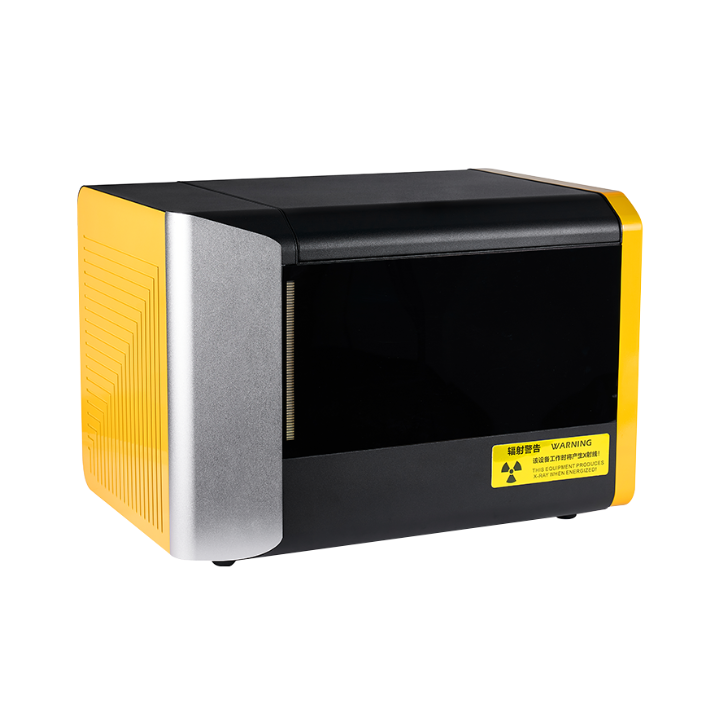

ScopeX Metal Plastics Benchtop XRF Analyzer

The ScopeX desktop XRF analyzer is equipped with highly intelligent software and high-quality hardware, featuring wide linear range, fast analysis, good reproducibility and high accuracy. Sample preparation is simple, sample size and shape can be diverse, and high sample handling capacity can be realized. Suitable for large-scale continuous analysis, process control, product quality inspection and other links, it is an ideal tool for petroleum, coating, precious metals, cement, minerals, metal materials and plastics and other industries.



Advantage

High performance configuration

Low energy X-ray with intelligent vacuum system, Si, P, S, Al, Mg and other light elements have a good excitation effect, XRF technology can be used to analyze the high content of Cr, Ni, Mo and other key elements.



A variety of collimator, filter automatic switch

5mm, 3mm, 1mm, 0.5mm four kinds of collimator, collimator and filter can be automatically switched by the software, save time and effort, through the appropriate combination of collimator and filter can improve the detection accuracy and sensitivity.



Nondestructive testing

Without damaging or affecting the performance of the tested object, the whole test process without any damage.



Peltier refrigeration

Peltier electric refrigeration without liquid nitrogen. Reduce the complexity of the device, and save manpower and equipment maintenance costs.



Data transmission

USB, WIFI, wireless Bluetooth and other methods for data transmission.



User-defined

The file can be in EXCEL, PDF and other formats. Users can customize the test report, including company logo, spectral spectrum and other sample information.



Safety

Fully enclosed metal chassis and leakage protection switch, radiation safety in line with international standards.



Application scenario



Minerals and Mining



Cement and Building Materials



Ceramics, glass and industrial materials



Coal ash, catalyst



Metal material



Petroleum chemical industry



Product parameter

Test object	Solid, liquid, powder
Range of element	Na—U
Sample room size	ScopeX 980CS/ScopeX 980CSR：304×368×78mm（L×W×H） ScopeX 980/ScopeX 980S：365×300×78mm（L×W×H）
Sample weight range	0-2.5KG

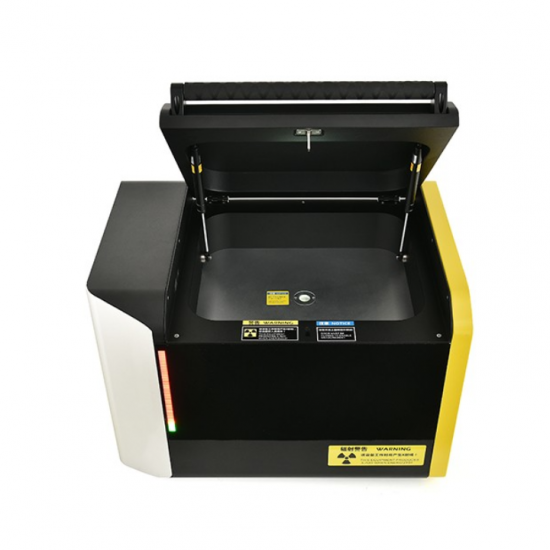

Cover open	Automatic
Mainframe size	570×400×400mm（L×W×H）
Mainframe weight	ScopeX 980CS/ScopeX 980CSR：64KG ScopeX 980/ScopeX 980S：47KG
X-ray tube	High power side window X-ray tube
Voltage	Up to 50kV
Current	Maximum 1mA
Cooling Method	Air cooling
Detector	SDD
Test environment	Air mode、Helium mode、Vacuum mode
Sampling Method	Hand sampling、Autoinjection
Sample Observation	5 megapixel HD industrial camera
PC(CPU)	CPU is I3-7100 with the same main frequency or above
RAM	DDR4 4 GB memory or above
ROM	1TB HDD or 256GB SSD or above
OS	Windows 10
Temperature conditions	10°C~35°C
Relative humidity	40%-70% （No condensation）
Power supply	220VAC
Rated power	ScopeX 980/ScopeX 980S:100W ScopeX 980CS/ScopeX980CSR:600W
