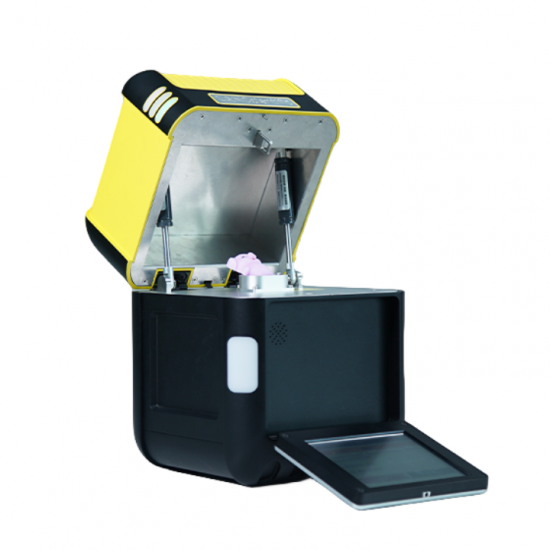

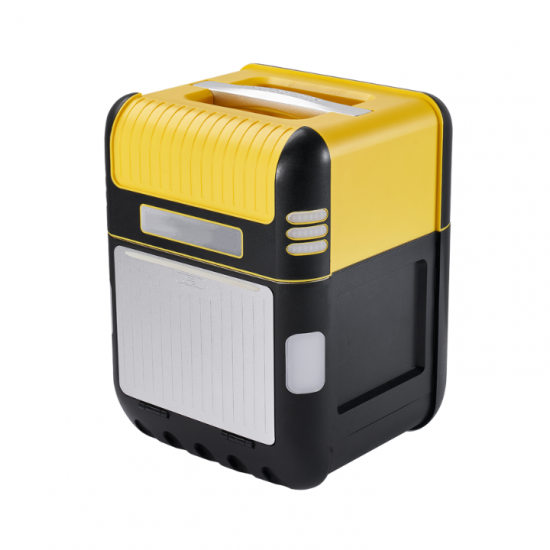

Industrial Portable Halogen Free Consumer Goods Analyzer for Manufacturers Raw Materials and Recyclers

The PeDX CSA halogen-free analyzer can quickly and efficiently detect lead Pb, Cd, As, Hg, Crand other toxic metals in consumer products such As toys, clothing and electronic equipment in compliance with RoHS regulations. It is the ideal tool for manufacturers, raw materials and recyclers.



Advantage

One-click intelligent operation

The whole analysis process can be completed in just a few seconds. The operation is simple and even non-technical people can easily use it.



Easy customization

On the basis of testing, it provides a variety of custom Settings. You can change test conditions according to detection needs, or change thresholds according to screening needs, so as to realize personalized screening of different materials and elements.



Multiple forms of data output

Analytical data reports can be made in PDF format or Excel format. When exporting data in Excel format, you can also confirm and edit the data in detail in the table. Users can also create customized professional reports, including company logo, company address, test results, spectrogram and other sample information (such as product description, origin, batch number, etc.).



Accurate and reliable qualitative and quantitative methods

It integrates advanced algorithms such as super-FP algorithm and correction curve method of LANScientific's front, making the instrument not only faster, higher accuracy and stronger consistency of measurement.



Application scenario



Products controlled by RoHS directive

 large household appliances, small household appliances, information technology and communication equipment, power tools, toys and other equipment



Halogen-free products controlled by the directive

products with flame retardants containing Cl, Br and other elements as raw materials



ELV instruction screening analysis

various mechanical parts structure analysis and coating thickness, chemical synthesis outer film adhesion amount detection



Product parameter

Weight	4.1KG
Size	200×200×268mm（L×W×H）
Size of Sample Room	170×130×60mm（L×W×H）
Excitation source	Up to 50kV, 200uA X-ray tube, upper excitation power 4W, Ag/Rh target
Detection Range	Mg—U
Detector	BOOST Si-pin/SDD Detector
Operation System	Based on the I. MX 6 Quad， quad-core Cortex-A9 processor Dedicated analytics operating system, 32GB of system memory
Power Supply	Intelligent battery with MSBUS can directly check the remaining capacity of the battery. The battery complies with the transport regulations of dangerous goods by air A single battery can work for about 8 hours
Target	W/Ag/Rh(Optional)
Resolution	<136eV
Operating Ambient Temperature	-20℃~50℃
Operating Ambient Humidity	10%~90% relative humidity, non-condensing
Display	5.7-inch absorbable color touch screen display
Test Time	User customize
Optional	Built-in 5 million pixel high-definition camera
language	Chinese, English, etc.
