Precious Metal Industrial Benchtop Gold Silver Purity Analyzer

Precious Metal Industrial Benchtop Gold Silver Purity Analyzer

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-Metal
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

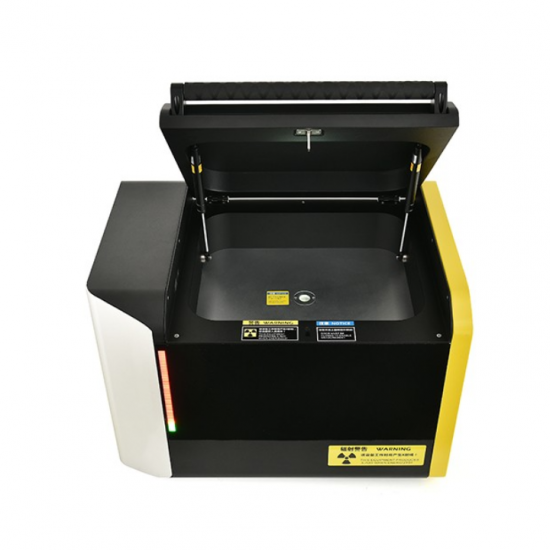

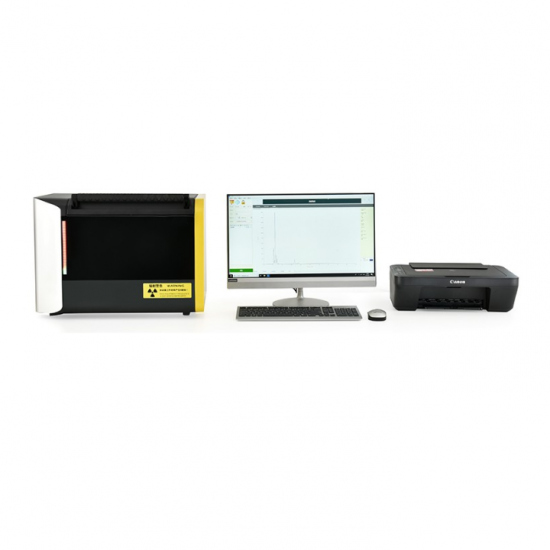

Precious Metal Industrial Benchtop Gold Silver Purity Analyzer


Metal Analyzer




The ScopeX GOLD Precious Metal Analyzer provides rapid and easy determination of Au,  Ag, Pt, Pd)and rare precious metals such as Os. Equipped with a variety of collimators and oversized sample chambers, the ScopeX GOLD Precious Metal Analyzer can be used for a wide variety of items and can be used to measure small individual parts on the items. Such as connectors, buttons, inserts and gemstones, etc., are ideal tools for gold and silver purity marking centers, gold refineries, smelters and testing laboratories.



Advantage

Accurate and Reliable Quantitative Method

LITH international XRF analysis software, integration correction curve method, fundamental parameter method (FP) and other analysis methods, the accuracy of the test data performance is fully guaranteed.



Simple and Intuitive

It can accurately depict and analyze the spectrogram, and has the spectrogram contrast function, which can quickly detect the possible change of the material composition and reduce the risk.



Easy Customization

On the basis of the built-in template, it provides a variety of customized options, which can realize the personalized filtering of different materials and elements according to the threshold value and decision string required by the filtering.



Facilitate Management

With hierarchical permission management, operators can log in to the system using different user names and passwords, thus binding test reports to testers. Various test report output formats (Excel, PDF, etc.), and can be customized test report content to meet different test data management requirements.



X-ray tube Aging Automatically

After the X-ray tube has been idle for a period of time, its internal vacuum degree will be reduced. If it is used directly without aging, the X-ray tube will be damaged. LITH is equipped with X-ray tube auto-aging function in the software to protect the equipment and minimize the effort required for device maintenance.



Application scenario





Inspection of incoming materials, process abrasives, recycled materials and finished products of the jewelry factory





Detection of recycled components of precious metals/gold products of banks





Finished product inspection of the gold store and jewelry recycling component inspection





Assessment of pawn value of precious metals and jewelry in pawnshops





Laboratory and college teaching of gold, silver and precious metals testing institutions



Product parameter

Range of element

Na—U

Sample room size

365×300×78mmL×W×H

Maximum sample weight

0-2.5KG

Cover open

Automatic

Mainframe size

570×400×400mm

Weight

47KG

X-ray tube

High power side window X-ray tube

Voltage

Up to 50kV

Current

Maximum 1mA

Cooling method

Air cooling

Type

Si-pin/SDD(Optional)

Test environment

Air mode, Vacuum mode(optional), Helium mode (optional)

Sample Observation

5 megapixel HD industrial camera

CPU

 is I3-7100 with the same main frequency or above

RAM

DDR4 4 GB memory or above

ROM

1TB HDD or 256GB SSD or above

OS

Windows 10

Temperature conditions

10°C~35°C

Relative humidity

40%-70% No condensation

Power supply

220VAC

Rated power

100W









 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
