Product Details

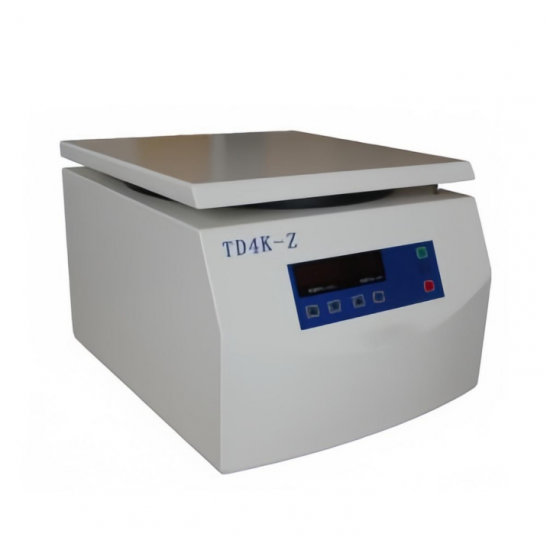

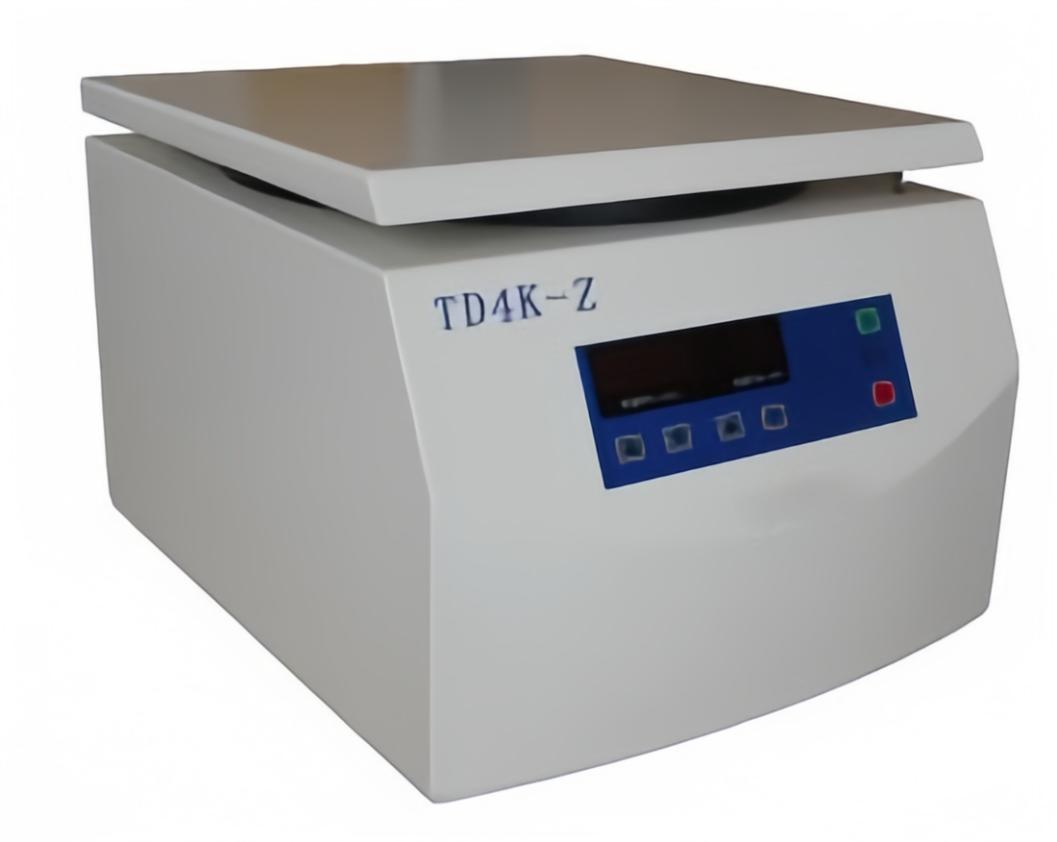

Lab Intelligent Benchtop Low Speed Automatic Balancing Centrifuge

Product characteristics

1) Drive: Brushless DC motor drive, maintenance-free, large torque, fast lifting speed, special combination shock absorber to make the motor run smoothly, low vibration, low noise, meet the requirements of environmental protection.

2) Display: Intelligent control, touch panel, intuitive digital display.

3) Fuselage: Fuselage adopts high-quality steel structure, stainless steel centrifugal chamber.

4) Safety protection: Mmute motor, integrated electronic lock.

5) Safety protection: It has multiple protection functions such as door cover, overspeed and imbalance, and is equipped with electronic door lock to ensure safe and reliable operation process.

6) Application: Applicable to biochemistry laboratory, hospital clinical test, etc.

Performance parameter

Model number	TD4K-Z
Maximum speed	4000r/min
Maximum relative centrifugal force	2200×g
Maximum capacity	6×50ml
Angle rotor	24×10ml(4000r/min)RFC:2200×g
Angle rotor	6×50ml(4000r/min)RFC:2200×g
Angle rotor	12×10/15ml(4000r/min)RFC:2200×g
Angle rotor	18×10ml(4000r/min)RFC:2200×g
Timing range	0～99min
Electric machine	Brushless DC motor, microcomputer control
Power source	AC 220V 50Hz 3A
Overall dimension	430×340×250mm
Weight	20kg
