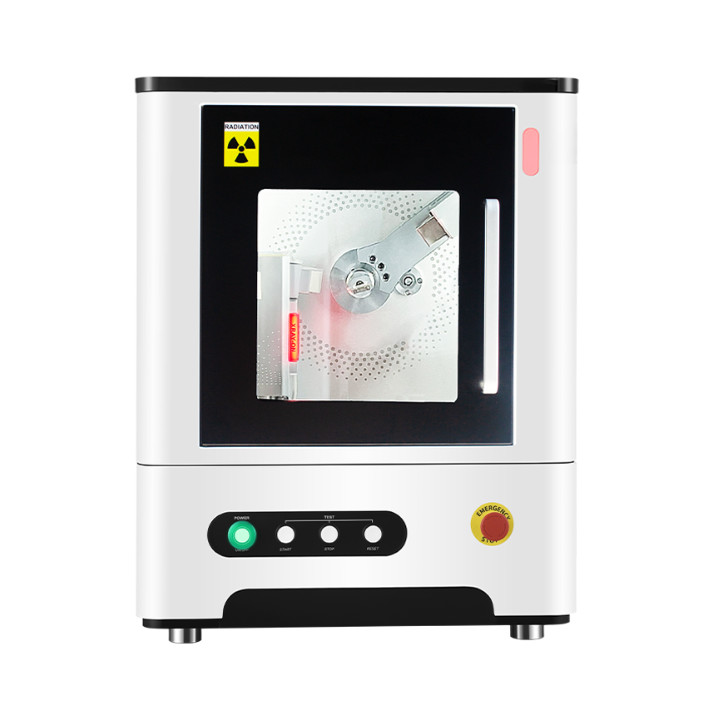

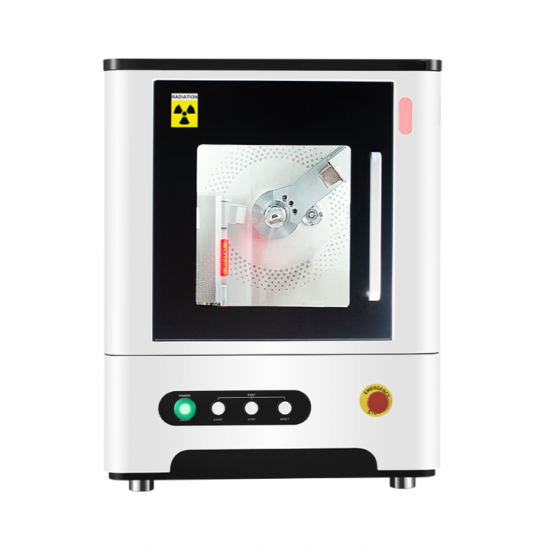

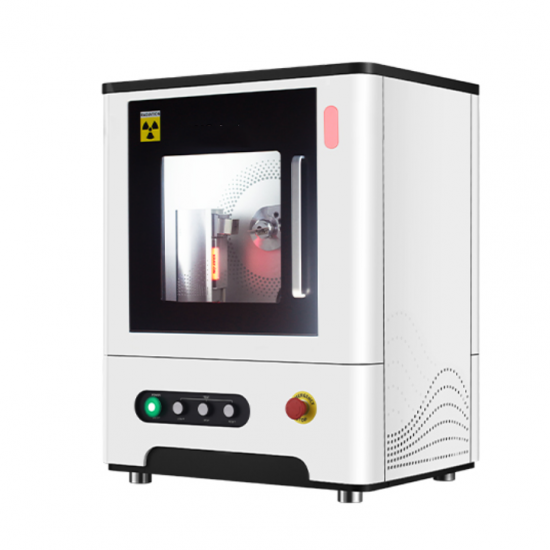

X Ray Industrial Benchtop Desktop Cement Diffractometer

Patented new θ-2θ coupling linkage angle measuring system, single-axis drive mechanism, concise and simple, determined to be extraordinary.



FRINGE CLASS Benchtop X-ray diffractometer is a desktop X-ray diffractometer independently developed by LITH., which integrates XRD, XRF, computer software and other technologies. It can quickly conduct qualitative and quantitative analysis, crystal structure analysis, material structure analysis and crystallinity determination for powder, block or thin film and other forms of samples. It has the characteristics of high precision, high accuracy, good stability, wide application range, simple operation and intelligence. For materials research, universities and research institutes, building materials, metals, minerals, plastics, pharmaceuticals, semiconductors and many other fields provide high precision analysis.



Advantage

Air spring large window lift door

Air spring large window lift door not only save desktop space,but also  suitable for each desk,and effectively improve space utilization rate.



Built-in water circulation cooling system

FRINGE CLASS built-in water circulation cooling system, no need to add additional chiller. Software can real-time display the X-ray tube water temperature, flow, flow rate and other information.



Safety

It has automatic cutting protection device in the test process, safety linkage lock device, the sample chamber is fully enclosed after closing, and the operation interface has the function of closing the sample chamber.



XRD for everyone

After obtaining diffraction data, CrystalX automatically carry out phase analysis, and give the percentage of each component of the phase, greatly reducing the requirements of the user, just need to click "start testing", the rest to the CrystalX software.



Integrated sola slits

The integrated sora slits, without any motion-adjustable parts, increase the reliability of the goniometer system, allowing the FRINGE CLASS desktop XRD to be installed on in-vehicle laboratory platforms.



DPPC detector

Digital multi-channel analysis technology can distinguish diffraction peak and fluorescence interference without monochromator, and improve diffraction intensity.



Application scenario



Titanium dioxide



Alumina powder



Graphitization degree



Ceramic material



Asbestos material



Cement



Pharmaceutical analysis

For example, determination of montmorillonite powder, API crystal form analysis of API, etc



Talc



Other fields

Product parameter

Goniometer	θ-2θ vertical goniometer, diffractive circle radius 150mm
Angle measuring range of Angle meter	-3° - +150°
Precision	The  deviation of ＜±0.02° in the full spectrum
FWHM	<0.04°2θ
Sola slit	The integrated sora slits, without any motion-adjustable parts, increase the reliability of the goniometer system, allowing the FRINGE desktop XRD to be installed on in-vehicle laboratory platforms
X-Ray Tube	Cermet X-ray tube, focus: 1 x 10 mm, default configuration cu target, optional Co, Cr, Mo target
X-Ray Tube Power	600W
Size	580 x 450x 680mm（L×W×H）
Weight	120KG
Power Supply	220V±10V, 50Hz, the whole power is 1000W
Heat dissipation	FRING CLASS has a built-in water circulation cooling system, no need to add additional chillers. The software can display the water temperature, flow rate and other information in the X-ray tube in real time
Detector	DProportional counter, SDD detector (optional)
Interface	The compact home wall plug provides power, and the USB interface connects to the PC for controlling the XRD
Scanning speed	0.01 - 120˚/min
Air source	A 2-way air supply interface is available for in-situ analysis or atmosphere protection
Security	The FRINGE CLASS has an air spring large window lift door, which can observe the in-situ analysis process without dead angle, and can effectively shield X-rays. It has a protection and safety interlock device that automatically cuts off during the test process. The operation interface has the function of closing the sample compartment
Cloud service capabilities	FRINGE CLASS uses a synchronizable mobile APP service to support card management of diffraction data and access to knowledge management systems
CrystalX software	TMAX has developed a special crystal analysis software CrystalX for FRINGE CLASS. After obtaining diffraction data, CrystalX automatically conduct phase analysis, and give the percentage of each component of the phase, greatly reducing the requirements of the user, no manual retrieval, no need to buckle the background, no need to smooth, no need to manually peak, just need to click "start testing", the rest to the CrystalX software
