Industrial Portable Mineral Rocks Edition X Ray Diffractometer

Portable X-ray diffractometer (Mineral & Rocks Edition) is a portable X-ray diffractometer specially developed for mineral phase analysis in the field. It integrates XRD, XRF and computer software and other technologies, which can quickly conduct qualitative and quantitative analysis, crystal structure analysis, material structure analysis and crystallinity determination of mineral samples. It has the advantages of fast testing speed, low price and high precision.



It in the X-ray beam through the sample position using transmission geometry technology, micro focus X-ray tube emission X-ray beam through the collimator irradiation powder particles in the sample pool, unique vibration system allowed more of the crystal powder particles were exposed to X-ray beam when meet the Bragg's law on CCD acquisition by the diffraction phenomenon of diffraction pattern. The sample size in the sample pool is fixed, so changes in sample density do not affect the resolution. This feature is especially important for low-density materials, such as drug samples, where higher resolution can be achieved with fixed penetration compared to instruments based on reflective geometry.



Advantage

Portable

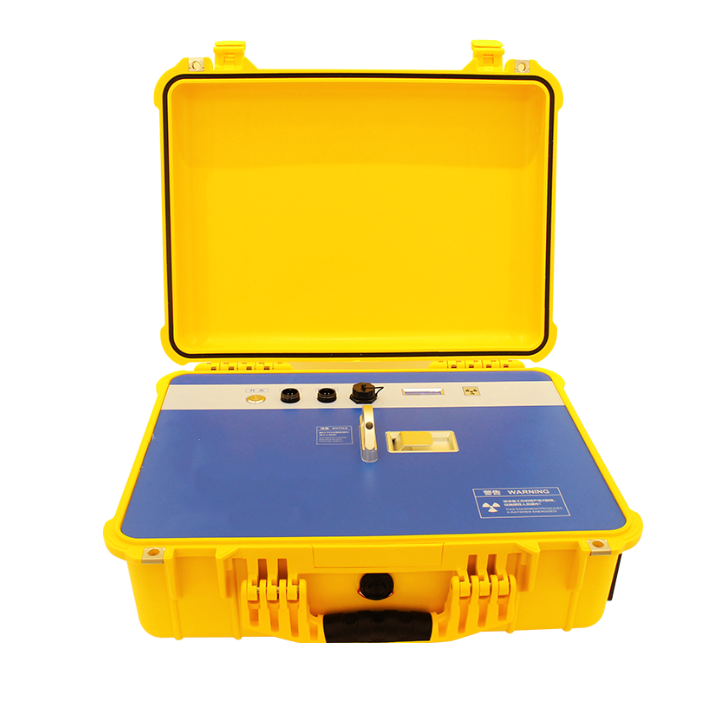

The instrument adopts waterproof and dustproof box all-in-one machine design, without any mechanical moving parts, light and compact, easy to carry, can freely conduct laboratory/field field scientific research.

Integration

XRD and XRF technology integration, in each test, can simultaneously collect XRD and XRF X-ray photon data, provide material composition, phase and structure information, so as to promote more accurate test results.

Simplicity

Instrument one-key operation, no correction, automatic detection, no extra attention to the high pressure system and water circulation cooling system (instrument without additional high pressure and water circulation cooling system).

Sample preparation is simple

A single analysis only needs about 20 mg of samples to obtain high-quality test results, sample preparation without making, pressing, scraping equality, 3 minutes to complete sample preparation (crushing, screening, sample loading).

Data transmission

The instrument through USB, Bluetooth, WIFI and laptop computer to achieve high-speed connection, real-time SHINE instrument control and phase analysis.

Good environmental adaptability

Specially developed for geological investigation, the instrument can be fog-proof, dust-proof, shock-proof, can adapt to the bad use environment.

Safety

Professional multiple protective radiation treatment, measuring instrument without any radiation leakage in all directions.

Application scenario



Geological exploration/Track ore deposit



Mineral research, grade identification

Lithium ore, beryllium ore grade analysis, etc.



Tailings recycling and reuse



Mineral smelting and manufacture

Titanium dioxide, fluorite, etc.



Product parameter

XRD resolution	0.2°@2θ FWHM
Scope of XRD	5-55°2θ
The detector	2000 X 256 pixel, 2d, level 3 Pelter refrigeration CCD
X-ray tube target	Cluster microfocal spot X-ray tube, Cu or Co, Cr, Fe, Ni, Mo, Ag, W target (optional according to test sample)
X-ray tube voltage	Maximum 50kV, 0-50kV adjustable
X ray tube power	Maximum 50W, 0-50W adjustable
XRF energy resolution	127eV@8keV
XRF detection range	Mg—U
Cooling Method	Air Cooling
Sample particle size	Sample particle <150um (100 mesh sieve)
Sample weight	about 20mg
Working temperature	-10°C-35°C
Weight	15KG
The power supply	Lithium ion battery or power adapter
Size	50×40×18.8cm（L×W×H）
CrystalX analysis software language	Chinese, English and other languages
