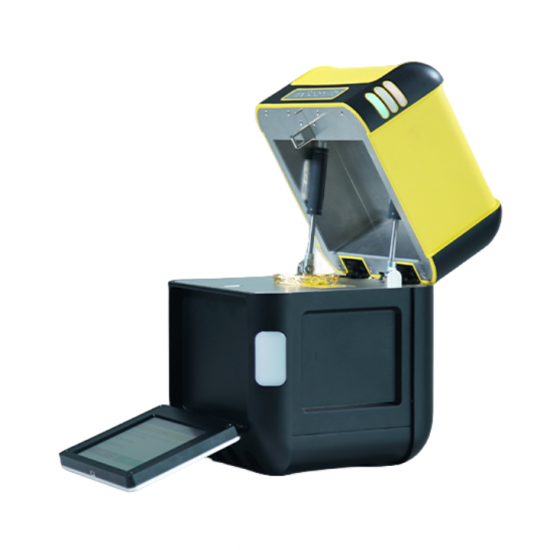

Industrial Portable Precious Metal Purity Analyzer


Consumer Goods Analyzer






The PeDX GOLD Precious Metal Analyzer has become a widely used, popular and reliable method for determining the elemental composition and purity of precious metals. Compared with other testing methods, using an analyzer to analyze precious metals is a faster and more economical method of nondestructive testing. It can be used for on-site Karat identification of gold, identification of gold-plated samples, and accurate analysis of the chemical composition of platinum, silver and other precious metal alloys.



Advantage

One-click intelligent operation

The whole analysis process can be completed in just a few seconds. The operation is simple and even non-technical people can easily use it.



Easy customization

On the basis of testing, it provides a variety of custom Settings. You can change test conditions according to detection needs, or change thresholds according to screening needs, so as to realize personalized screening of different materials and elements.



Multiple forms of data output

Analytical data reports can be made in PDF format or Excel format. When exporting data in Excel format, you can also confirm and edit the data in detail in the table. Users can also create customized professional reports, including company logo, company address, test results, spectrogram and other sample information (such as product description, origin, batch number, etc.).



Accurate and reliable qualitative and quantitative methods

It integrates advanced algorithms such as super-FP algorithm and correction curve method of LANScientific's front, making the instrument not only faster, higher accuracy and stronger consistency of measurement.



Application scenario





Inspection of incoming materials, process abrasives, recycled materials and finished products of the jewelry factory





Detection of recycled components of precious metals/gold products of banks





Finished product inspection of the gold store and jewelry recycling component inspection





Assessment of pawn value of precious metals and jewelry in pawnshops





Laboratory and college teaching of gold, silver and precious metals testing institutions



Product parameter

Weight

4.1KG

Size

200×200×268mmL×W×H

Size of Sample Room

170×130×60mmL×W×H

Excitation source

Up to 50kV, 200uA X-ray tube, upper excitation power 4W

Detection Range

Mg—U

Detector

BOOST Si-pin/SDDOptional

Operation System

Based on the I. MX 6 Quadquad-core Cortex-A9 processor

Dedicated analytics operating system, 32GB of system memory

Data Processing

USB, can connect the device to the Internet, remote setting and maintenance of the instrument

Target

Ag/W/Rh (Optional)

Resolution

<136eV

Operating Ambient Temperature

-20℃~50℃

Operating Ambient Humidity

10%~90% relative humidity, non-condensing

Display

5.7-inch absorbable color touch screen display

Test Time

User customize

Optional

Built-in 5-megapixel HD camera

Lauguage

Chinese, English, etc.









 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
