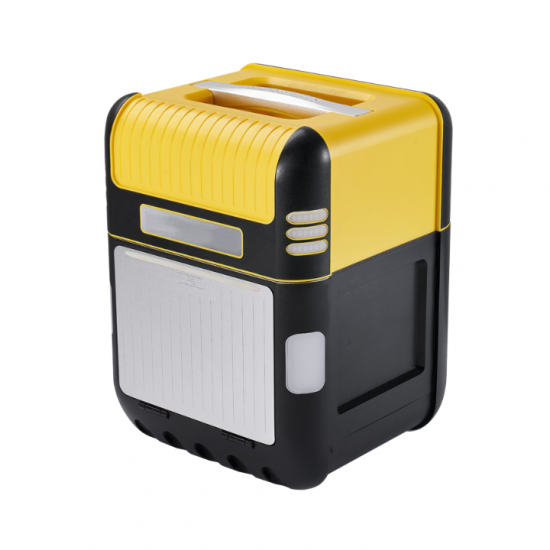

Portable XRF Hydrocarbons Sulphur Oil Analyzer

Product introduction

PeDX OIL is a portable XRF analyzer that provides sulfur analysis methods for the energy industry. It can analysis of lubricating oil, diesel fuel, kerosene, jet fuel, other distillation oil, volatile oil, residual oil, hydraulic oil, crude oil, unleaded gasoline, ethanol gasoline, biodiesel, and other similar elements content in petroleum products such as oil and wear elements, pollutants, and the existence of the sulfur content within a few minutes . Analysis of sulfur content in safe, high-quality liquid, solid or gas samples can be carried out elsewhere where oil products are used.



Advantage

One-click intelligent operation

The whole analysis process can be completed in just a few seconds. The operation is simple and even non-technical people can easily use it.



Easy customization

On the basis of testing, it provides a variety of custom Settings. You can change test conditions according to detection needs, or change thresholds according to screening needs, so as to realize personalized screening of different materials and elements.



Multiple forms of data output

Analytical data reports can be made in PDF format or Excel format. When exporting data in Excel format, you can also confirm and edit the data in detail in the table. Users can also create customized professional reports, including company logo, company address, test results, spectrogram and other sample information (such as product description, origin, batch number, etc.).



Accurate and reliable qualitative and quantitative methods

It integrates advanced algorithms such as super-FP algorithm and correction curve method of LANScientific's front, making the instrument not only faster, higher accuracy and stronger consistency of measurement.



Application scenario

Analysis of sulphur content in Marine Fuels

Petroleum refining industry

Refinery

Oil pipeline

Analysis of Wear Elements/Additives/Hydrocarbons in Oils



Product parameter

Weight	4.1KG
Size	200×200×268mm（L×W×H）
Size of Sample Room	170×130×60mm（L×W×H）
Excitation source	Up to 50kV, 200uA X-ray tube, upper excitation power 4W, Ag/Rh target
Detector	BOOST Si-pin/SDD(Optional)
Operation System	Based on the I. MX 6 Quad， quad-core Cortex-A9 processor Dedicated analytics operating system, 32GB of system memory
Data Processing	Built-in 32GB storage USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Target	W/Ag/Rh(Optional)
Resolution	<136eV
Data Transfer	USB, Bluetooth
Operating Ambient Temperature	-20℃~50℃
Operating Ambient Humidity	10%~90% relative humidity, non-condensing
Display	5.7-inch absorbable color touch screen display
Test Time	User customize
Optional	Built-in 5 million pixel high-definition camera
Language	Chinese, English, etc.
Air mode	Air mode, helium mode, vacuum mode (optional)
