Perovskite Solar Cell Research Equipment Line

Perovskite Based Solar Cell Lab Line Drawer Type Ultraviolet Ozone Cleaning Machine

Perovskite Based Solar Cell Lab Line Drawer Type Ultraviolet Ozone Cleaning Machine

Sales Manager: Gia
Email: Gia@tmaxlaboratory.com
Wechat: Dingqiuna

  • Item No.:

    TMAX-200*200mm
  • Certificate:

    CE Certified
  • Warranty:

    1 Year limited warranty with lifetime support
Product Details

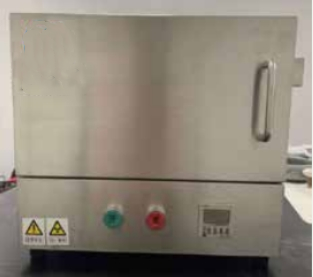

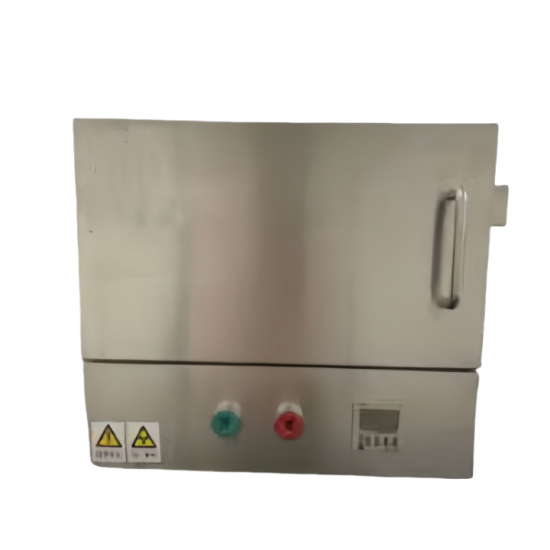

Perovskite Based Solar Cell Lab Line Drawer Type Ultraviolet Ozone Cleaning Machine






Product introduction

a. Structure: Drawer type design, multi-level distance adjustment, to meet different cleaning requirements;

b. Material: Stainless steel material, acid and alkali resistant, corrosion resistant, beautiful and generous

c. Internal exhaust system, rapid ozone discharge, reduce human harm;

d. Widely used in perovskite solar cells, OPVOLED, LCD, substrate, silicon, metal sheet surface organic cleaning and surface modification.



Technical parameter

Lamp tube

German lamp (imported quartz material), life >8000 hours

Power

200W

Operating spectrum

185nm+254nm

Effective area

200*200mm

Cleaning time

0-99min99s, automatic countdown

Irradiation height

30-100mm, pull and insert

Exhaust function

Air extraction system quickly eliminates harmful gases

Distance from lamp 3-5mm

Average light intensity 25~32mW/cm2

Equipment size

Length * width * height =380*340*330

Equipment weight

About 15Kg
