High Speed 4-inch Compact Spin Coater Suitable for Perovskite Solar Cell Research

Sales Manager: Gia
Email: Gia@tmaxlaboratory.com
Wechat: Dingqiuna

Item No.:
TMAX-JW-A5
Certificate:
CE Certified
Warranty:
1 Year limited warranty with lifetime support

Product Details

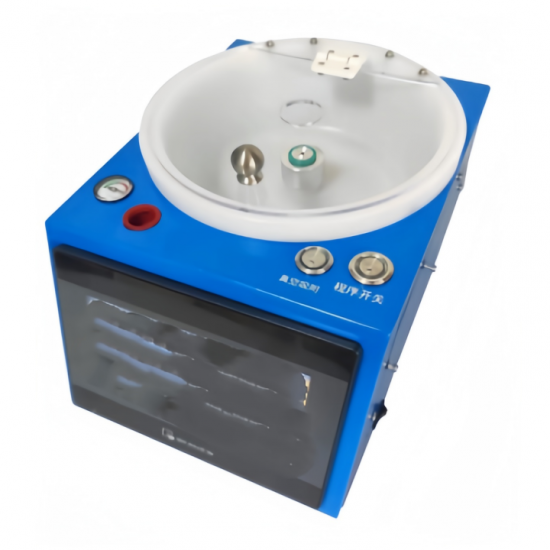

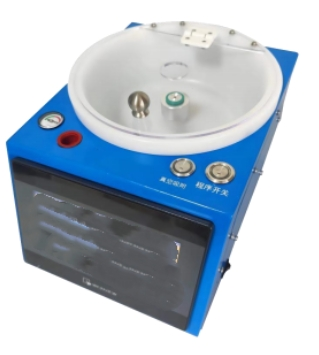

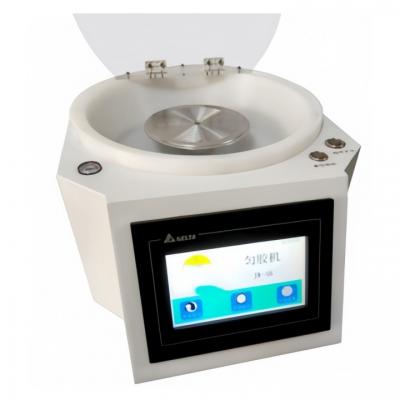

High Speed 4-inch Compact Spin Coater Suitable for Perovskite Solar Cell Research

Product characteristics

a. Compact structure, suitable for direct operation in the glove box;

b. 7-inch full color touch screen, advanced PLC control, set a key start button, easy to operate;

c. Can be single step and multi-step glue operation;

d. Industrial motor, smooth rotation, stable operation;

e. Solvent PC transparent cover;

f. The vacuum pump and the spin coater work synchronously, the spin coater rotates, the vacuum pump starts, the spin coater stops, and the vacuum pump stops;

g. Proprietary anti-blocking design for easy cleaning.

Technical parameter

Overall dimension	335mm(D)x228mm(W)x215mm(H)
Three vacuum chucks are standard	φ10mm chuck (substrate minimum φ10mm maximum φ20mm) φ20mm chuck (substrate minimum φ20mm maximum φ47mm) φ45mm chuck (substrate minimum φ37mm maximum φ55mm)
Speed adjustable range	200-10000RPM
Deceleration adjustable range	300-3000RPM
Speed resolution	1RPM
Rotation time range	1-3000S
Controllable range of acceleration	300-5000RPM
Vacuum input	0.06-0.09Mpa, minimum vacuum flow 15L/Min
Vacuum connection	The outer diameter of the rear panel outlet is 6mm
Power input	220V 150W
Program control	Programmable 5 groups of 5-step programs
