Perovskite Solar Cell Research Equipment Line

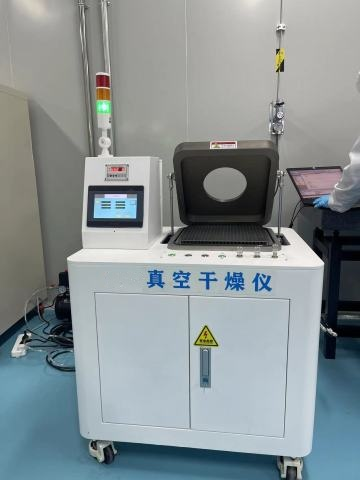

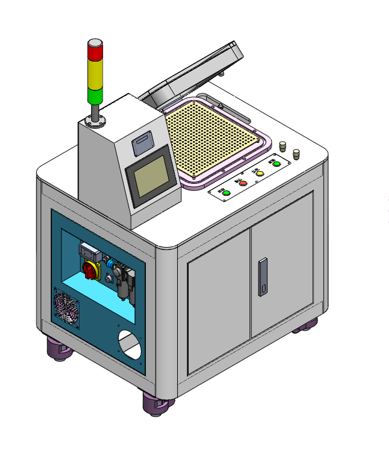

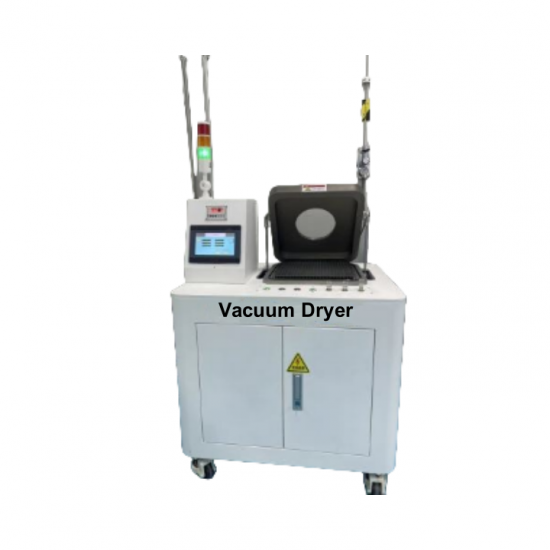

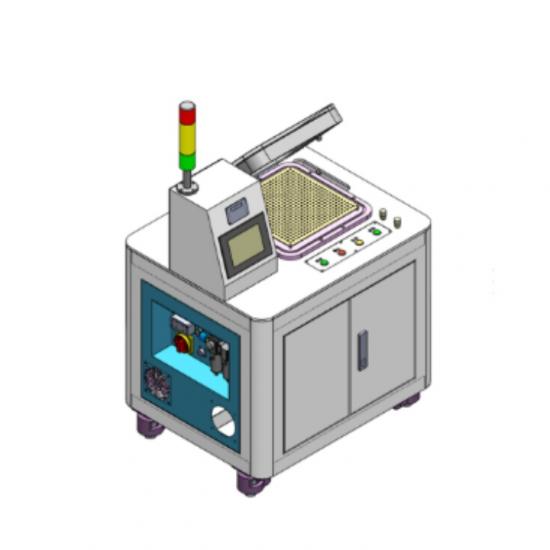

304 Stainless Steel Chamber Vacuum Dryer Machine Equipped with High Power Mechanical Pump

304 Stainless Steel Chamber Vacuum Dryer Machine Equipped with High Power Mechanical Pump

Sales Manager: Gia
Email: Gia@tmaxlaboratory.com
Wechat: Dingqiuna

  • Item No.:

    TMAX-KT-CML300
  • Certificate:

    CE Certified
  • Warranty:

    1 Year limited warranty with lifetime support
Product Details

304 Stainless Steel Chamber Vacuum Dryer Machine Equipped with High Power Mechanical Pump






Product features:

a. Vacuum chamber: 304 stainless steel is used as the chamber to increase the safety and reliability of the chamber, and the cavity cover is left with a window to facilitate the observation of the film forming process; The sealing ring is sealed with fluorine glue to improve the sealing of the chamber.

b. Vacuum system: High power mechanical pump pumping rate can reach 90m3/h, the ultimate pressure can reach 5*10-1Pa.

c. Equipment advantages: Nitrogen pressure, can be set to hold the pressure value and time, can control the pumping speed and pressure relief speed, the whole project nitrogen protection. The sample stand has two heights to accommodate devices of different sizes.



Technical parameter

Cavity material

304 stainless steel

Equipment size

About 800*700*1300mm (length * width * height)

Sample table size

300*300mm

Substrate thickness

1-30mm

Limiting vacuum

≤5*10-1Pa

Vacuum time

15s to 8Pa (maximum pumping speed)

Working power supply

220V

Equipment weight

Approx. 150kg

Equipment power

600W

Vacuum pump brand

Baus

Vacuum pump weight

75Kg

Vacuum pump

Voltage and power 380V/1.1kW

Vacuum pump pumping speed

90m³/h

Measuring range of vacuum gauge

1.0×10-5 - 1.0×10-1Pa
