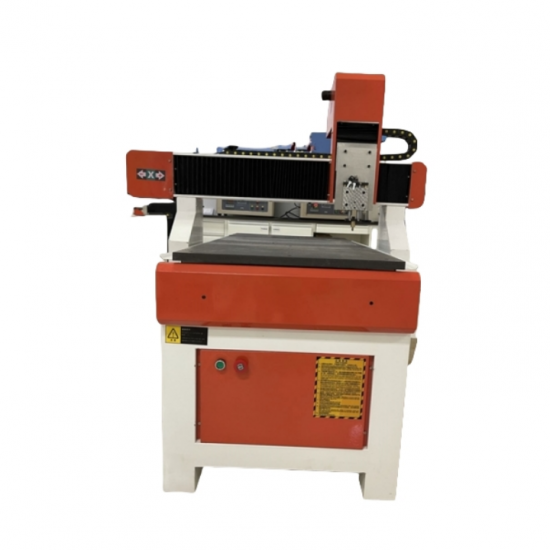

Lab Fast Speed And High Precision Glass Cutting Machine with Five-axis Custom Glass Special Control System

Sales Manager: Gia
Email: Gia@tmaxlaboratory.com
Wechat: Dingqiuna

Item No.:
TMAX-KTSK6090
Certificate:
CE Certified
Warranty:
1 Year limited warranty with lifetime support

Product Details

Lab Fast Speed And High Precision Glass Cutting Machine with Five-axis Custom Glass Special Control System

Equipment description

1) Can cut 0.5mm-10mm

2) High intelligent cutting, greatly improve the glass cutting rate utilization, reduce production costs.

3) Cutting speed 15-40 meters per minute, ultra-thin glass special table, small footprint, simple and safe operation, fast speed and high precision, labor saving, cost-effective, precision welding high-frequency aging bed.

4) Simple operation, easy to manage, no special requirements for operators, a little training can get started.

5) Applicable: architectural glass, automotive glass, furniture glass, craft glass, decorative glass, cabinet glass and other glass cutting operations

6) Round, square, triangle, opposite sex, various shapes, etc.

Technical parameter

No.	Model number	KTSK6090
1	Table structure	Ultra thin glass cutting table
3	Operating orbit	20 square tracks
4	Transmission form	High precision lead screw drive
5	Drive system	2D68MH
6	Drive motor	86BYG450A
7	Control system	Five-axis custom glass special control system
8	Run instruction	G code
9	Repeated positioning accuracy	±0.05mm
10	Maximum empty line speed	50m/min
11	Maximum machining speed	30m/min
12	Operating voltage	220V/50HZ
13	Tool head	Glass knife

Detail presentation
