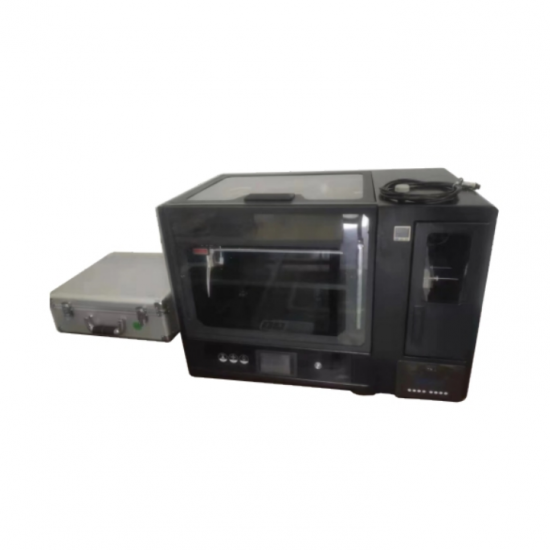

Lab Desktop Ultrasonic Atomization Spraying Instrument for Film Preparation Research of Perovskite Batteries

Product introduction

PT101 series spraying instrument adopts ultrasonic atomization principle to form a highly uniform film on the surface of the sample, which can achieve a slurry utilization rate of more than 95%. The slurry spraying uniformity is high, and the stability and repeatability during preparation are very high. It is widely used in fuel cell electrode, catalyst preparation, and film preparation research and development of perovskite batteries. The program board of the equipment is upgraded, and the movement is more stable; Optimized structure, easy to operate; Fully enclosed draft design, windproof and pollution-free; Nozzle control upgrade, slurry atomization more stable; Program movement can automatically start and stop, save stock; Desktop design, compact and reasonable structure, the size of the machine is only equivalent to an ordinary printer; It is easy to place fume hood, experimental platform and other places, saving space, easy to operate, and very suitable for research and development of research institutes.

Equipment characteristics

1) Support SOLidworks,CAD general format programming import, automatic spraying, high precision.

2) The spraying machine can achieve up to 95% of the slurry utilization rate, can be coated with different viscosity of a variety of materials.

3) High homogeneity of slurry coating can ensure the stability and repeatability of sample preparation.

4) Can be used for catalyst, electron transport, perovskite layer, hole transport layer, C electrode preparation.

5) Desktop design, compact structure, only an ordinary printer size.

6) Built-in work surface 324*238 vacuum adsorption heating platform can reach 120 degrees Celsius.

Technical parameter

Machine	Dimension	700400470	L * W * H
Ultrasonic atomization system	Ultrasonic atomization power	0-30W	Automatic fine tuning
	Spray flow	0.15~6mL/min
	Spray diameter	5-20mm	Specifically related to the nozzle height and feed speed
	Maximum liquid viscosity	50cps
	Suspended particle size	<20μm
	Solids content of suspension	<30%
	Nozzle material	Titanium alloy
	Diversion pressure(Electronic pressure display)	0.01 to 0.1MPa The maximum value cannot exceed 0.2MPa	Adjust according to slurry flow and viscosity
	Ambient temperature (℃)	-20~120
	Nozzle height adjustment	5~20mm
Spray trajectory control	Axis of motion	3 Axis	X，Y，Z
	Maximum spray area	250*150mm	Effective area
	Spray dimensional accuracy	<0.1mm
	Maximum velocity of motion	9m/min	Real-time adjustment
	Control software	KT-P20	Support Solidwords, CAD universal format
Feed system	Pipe bore	1mm	Maximize sizing agent savings
	Pipe material	Polytetrafluoroethylene	High transparency and corrosion resistance
	Joint material	316L stainless steel	High corrosion resistance
	Flow setting range	0.01~5mL/min
	Flow setting accuracy	≤±1.5%
	Maximum spray volume (per application)	50mL
Vacuum heating suction table	Heating temperature control range	Room temperature ~120℃
	Vacuum sucker material	Aluminium alloy
	Dimensions of vacuum sucker	280*180mm
	Horizontal control function	Have	Manually adjustable
Vacuum pump	Power supply	220V，50Hz	An external power supply is required
	Rated power	160W
	Pumping rate	20L/min
	Ultimate pressure	≥0.08MPa	Equivalent to 200mbar
	Noise	＜50DB
