Item No.:
TMAX-4KCertificate:
CE CertifiedWarranty:

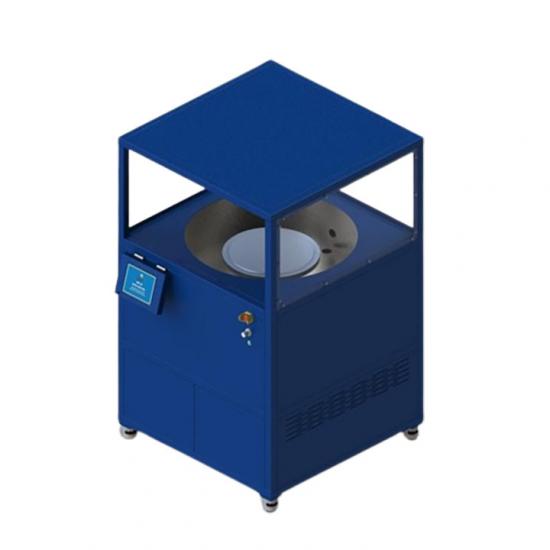

1 Year limited warranty with lifetime supportAcceleration Adjustable Standing Cabinet Type Vacuum Spin Coater with Speed of 50-3000RPM
Key Features:
1. Standing cabinet type glue leveling machine
2. Can support spin coating on substrates up to 450mm.
3. Speed: 50-3000RPM.
4. 8-inch true color touch
Spin Coater Specifications
Substrate size |
200-450mm (standard)/200-600mm( optional) |
Speed range |
50-3000RPM |
Acceleration range |
10- 1000RPM/S |
Motor speed stability |
±1RPM |
Spin coating uniformity |
±1% |
Human machine interface |
8-inch touch screen |
Communication interface |
USB (standard)/RS485 (standard)/Bluetooth (standard) |
Turn around |
Support forward and reverse |
Stylus |
Stylus BAMBOO resistance pen (standard) |
Vacuum Pump |
SC-550V |
Set data |
Unlimited groups of data, each group has 15 speeds (standard) or unlimited speeds (optional) |
Seconds per period |
0- 10000s |
Storage data |
Unlimited data |
Data protection |
default with power-down protection |
Operating voltage(Spin Coater) |
AC100-250V, single phase, 50/60Hz |
Operating voltage(Pump) |
AC220V(Standard) AC110V(Optional) |
Pumping speed |
≥60L/MIN |
Max vacuum |
-85KPA |
Sound Level |
≤55db |
Spin coater power |
5KW |
Pump power |
350W |
Dimensions(Spin Coater) |
1000mm(W)X1000mm(D)X1650mm(H) |
Weight(Spin Coater) |
200KG |
Weight(Pump) |
9KG |
Relative humidity |
< 85% |
Ambient temperature |
0-40℃ |
Warranty |
1 year |
