Perovskite Solar Cell Research Equipment Line

Lab Touch One Button Operation Programmable Sealing Machine with 400*400mm Lamination Area

Lab Touch One Button Operation Programmable Sealing Machine with 400*400mm Lamination Area

Sales Manager: Gia
Email: Gia@tmaxlaboratory.com
Wechat: Dingqiuna

  • Item No.:

    TMAX-KT-DX4040
  • Certificate:

    CE Certified
  • Warranty:

    1 Year limited warranty with lifetime support
Product Details

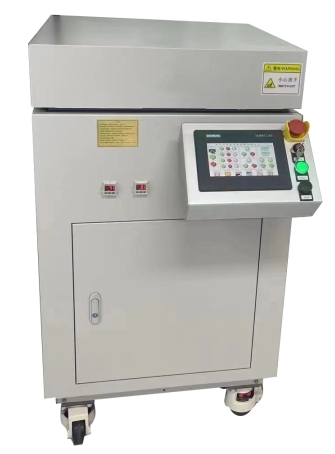

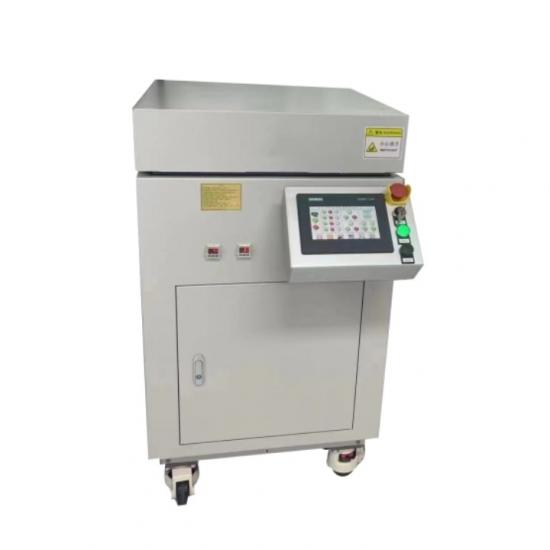

Lab Touch One Button Operation Programmable Sealing Machine with 400*400mm Lamination Area




Equipment characteristics

(1) A newly developed laboratory special equipment, small size and small footprint. Touch one button operation, easy to operate.

(2) with foldable cooling sample table, programmed pressure.

(3) Special aluminum heating plate, good heat conduction effect, heating surface temperature is more uniform. The heat insulation protection strip on the edge of the heating plate ensures that the heat is not lost.

(4) No leakage point, full cover chassis heating design, heating more uniform, faster heating.

(5) Unique safety limit design, during the switch cover, the hand leaves the touch screen, the machine immediately stops.

(6) Imported Siemens PLC, Siemens touch screen, simple engineering mode: can display the number of lamination, can set the operator password, can design the heating temperature.



Technical parameter

Equipment type

KT-DX4040

Lamination area

400X400mm

Overall dimension

640*825*1100mm(without touch screen)

Equipment weight

About 350kg

Power source

220V

Gross power

3Kw

Heating method

Electric heating

Operating power consumption

2Kw

Maximum temperature

200 ℃

Temperature uniformity

±2℃

Operating temperature

70~180 ℃

Hot pressing thickness

25mm(max)

Table unevenness

Roughness≤300μm/m2

Working vacuum

20-200pa

Compressed air pressure

0.6-0.8 MPA

Curing time

6-8 min(Adjustable)

Vacuum time

2-6min(Adjustable)

Hot pressing time

2-4min(Adjustable)
