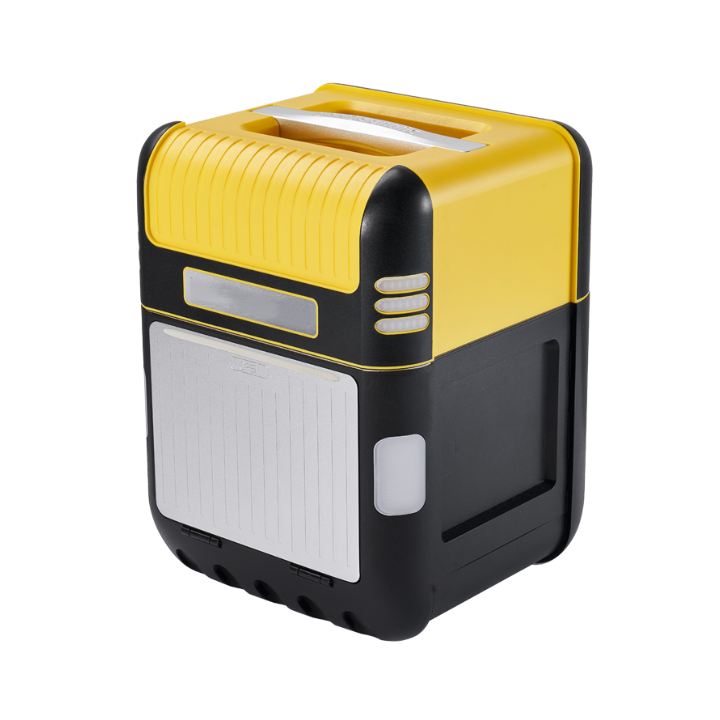

Industrial PeDX Portable XRF Analyzer

PeDX is a portable X-ray fluorescence (XRF) analyzer designed by TMAX according to the analysis needs of users. It has the advantages of portability, fast analysis speed, good stability and high accuracy. It is mainly used in waste recycling, environmental assessment, consumer product safety, metal materials, metal jewelry, petrochemical industry, geological and mineral exploration and other fields, providing value judgment basis for product trade, processing, quality testing, safety audit and recycling in these fields.



Advantage

One-click intelligent operation

The whole analysis process can be completed in just a few seconds. The operation is simple and even non-technical people can easily use it.



Easy customization

On the basis of testing, it provides a variety of custom Settings. You can change test conditions according to detection needs, or change thresholds according to screening needs, so as to realize personalized screening of different materials and elements.



Multiple forms of data output

Analytical data reports can be made in PDF format or Excel format. When exporting data in Excel format, you can also confirm and edit the data in detail in the table. Users can also create customized professional reports, including company logo, company address, test results, spectrogram and other sample information (such as product description, origin, batch number, etc.).



Accurate and reliable qualitative and quantitative methods

It integrates advanced algorithms such as super-FP algorithm and correction curve method of TMAX's front, making the instrument not only faster, higher accuracy and stronger consistency of measurement.



Application scenario



Alloy applications

Positive Material identification , QA/QC, waste sorting



Environmental assessment

soil detection, solid waste detection



Consumer compliance and safety screening

RoHS compliance screening



Geology and Chemistry

mineral exploration, ore detection



Precious metal detection

jewelry/precious metal identification, automobile catalyst detection



Oil analysis

detection of wear metal in oil



Product parameter

Weight	4.1KG
Size	200×200×268mm（L×W×H）

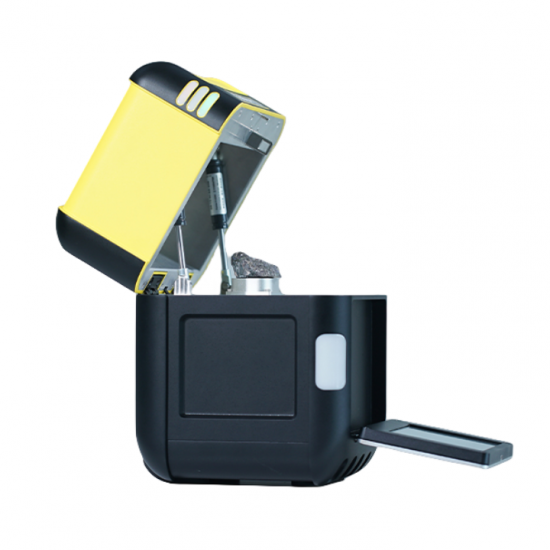

Sample Room Size	170×130×60mm（L×W×H）
Excitation Source	Up to 50kV, 200uA X-ray tube, upper excitation power 4W, Ag/Rh target(Optional)
Detector	BOOST Si-pin/SDD(Optional)
Detection Range	Mg—U
Data Processing	Built-in 32GB storage USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Air mode	Air mode、Helium mode、Vacuum mode(Optional)
Safety	Built-in X-ray protection (automatic cut-off) Safety interlock, can only open the instrument under the condition of power (closed performance) Radiation indicator light
Resolution	<136eV
Operating ambient temperature	-20℃~50℃
Operating ambient humidity	10%~90% relative humidity, non-condensing
Display	5.7-inch absorbable color touch screen display
Test Time	User customize
Optional	Built-in 5-megapixel HD camera
Language	Chinese, English, etc.
