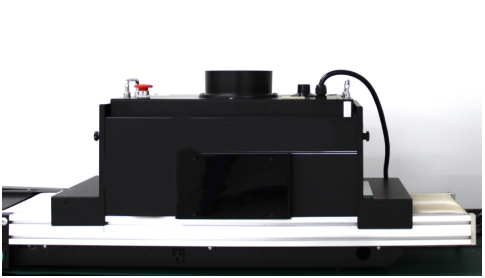

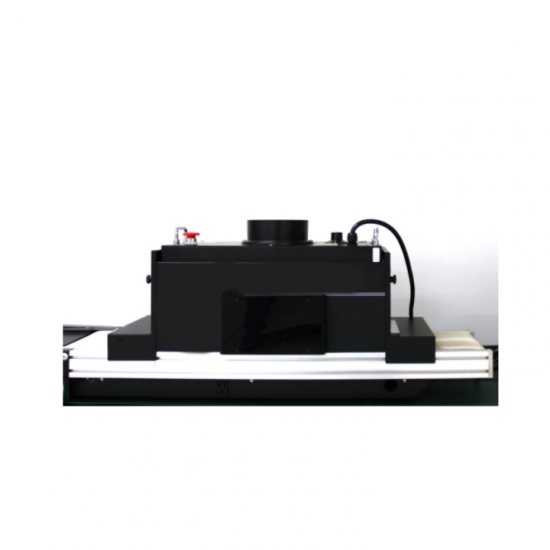

Net Belt UV Curing Machine with Speed Adjustable for Perovskite Solar Cell Assembly Line

Sales Manager: Gia
Email: Gia@tmaxlaboratory.com
Wechat: Dingqiuna

Item No.:
TMAX-KT-XL8250F
Certificate:
CE Certified
Warranty:
1 Year limited warranty with lifetime support

Product Details

Net Belt UV Curing Machine with Speed Adjustable for Perovskite Solar Cell Assembly Line

Equipment description

The UV curing package is a back-font type package by dispensing glue on the device and then completing the package through the principle of ultraviolet curing. The advantages of this package are that the curing glue does not contact the surface of the film, so as to avoid the reverse reaction between the curing glue and the film affecting the performance of the device. At the same time, the curing glue will not affect the device when it is irradiated by ultraviolet light. And the package can effectively avoid the contact between the device and the external environment, so as to improve the stability of the device. The automatic dispensing system ensures uniformity and consistency in large-area packaging, which is conducive to the curing package of the device.

Technical parameter

Net belt UV curing machine	KT-XL8250F
UV lamp power	1000W
UV illumination (Max.)	60-80mW/cm2（80mm height）
Main wavelength of UV light	365nm
Lamp life	1000H
Maximum size of cured sample	230mm
Conveyor belt adjustable speed	0.6M/min - 5M/min
Conveyor belt height	20-110mm
Weight	35Kg
Fuse wire	15A
Machine size	L* W* H=1130mm285mm3800(height adjustable)
