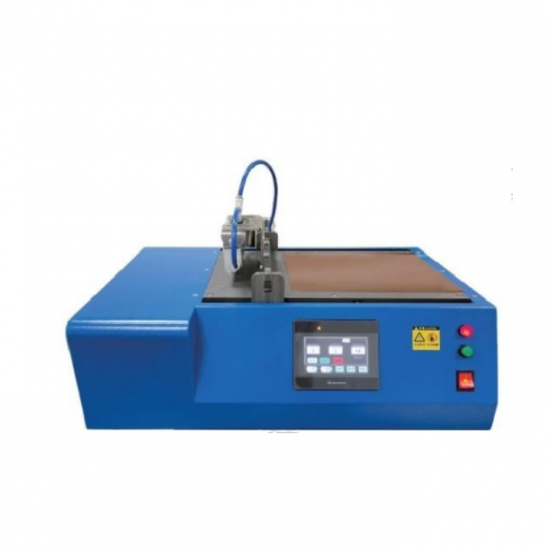

Desktop Automatic Scraping Coating Equipment with Air Knife And High Precision Inlet Coating Head

Sales Manager: Gia
Email: Gia@tmaxlaboratory.com
Wechat: Dingqiuna

Item No.:
TMAX-KT-Z150
Certificate:
CE Certified
Warranty:
1 Year limited warranty with lifetime support

Product Details

Desktop Automatic Scraping Coating Equipment with Air Knife And High Precision Inlet Coating Head

Product characteristics

Specially developed for the laboratory, a high-precision vertical coating equipment has the characteristics of fast preparation speed, film formation and good uniformity, especially suitable for the preparation of 5-20cm perovskite battery modules in the laboratory, as well as the preparation of fuel cells, OLED and other devices, easy to clean, easy to save and easy to operate, good film formation and other advantages. Vacuum adsorption at the bottom heating belt, in situ film formation assisted by air knife, and high precision inlet coating head.

Technical parameter

Substrate thickness	1-3mm
Solution viscosity	0.8-10000cps
Layer thickness	5-100μm (Wet film)
Coater accuracy	5μm
Film width	60-200mm(Optional）
Coating speed	1-100mm/s
Heating platform	The maximum temperature of the platform is 150℃, and the temperature uniformity is ±2℃
Electricity	220V@50Hz Max. 2.5KW
Equipment size	L* W* H=620380210mm(without air knife height)
Air knife	Air inlet on three sides, uniform air outlet, good auxiliary film forming performance
