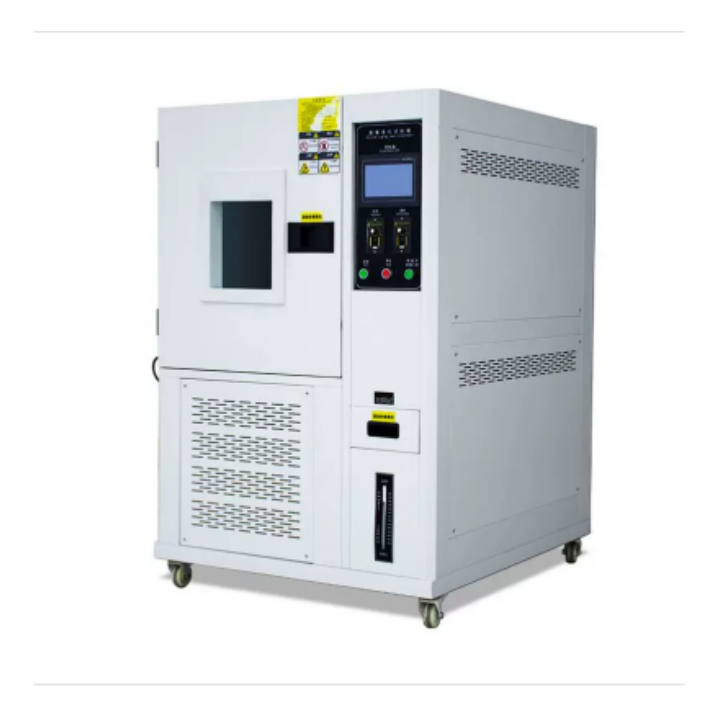

Multi-segment Programmable Ozone Aging Test Chamber with 1000pphm Ozone Concentration

A. Product overview

This series of ozone aging test chambers is designed to test the significant impact of ozone on the aging of rubber. Ozone can attack the carbon-carbon double bonds of artificial rubber and cause cracks on its surface. Rubber parts such as insulated cables, seals and tires will be damaged as a result, thereby shortening their service life.



B. Performance index

Note: Performance determined after stabilization at an ambient temperature of 25℃ without test load.

1.Temperature range: 0～70℃

2. Temperature fluctuation: ±0.5℃

3. Uniform temperature: ±2.0℃

4. Temperature accuracy: 0.01℃

5. Ozone concentration: 50-1000pphm

6. Ozone fluctuation: ±5pphm

7. Time setting: hours/minutes

8. Test method: Static



C. Box structure

1. Inner box dimensions: W500×H600×D500mm

2. Outer box dimensions: approximately W1100×H1650×D1150mm

3. Inner box material: Stainless steel plate

4. Outer box material: Stainless steel plate

5. Equipment box door: Single-piece door, the door opens on the left, and the handle is on the right

6. Sample storage rack: Stainless steel storage rack

7. Observation Window: A transparent observation window on the front of the machine body.

8. Test object: 1 stainless steel PT 100Ω platinum resistor

9. Insulation materials: High-efficiency polyurethane foam + glass rock wool



D. Control system

1. Touch control: TEMI touch screen programmable controller

2. Program setting: Multi-segment programming is possible

3. Time unit: M/H can be freely set

4. Curve recording: The test conditions are recorded throughout the process and the curves are saved

5. Screen display: PV/SV values are directly displayed

6. Date setting: You can make an appointment for the test

7. Temperature measurement device: PT100 platinum resistance temperature and humidity sensor



E. Refrigeration and heating

1. Compressor: Taikang fully enclosed high-efficiency energy-saving pioneer

2. Refrigerant: DuPont of the United States, using a green and environmentally friendly refrigerant with a zero ozone coefficient

3. Condenser: Air-cooled condenser

4. Evaporator: Finned automatic load capacity adjustment

5. Solenoid valve: Changheng Lusi purple copper switch valve

6. Refrigeration principle: The refrigeration system automatically starts according to the test status

7. Heating device: Stainless steel finned heater

8. Centrifugal fan: Multi-wing fan

9. Air duct structure: Snail-type circulating air duct



F. Power supply configuration

1. Test power supply: AC220V/380V, 50Hz

2. Maximum capacity: 5KW

3. Maximum current: 20A

4. Equipment placement: When placing the box, pay attention to the distance from the wall.

5. Temperature over-rise preventer

6. High-speed loop protector
