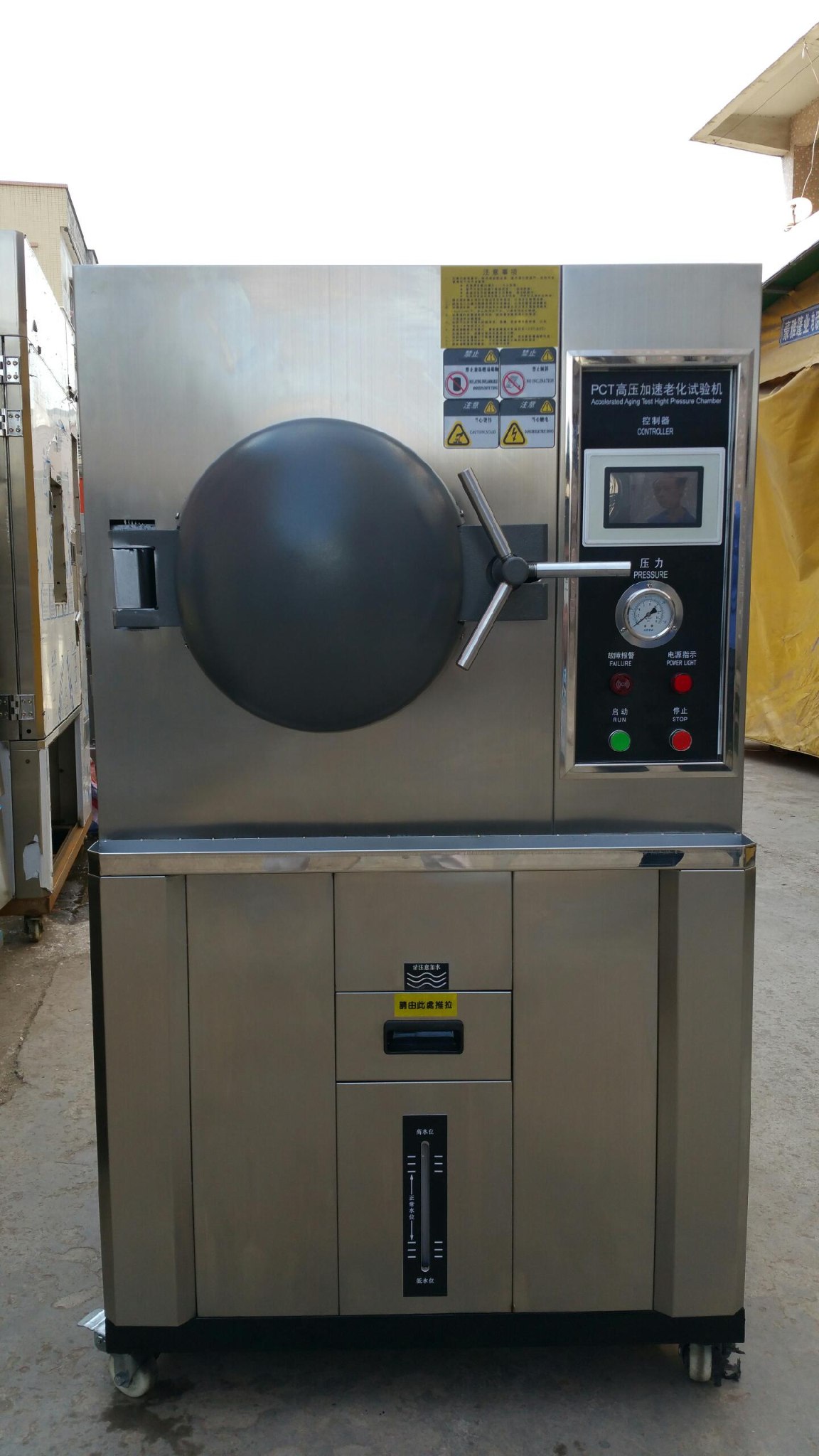

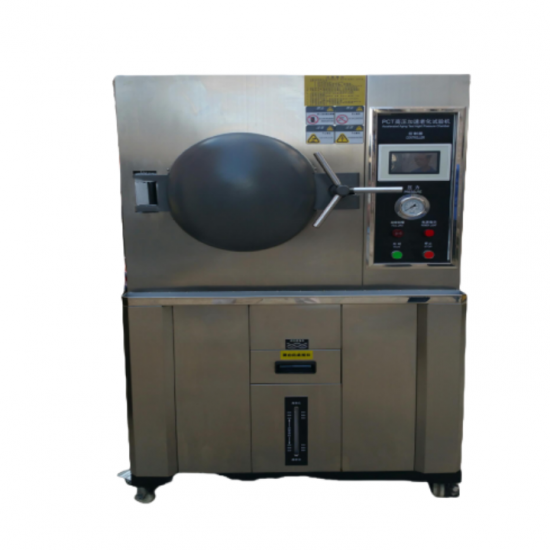

Lab 4KW Programmable PCT High Pressure Accelerated Aging Tester Equipped with Temperature Measurement Device



A. Product overview

This series of PCT high pressure accelerated aging tester are suitable for performance tests of products during storage, transportation and use under high-temperature, high-humidity and high-pressure climatic conditions. They are mainly used to test the physical and other related properties of electrical and electronic products, components, parts, metal materials and their materials under simulated high-temperature, high-humidity and high-pressure climatic conditions. After the test, the performance of the product is determined through verification to see if it meets the requirements.



B. Performance index

Note: The performance measured after stabilization at an ambient temperature of +5 to +25℃ without test load.

In addition, the temperature rise and fall time refers to the performance measured when the power supply voltage is normal and the ambient temperature is +25℃

Temperature range: 100℃～135℃

2. Temperature fluctuation: ±1.0℃

3. Uniform temperature: ±2.0℃.

4. Pressure range: 0～3kg

5. Humidity range :100% saturated humidity

6. Test method: High-pressure cooking test

7. Circulation mode: Natural convection circulation of water vapor



C. Box parameters

1. Inner box size: Φ350×D500mm

2. Outer box size: Based on actual production

3. Inner box material: Stainless steel plate

4. Outer box material: Stainless steel plate

5. Box doors: ①. Single-piece door, ②. Super pressure-resistant sealed door

6. Test subject: DNA specification Grade A, SUS#304L stainless steel PT 100Ω platinum resistor (Taiwan)

7. Insulation materials: High-efficiency polyurethane foam + glass rock wool

8. Heating system: Finned heat dissipation tube shaped stainless steel electric heater

9. Design structure: Circular inner box, stainless steel circular test inner box structure, in compliance with industrial safety container standards



D. Control system

1. Touch control, original TEMI touch screen programmable controller

2. Temperature measurement device: Imported PT100 platinum resistance temperature and humidity sensor



E. Power supply safety

1. Test power supply: AC220V 50Hz

2. Maximum capacity: 4 KW

3. Maximum current: 20 A

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
