50-1000L Lab Programmable Heating Temperature And Humidity Test Chamber with Gloves

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-50-1000L
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

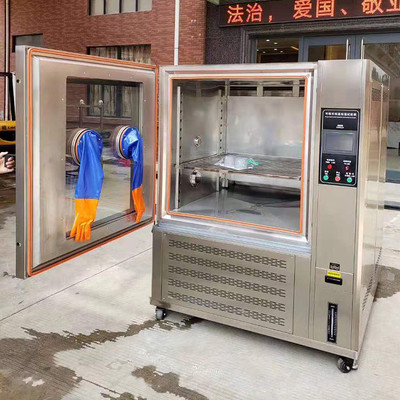

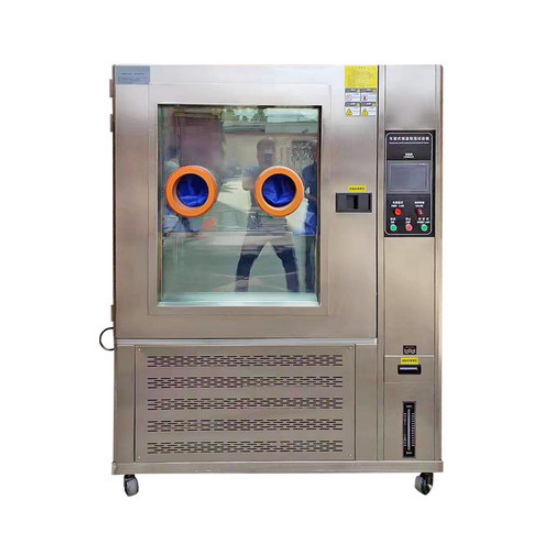

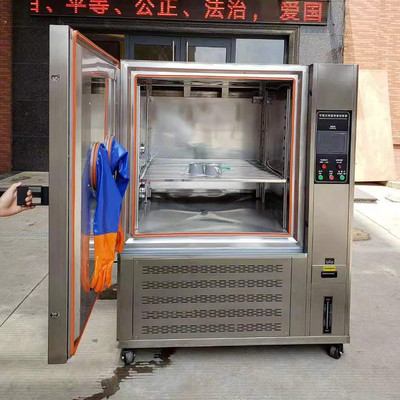

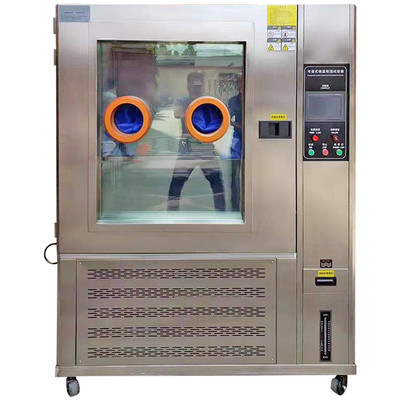

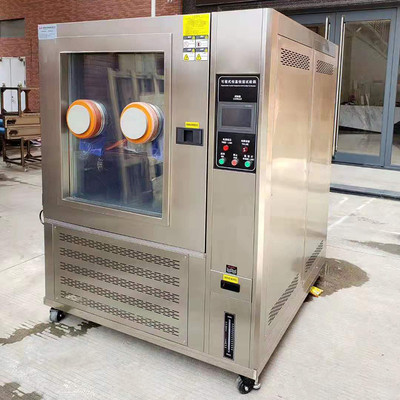

50-1000L Lab Programmable Heating Temperature And Humidity Test Chamber with Gloves

The temperature and humidity test chamber can accurately simulate the complex natural environment of low temperature, high temperature, high humidity, low temperature and low humidity, which is suitable for the product detection of plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials and other industries.

Chamber volume	Chambersize(LxWxH)	Temperature range	Humidity range
50L	350x450x350	0℃~150℃	20~98%R.H
80L	400x400x500	-20℃~150℃	15~98%R.H
100L	400x500x500	-40℃~150℃	10~98%R.H
150L	500x500x600	-60℃~150℃	30~98%R.H
225L	600x500x750	-70℃~150℃	40~98%R.H
408L	800x600x850	-70℃~180℃	50~98%R.H
800L	1000x800x1000	-20℃~150℃	60~98%R.H
1000L	1000x1000x1000	-40℃~150℃	70~98%R.H
Customized volume available	Customized chamber size available	Customized temperature range available	Customized humidity available

Specification

Model		TMAX-50L	TMAX-80L	TMAX-225L	TMAX-408L	TMAX-800L	TMAX-1000L
Inner chamber size (CM)		354535	504040	506075	806085	80100100	100100100
Power (- 40 ℃)		4.5(KW)	5.0(KW)	6.0(KW)	7.0(KW)	8.5(KW)	9.5(KW)
Performance	Temperature range	A:-20℃~150℃ B:-40℃~150℃ C:-60℃~150℃ D:-70℃~150℃ E:-70℃~180℃ Customized temperature is available
	Humidity range	20~98%R.H Customized humidity is available
	Fluctuation / uniformity	±1.5℃/±2℃
	Humidity deviation	±3%R.H
	Heating rate	About 1.0~3.0℃/min
	Cooling rate	About 0.5~1.0℃/min
Control system	Controller	"Temi" brand programming temperature instrument, HD real color LCD touch screen
	Accuracy range	Setting accuracy: temperature 0.1 ℃, humidity 1% R.H, Indication accuracy: temperature 0.1 ℃, humidity 1% R.H
	Temperature and humidity sensor	Platinum resistor PT100Ω/MV
	Heating system	Fully independent system, Ni Cr alloy electric heating heater
	Humidification system	External isolation type, all stainless steel shallow surface evaporation humidifier
	Dehumidification system	Adopt the dew point temperature laminar contact dehumidification method of evaporator coil
	Water supply system	Humidification water supply adopts automatic control, and can recover residual water, save water and reduce consumption
	Refrigeration system	French "Tecumseh" totally enclosed air-cooled single-stage or cascade compressor refrigeration mode
	Circulation system	Motors with low noise and temperature resistance - multi blade centrifugal fans
Materials	Outer box material	High quality carbon steel plates. Phosphorized electrostatic spray or SUS304 stainless steel
	Inner box material	Stainless steel high quality mirror plate
	Thermal insulation material	Polyurethane rigid foam / superfine glass fiber wool
	Door frame insulation	Double layer high and low temperature aging resistant silicone rubber door sealing strip
Standard configuration		Multi layer heating defrosting with lighting glass window 1 set, test sample rack 2, test lead hole 1
Safeguard		Leakage, short circuit, overtemperature, water shortage, motor overheating, compressor overpressure, overload, overcurrent protection
Supply voltage		AC220Vor 380V±10% 50±0.5Hz
Operating ambient temperature		5℃~+30℃ ≤85%R.H
