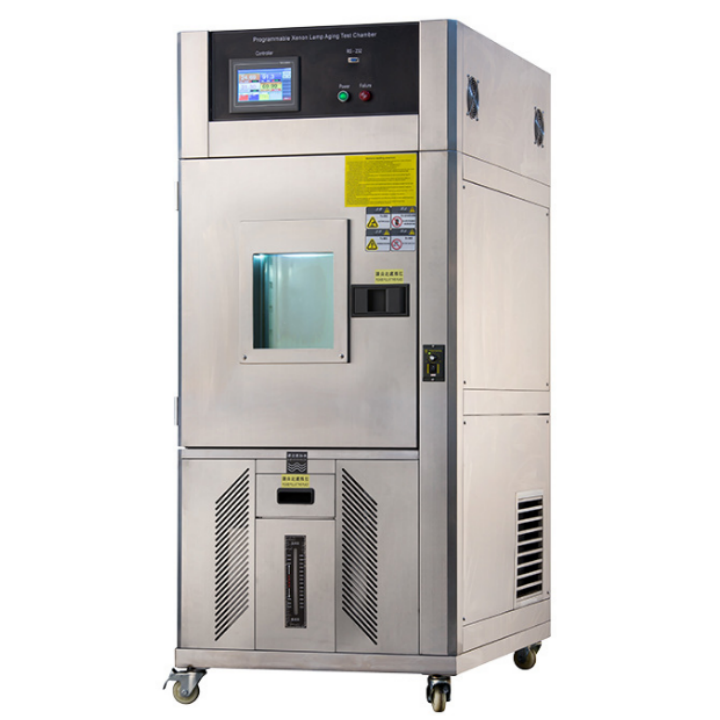

Temperature Adjustable Xenon Lamp Aging Test Chamber Equipped with Stepless Speed Regulator

A. Product overview

This machine adopts xenon arc lamps that can simulate the full spectrum of sunlight, and is equipped with high and low temperature as well as humidity control to reproduce the destructive light waves existing in different environments. It can provide corresponding environmental simulation and accelerated testing for scientific research, product development and quality control. It can be used for the selection of new materials, the improvement of existing materials, or the change test of durability after the composition of materials changes. It can well simulate the changes that occur when materials are exposed to sunlight under different environmental conditions. The light resistance and weather resistance of certain materials under high-temperature light sources are evaluated by conducting aging tests on material samples exposed to the light and thermal radiation of xenon arc lamps.



B. Performance index

Note: Performance measured after stabilization without test load when the ambient temperature is +5~+25℃.

1. Temperature range: 0℃～80℃

2. Humidity range: 30%～95%R.H

3. Blackboard temperature: 63℃, 100℃ (adjustable)

4. Temperature fluctuation: ±1.0℃

5.Temperature uniformity: ±2.0℃

6.Humidity fluctuation: ±2%R.H

7. Window filter: borosilicate glass

8. Xenon lamp light source: air-cooled xenon arc light source

9. Xenon lamp division: top mounted

10. Number of lamps: 1 pc

11. Rainfall time: 1 ~ 9999 minutes, continuous rainfall adjustable

12. Rainfall cycle: 1 ~ 240 minutes, interval (broken) rainfall adjustable

13. Nozzle aperture: Ф0.8mm

14. Rain water pressure: 0.12 ~ 0.15kpa

15. Spray cycle: 18min/102min or 12min/48min

16. Water spray pressure: 0.12 ~ 0.15Mpa

17. Light cycle: continuously adjustable time 0 ~ 999 hours

18. Spectral wavelength: 295nm ~ 800nm

19. Turntable speed: load table rotation speed adjustable (infinitely adjustable speed)



C. Box structure

Inner box dimensions: W500*D500*H600mm

2. Outer box size: Based on the actual model

3. Inner box material: The inner wall material of the laboratory is high-grade anti-corrosion stainless steel

4. Outer box material: Brushed stainless steel, with a reasonable structural design

5. Equipment insulation: High-efficiency, high-density polyurethane foam.

6. Light source top box: The top is a light source box, which is open for convenient maintenance and repair of the lamp tube

7. Silicone sealing: Utilizing sealing materials and a unique silicone sealing structure, it offers excellent sealing performance

8. Box door structure: Single door. The hardware accessories such as door locks and hinges are of high quality

9. Circulating air duct: The air duct inside the box adopts a double circulation system to increase the air flow



D. Control system

1. Controller: TEMI true-color touch screen control display interface

2. Light source illumination: Uniform light radiation is achieved through top-mounted lamp tubes

3. Rain test function: Once the time is set, it will automatically simulate a rain test

4. Turntable speed regulation: Equipped with a stepless speed regulator for speed adjustment

5. Program Setting: Programmable control, program groups can be freely set

6. Program Editing: Multi-segment programming is available, and multiple segments can be run in series



E. Refrigeration system

1. Compressor: The French brand Tecumseh, a fully enclosed and highly efficient iron warrior

2. Refrigerant: DuPont of the United States, using green and environmentally friendly refrigerant

3. Condenser: Air-cooled condenser (specially customized)

4. Evaporator: Finned automatic load capacity adjustment

5. Expansion system: Refrigeration system with capillary tube capacity control

6. Solenoid valve: American Changheng Luosi purple copper switch valve

8. Oil separator: Danish Danfoss screw type



F. Power supply configuration

Test power supply: AC380V, 50Hz

2. Maximum capacity: 8KW

3. Maximum current: 30A

4. Grounding protection

5. Overload and short-circuit protection

6. Over-temperature and water shortage protection
